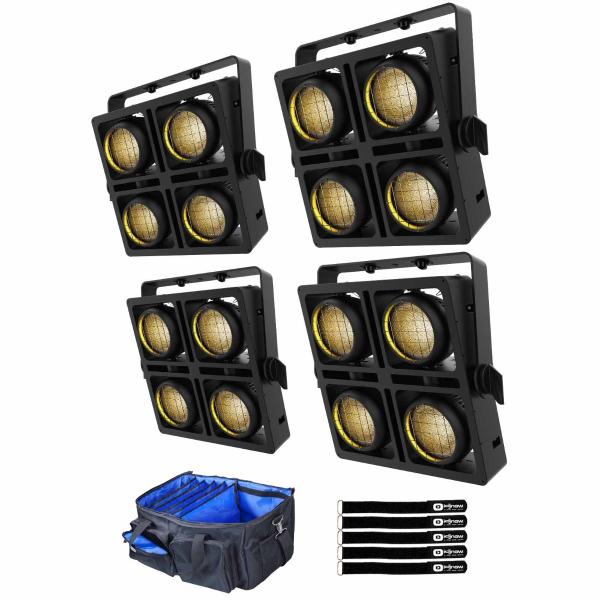

Chauvet Professional STRIKE Array 4 Intense IP65-Rated 4 Pod Blinder/Strobes 4 Package with Utility Storage/Transport Bag
Reg.
$8,032.94
Now
$7,163.40
You save
$869.54
Reg.
You save
In Stock | Free Shipping
Key Highlights
- Intense 4 pod blinder/strobe rated IP65 for all-weather use.
- Emulated "red shift" to mimic incandescent fixtures perfectly.
- Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output.
- Innovative interlocking system to connect multiple Strike Array 4s and Strike Array 2s together.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|
STRIKE Array 4 is an electrifying outdoor-ready audience blinder with four high-power warm white LEDs housed in independently focusable pods. An emulated "amber shift" warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 4 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder - giving you a streamlined truss mounting process.
Chauvet Professional STRIKE Array 4 Blinder/Strobe Features:
- Intense 4 pod blinder/strobe rated IP65 for all-weather use.
- Emulated "red shift" to mimic incandescent fixtures perfectly.
- Individual pan (or tilt depending on mount orientation) of each head to allow for directional adjustment of light output.
- Innovative interlocking system to connect multiple Strike Array 4s and Strike Array 2s together.
- Multiple mounting locations and repositionable yoke with 1/4 turn adaptors for creative and convenient rigging options.
- 16-bit dimming control for smooth, perfect fades.
- Strobe functionality for high-impact effects on the fly.
- Easy to use OLED display.
- Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility.
Chauvet Professional STRIKE Array 4 Product Specifications:
Optical:
Light Source: 192 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy
Light Source: 20 LED (Amber) 2.63 W, (.758 A), 50,000 hours life expectancy
Color Temperature (at full): 2770 K
CRI: 93.2
TLCI: 91
Beam Angle: 61.5°
Field Angle: 100.5°
Illuminance (total): 684 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
Dynamic Effects:
Dimmer: Electronic
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Construction/Physical:
Dimensions: 18.5 x 16.7 x 6.3 in (470 x 424.5 x 161 mm)
Dimensions (shipping size): 20.7 x 8.5 x 19.3 in (525 x 215 x 490 mm)
Weight: 28.7 lb (13 kg)
Weight (shipping weight): 33.1 lb (15 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Connections:
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Control:
Control Protocol: DMX, RDM
DMX Channels: 1, 3, 4, 5, 6, or 10
Electrical:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 100 V; 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V; 12 units @ 240 V
Power and Current: 243 W, 2.44 A @ 100 V, 60 Hz [9.0 A inrush]
Power and Current: 241 W, 2.01 A @ 120 V, 60 Hz [10.8 A inrush]
Power and Current: 244 W, 1.18 A @ 208 V, 60 Hz [14.2 A inrush]
Power and Current: 245 W, 1.07 A @ 230 V, 50 Hz [12.8 A inrush]
Power and Current: 247 W, 1.03 A @ 240 V, 50 Hz [12.8 A inrush]
Power and Current (resting): 8 W, .087 A @ 100 V, 60 Hz
Power and Current (resting): 9 W, .083 A @ 120 V, 60 Hz
Power and Current (resting): 17 W, .083 A @ 208 V, 60 Hz
Power and Current (resting): 18 W, .082 A @ 230 V, 50 Hz
Power and Current (resting): 21 W, .084 A @ 240 V, 50 Hz
Certifications/Qualifications:
CE, MET, FCC, ETL, cULus
IP Rating: IP65, temporary outdoor/wet use
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
This Package Includes:
(4) Chauvet Professional STRIKE Array 4 Intense IP65-Rated 4 Pod Blinder/Strobes
(4) Seetronic Powerkon IP65 Cables
(4) Omega brackets with mounting hardware
(1) Clutch CL-CADDY200 Utility Storage/Transport Bag
(5) 8" Reusable Hook and Loop Cable Ties
