(4) Chauvet Professional Ovation E-260WW Warm White Ellipsoidal Reflector Style Spotlights with 19° Lenses Package
SKU
OVATIONE260WW-4-19
Special Price $6,506.40 Regular Price $7,277.14
Item Backordered
Expected December 31, 2024
Ovation E-260WW is powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.
Chauvet Professional Ovation E-260WW Features at a Glance:
- Warm or cool white ERS style fixture with output exceeding a tungsten 750 W source.
- Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
- Flat, even field of light for superior gobo projection.
- RDM (Remote Device Management) for added flexibility.
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera.
- Virtually silent operation for use in studio and theatre applications.
- Works perfectly with industry standard lens tubes and accessories.
Chauvet Professional Ovation E-260WW Specifications:
Optical
- Light Source: 1 LED (WW) 230 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 198 W, (3.5 A), 5452 K, 50,000 hours life expectancy
- Color Temperature (at full): (WW) 3149 K; (CW) 5452 K
- CRI: (WW) 96; (CW) 96
- Beam Angle (w/14° lens): 11°
- Beam Angle (w/19° lens): 13°
- Beam Angle (w/26° lens): 16°
- Beam Angle (w/36° lens): 20°
- Beam Angle (w/50° lens): 28°
- Beam Angle (w/15°–30° lens)(Narrow): 12°
- Beam Angle (w/15°–30° lens)(Wide): 14°
- Beam Angle (w/25°–50° lens)(Narrow): 21°
- Beam Angle (w/25°–50° lens)(Wide): 22°
- Field Angle (w/14° lens): 14°
- Field Angle (w/19° lens): 18°
- Field Angle (w/26° lens): 25°
- Field Angle (w/36° lens): 34°
- Field Angle (w/50° lens): 50°
- Field Angle (w/15°–30° lens)(Narrow): 15°
- Field Angle (w/15°–30° lens)(Wide): 29°
- Field Angle (w/25°–50° lens)(Narrow): 26°
- Field Angle (w/25°–50° lens)(Wide): 46°
- Dimming Modes: 4
- Lumens (w/19° lens): (WW) 7,587; (CW) 9,530
- Lumens (w/26° lens): (WW) 10,284; (CW) 13,368
- Lumens (w/36° lens): (WW) 10,121; (CW) 13,184
- Lumens (w/50° lens): (WW) 9,655; (CW) 12,672
- Illuminance (w/14° lens): (WW) 13,439 lux @ 5 m; (CW) 16,787 lux @ 5 m
- Illuminance (w/19° lens): (WW) 9,256 lux @ 5 m; (CW) 10,674 lux @ 5 m
- Illuminance (w/26° lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m
- Illuminance (w/36° lens): (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5 m
- Illuminance (w/50° lens): (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5 m
- Illuminance (w/15°–30° lens)(Narrow): (WW) 16,827 lux @ 5 m ; (CW) 19,900 lux @ 5 m
- Illuminance (w/15°–30° lens)(Wide): (WW) 10,626 lux @ 5 m; (CW) 10,159 lux @ 5 m
- Illuminance (w/25°–50° lens)(Narrow): (WW) 7,210 lux @ 5 m; (CW) 9,219 lux @ 5 m
- Illuminance (w/25°–50° lens)(Wide): (WW) 3,295 lux @ 5 m; (CW) 3,468 lux @ 5 m
- Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Zoom: Manual
- Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
- Dim Modes: 4
- Built-in Automated Programs: Yes
- Color Temperature Presets: (CW) No
Construction / Physical
- Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
- Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
- Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
- Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
- Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
- Weight (fixture only): 15.4 lb (7 kg)
- Weight (w/14° lens): 20.8 lb (9.43 kg)
- Weight (w/26° lens): 19.4 lb (8.80 kg)
- Weight (w/15°–30° lens): 29.4 lb (13.34 kg)
- Weight (w/25°–50° lens): 27 lb (12.25 kg)
- Exterior Color: Black
- Gobo Size (Optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
- Gobo Size (Optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
- Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
- Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
- Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
- Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)
Connections
- Power Connection: Edison (Local) plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Data Connectors: 3- and 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: (WW) DMX; (CW) DMX, RDM
- DMX Channels: 1, 2, 3 or 6
- Modes/Personalities: 4 personalities (1, 2, 3, 6)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: (WW) 8 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; (CW) 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
- Power and Current: (WW) 209 W, 1.7 A @ 120 V, 60 Hz; (CW) 225 W, 1.86 A @ 120 V, 60 Hz
- Power and Current: (WW) 206 W, 1.0 A @ 208 V, 60 Hz; (CW) 234 W, 1.12 A @ 208 V, 60 Hz
- Power and Current: (WW) 204 W, 1.0 A @ 230 V, 50 Hz; (CW) 233 W, 1.02 A @ 230 V, 50 Hz
Certifications / Qualifications
- CE, MET
- IP Rating: IP20, dry location
Required Accessories
- Lens Tube: (WW) 19°, 26°, 36°, 50°
- Lens Tube: 14° (CW), 19°, 26°, 36°, 50°

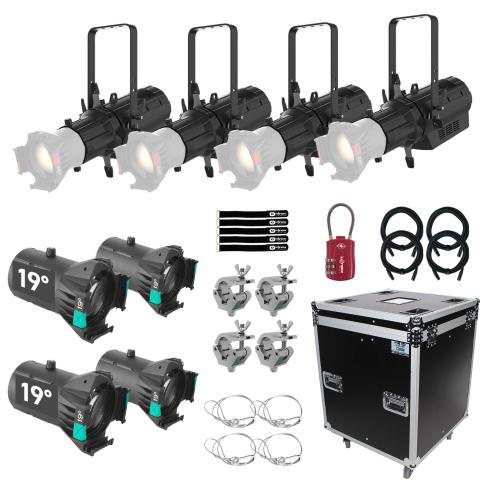

This Package Includes:
(4) Chauvet Professional Ovation E-260WW Warm White Ellipsoidal Refletor Style Spotlights
(4) Neutrik powerCON power cords
(4) Chauvet Professional 19 Degree Ovation Ellipsoidal HD Lens Tubes
(4) Chauvet DJ CH-05 31" Lighting Safety Cables
(4) Global Truss Pro Clamps
(4) Clutch 25' 3-Pin DMX Lighting Cables
(1) ProX XS-SRC4X4W Road Case - fits up to 4 ETC Source Four Fixtures
(1) IDJNOW TSA Combination Lock (red)
(5) 8" Reusable Hook and Loop Cable Ties
