(4) FBT Pro J 5A 5” Powered Monitor Speakers Bundle
About This Product
FBT Pro J 5A 5” Powered Monitor SpeakerThe new J series is a technologically advanced range of products that improves on the performance of the previous Jolly line. The new J series is a competitive, value for money range of speakers.
The range is based on the development of three new high efficiency class-D amplifiers with power specifications of 350 + 100W for the J 15A, J 12A and DJ 15A, 200 + 50W for the J 8A and 80 + 40W for the J 5A.
These amplifiers have been designed ‘from the ground up’ in FBT’s R&D laboratories. The largest amplifier model that equips the J 15A, J 12A and DJ 15A has a switch mode power supply as well as a digital signal processor with 4 pre-sets.
The J 8A and J 5A amplifiers have toroidal transformer power supplies. The J 8A has a digital signal processor with 2 pre-sets, whilst the J 5A has analog signal processing.
The speakers have been completely redesigned, introducing the technological developments of recent years to achieve a far superior efficiency and linearity.
Following from the new J series, FBT bring you the DJ 15A, designed with today’s modern DJ in mind. The DJ 15A has invaluable features allowing quality audio playback using our revolutionary DSP technology. This includes 4 presets enabling the DJ to change the sound of their music to suit the environment they play within.
These DSP presets will allow the DJs audience to enjoy improved sound quality and SPL, especially in bass reproduction at high volume. The DJ 15A also has another useful feature for DJs, including a two channel input mixer allowing the DJ to plug a music source and microphone direct into the speaker, giving separate control over volume for both devices. You can also daisy chain these speaker together if required. Ideal for many application of today’s modern DJ.
J 5A Features:• 130mm (5’’) custom woofer with improved efficiency and linearity.
• 25mm (1’’) neodymium silk dome tweeter with soft compression & phase plug.
• Low noise toroidal transformer power supply.
• On-board analog signal processing with limiter for high SPL and high reliability.
• Available in white colour J 5AW.
• 2-way bi-amplified system in Bass-Reflex2-way bi-amplified system in Bass-Reflex.
• 2 x M6 suspension points.
The new J series is a technologically advanced range of products that improves on the performance of the previous Jolly line. The new J series is a competitive, value for money range of speakers.
• 5’’ custom woofer with improved efficiency and linearity.
• 1’’ neodymium silk dome tweeter with soft compression and phase plug.
• 80W rms class D amplifier for LF and 40W rms for HF.
FBT Pro SJ-5U J5 Monitor Mounting BracketU Bracket for horizontal wall mount U bracket for J5 monitor speaker
FBT Pro J 5A Specifications
Built-in amplifier cont. rms LF/HF: 60 / 30
Built-in amplifier max. rms LF/HF: 80 / 40
Built-in amplifier max. peak LF/HF: 160 / 80
Frequency response @-6dB: 80Hz - 20KHz
Low frequency woofer: 5” - 1” coil
High frequency driver: 1” dome - 0.75” coil
Maximum SPL cont/peak dB: 113 / 117
Dispersion: 90° x 90°
Input impedance: 22 kOhm
Crossover frequency: 3.5
AC Power requirements: 75
Input connectors: XLR combo with loop
Power cord: 16.4FT
Net dimensions (WxHxD) mm: 170 x 275 x 180
Net dimensions (WxHxD) inch: 6.69 x 10.82 x 7.08
Transport dimensions(WxHxD) mm: 240 x 345 x 235
Transport dimensions(WxHxD) Inch: 9.44 x 13.58 x 9.25
Transport weight: 9.25 lb

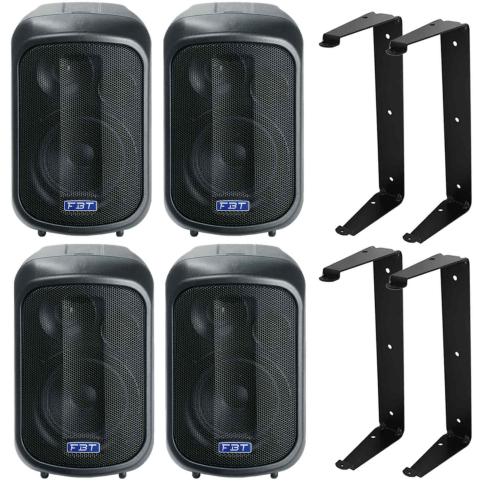

This Package Includes:
(4) FBT Pro J 5A 5” Powered Monitor Speakers
(4) FBT Pro SJ-5U J5 Monitor Mounting Brackets
Each FBT Pro J 5A Box Includes:
(1) FBT Pro J 5A 5” Powered Monitor Speaker
(1) 16.4 FT Power Cord
(1) User Manual
Each SJ-5UW Box Includes:
(1) FBT Pro SJ-5UW J5 Monitor Mounting Bracket
