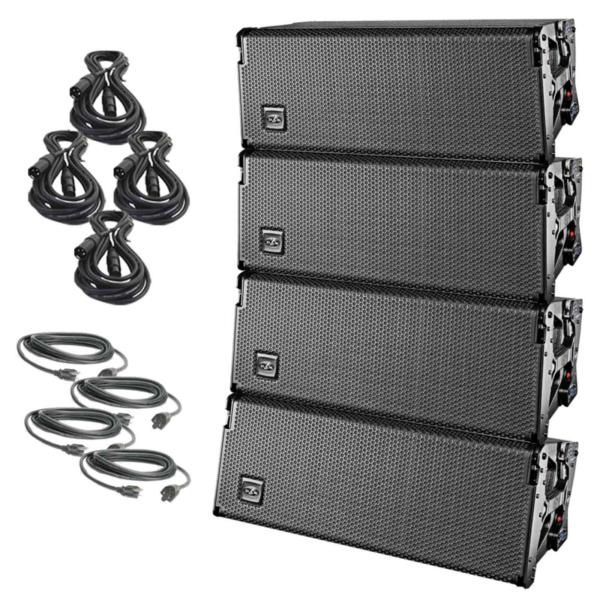

(4) DAS Event 208A Dual 8" Multipurpose Powered Line Array Speakers Bundle
About This Product
DAS Event 208A Dual 8" Multipurpose Powered Line Array SpeakerThe Event 208A Line is a three-way powered line array in a double 8” configuration. The D.A.S. loudspeaker units have been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 208A line array is powered by a three channel Class D amplifier which provides 360 W peak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth.
DAS Event 208A Features:• Powered 3-way system.
• Light-weight Class D amplifier technology.
• High-end DSP chipsets.
• Easy-DSP™ Interface.
• Quality Neutrik® connectors.
• Top grade Birch cabinet construction.
• Durable ISO-flex finish.
• Robust “quick-rig” professional rigging hardware.
• Proprietary injected aluminium HF waveguide (not plastic).
• D.A.S. M-75 compression driver and cone transducers.
DAS AXS-Event 208A Rigging system for Event 208ARigging system for DAS Event 208A Line Array Speakers
DAS Event 208A Specifications
|Nominal HF Amplifier Power||360 Wpeak|
|Nominal MF Amplifier Power||360 Wpeak|
|Nominal LF Amplifier Power||360 Wpeak|
|Frequency Range (-10 dB)||75 Hz -20 kHz|
|Rated Peak SPL at 1 m||132 dB|
|Horizontal Coverage (-6 dB)||90º Nominal|
|Vertical Coverage||Splay Dependent|
|Enclosure Material||Birch Plywood|
|Color/Finish||Black ISO-flex Paint|
|Connectors||INPUT: Female XLR
LOOP THRU: Male XLR
AC INPUT: powerCON
AC OUTPUT: powerCON
|AC Requirements||115 V, 2.4A, 50 Hz/60 Hz
230 V, 1.2A, 50 Hz/60 Hz
|Dimensions (H x W x D)||27 x 67 x 36.6 cm
10.6 x 26.4 x 14.4 in
|Weight||30 kg (66 lb)|
This Package Includes:(4) DAS Event 208A Dual 8" Multipurpose Powered Line Array Speakers
(2) DAS AXS-Event 208A Rigging systems for Event 208A
(4) IDJNow Black 10FT 16 Gauge AC Extension Cords
(4) 20FT Sure-Fit XLR Connecting Cables
Each DAS Event 208A Box Includes:
(1) DAS Event 208A Dual 8" Multipurpose Powered Line Array Speaker
(1) Power Cord
(1) User Manual
Each AXS-Event 208A Box Includes:
(1) Pick-up Bar
(1) Attachment Parts Kit
(2) Safety Pins
