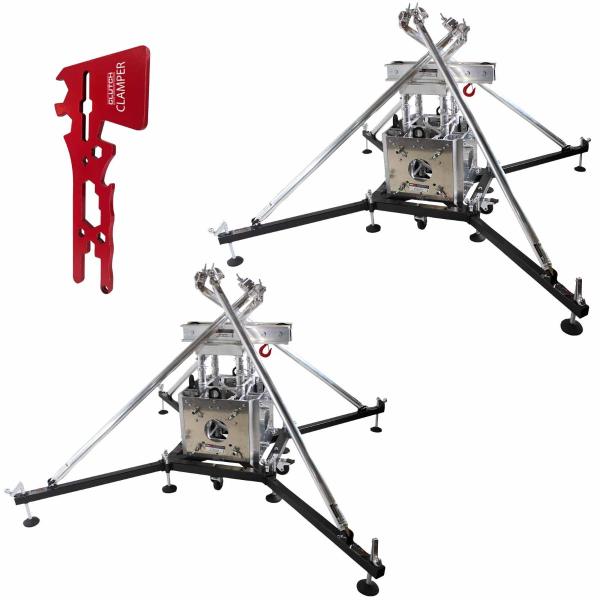

ProX XTP-GSBPACK164 Ground Support Truss Tower Stage Roofing Systems Dual Package with All-In-One Utility Tool for Truss

SKU #: XTP-GSBPACK164-2PK
Reg. $5,639.97
As low as $506/mo or 0% APR with Affirm Logo
Limited Supply - Contact Us

Questions? Call 1-800-355-7746 or Chat below

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The ProX XTP-GSBPACK164 is a full package of four-legged outrigger truss base, with a 4-way square truss junction box sleeve block, on a 1.64' long square truss. Comes complete with the rigging top. In this package, you have everything you need (except for lift hoist) for building and flying a large scale truss to support mid to heavy-grade level stage installations. ProX trussing is a rugged and durable truss solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates and much more to complete your ideas, and to make your design an impressive rigging project or a simple show booth. Always consult an engineer for complex designs. ProX truss products utilize industry-standard dimensions to be compatible with/connect to many other manufacturers' F34 trussing products with conical connectors.

IMPORTANT: Always know your load weight for your equipment. Lift Hoist NOT included.

ProX XTP-GSBPACK164 Ground Support Truss Tower Roofing System Features:

  • Manufactured to Exacting Specifications in ProX's own Factory.
  • Tolerance Free Standard Conical Connectors.
  • Truss Main Tube Wall Thickness of .08in / 2mm.
  • Load Capacity is 1 Ton (2000 lbs) per unit.
  • Material: EN-AWT6 6082 Aluminum and Welded Steel.
  • Painted Black.
  • TUV Certified Aluminum/Steel Welding.

ProX XTP-GSBPACK164 Product Specifications:
ProX XT-SQF34 2MM Series Dimensions:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb/9,5kg per 3.28 ft / 1 meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm

To Fit:
Standard F34 Square Truss Configurations
Fits most other manufacturers truss with conical connectors

Dimensions:
Weight: 265.00 lbs
Shipping Weight: 275.00 lbs

Suggested Shipping Method:
LTL

UPC:
019372413639

This Package Includes:

(2) XT-GSB MK2 Rigger Bases, with extending legs
(2) XT-SQ164 1.64 ft Long Truss segments
(2) XT-GSOUT3 3' Outrigger Brace Tubes
(8) Clamps
(2) XT-BLOCK Sleeve Block 4-Way Junction boxs
(2) XT-TOPCM Truss Tops with I-Beam mounts with chain Pulley wheels
(8) XT-HINGE Hinge block sets
(1) Clutch Clamper Universal All-in-one utility tool for truss, clamps, and M series bolts
