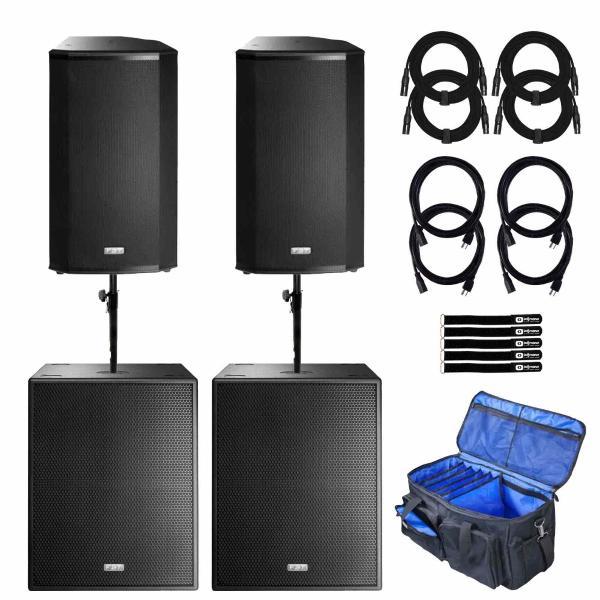

FBT VENTIS 112A Processed 2-Way Active 12" Speaker 2-Pack with (2) Q 118 SA Subwoofers Package

The VENTIS range by FBT comprises 5 versatile loudspeakers for either portable use or fixed installation. Available in bi-amplified or passive versions, each model was designed to meet the highest standards in both performance and aesthetic appeal. VENTIS 206 can be used as sound reinforcement, as an under-balcony system, as a main source for speech for its high intelligibility or simply as the full-range companion of a subwoofer.

All VENTIS models are equipped with a switching amplification module designed in Italy. The Class D integrated power amplifier for low frequencies supplies 700W RMS. For high frequencies, the amplifier section is Class HAB (200W RMS). A digital signal processor (DSP) is fitted inside and equipped with an intuitive graphical interface; situated on the rear panel, the DSP display shows all the menu choices, which can be edited via a single knob with push-to-select features. Made from birch plywood, they have a profile tilted at 45° for positioning on stage as a monitor, with various anchoring points and the option of being wall-mounted by means of a U-bracket.

FBT VENTIS 112A Processed 2-Way Active 12" Speaker Features:

• 2-way, bi-amplified, bass reflex design.
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF.
• Digital Signal Processor with graphic display.
• 15 mm (0.59") birch plywood scratch resistant enclosure and internal bracing.
• High efficiency switch mode power supply.
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push.
• 320mm (12") LF woofer with 64mm (2.5") voice coil, custom made for FBT.
• 25mm (1") exit throat B&C HF compression driver with 36mm (1.4") voice coil.
• Frequency response from 48Hz to 20 kHz.
• 80°H x 50°V Constant Directivity Rotatable Horn.
• 6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8") top-hat.
• Speaker stand socket, two aluminium handles.
• 45° monitor taper.

The Q118SA is a newly designed, extremely powerful subwoofer, capable of delivering extremely high SPL and guaranteeing significant low frequency extension. The optimisation of the woofer load volume and port tube with BEM finite element simulation, and the careful development of the grille and the protective fabric to minimise acoustic impedance, has led to a net improvement in performances as compared with previous models. Equipped with an high excursion ceramic B&C woofer with 100mm ventilated coil, it has negligible power compression, ensuring maximum acoustic pressure even after hours of continuous use.

The supplied 1200 watt rms class D amplifier with switching power is equipped with a digital signal processor with entirely new algorithms. Equipped with 6 presets, each of which is not only associated with a different equalisation – to tailor the subwoofer response to various usage conditions – but also with different dynamic processor calibration to extend the maximum acoustic pressure to very high levels, with no deterioration of the original signal. This ensures absolute configurability of the sound obtained, great flexibility of use and above all an impressive SPL/size ratio. The 18mm birch plywood cabinet is equipped with 4 aluminium handles and two M20 stand supports, suitable for use on either the short or the long side. It is compatible with MITUS 206 and M– USE 210 systems in ground-stacked configuration, and is designed to allow 4 optional 100mm wheels to be fitted. An exceptionally powerful and versatile subwoofer that can be combined with a wide range of FBT speakers.

FBT Q 118 SA High Performance Active 18" Subwoofer Features:

• 18" woofer with 4" voice coil.
• 1200W RMS Class D power amplifier with switch mode power supply.
• DSP with 6 presets, digital 6 step Delay.
• Control panel with: 3 status led indicators, Phase, Level, Preset, Delay, stereo XLR in/link.
• 0.70" baltic birch plywood cabinet with scratch and scuff resistant paint finish.
• 2 M20 top mount speaker stand socket, 4 aluminum carrying handles, optional wheels.
