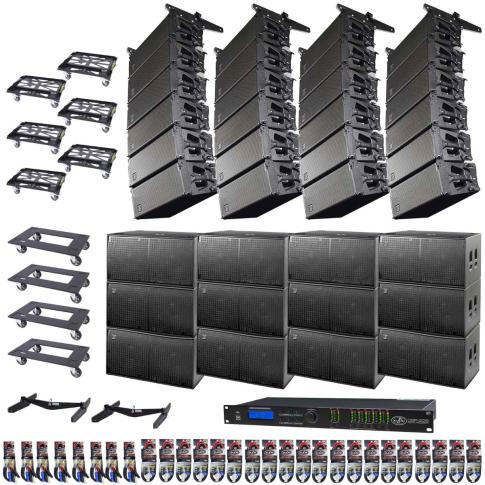

(24) DAS Event 210A Dual 10" Multipurpose Powered Line Array Speakers with (12) Event 218A Dual 18" Powered Subwoofers Package

The Event 210A Line is a three-way powered line array in a double 10" "dual-band" configuration which provides a wider frequency range. The D.A.S. loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide. The Event 210A line array is powered by a three channel Class D amplifier which provides 360 W peak per channel. The amp's rear panel includes quality Neutrik XLR and powerCON connectors, status LEDS to facilitate setup and D.A.S.'s Easy-DSP interface which simplifies preset selection for the number of units and throw depth.

Event 210A Features:

• Powered 3-way system.
• Light-weight Class D amplifier topology.
• High-end DSP chipsets.
• Easy-DSP Interface.
• Quality Neutrik connectors.
• Top grade Birch cabinet construction.
• Durable ISO-flex finish.
• Robust "quick-rig" professional rigging hardware.
• Proprietary injected aluminium HF waveguide.
• D.A.S. M-75 compression driver and cone transducers.

---

The Event 218A dual 18” powered subwoofer makes use of one of D.A.S.´s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.

The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system.

Event 218A Features:

• Powered high performance subwoofer system.
• 3600 Wpeak Class “D” amplifier.
• Two 18LX loudspeakers with 4″ voice coils.
• Front loaded bass-reflex configuration.
• Durable ISO-flex finish.

---

The D.A.S. DSP-226 is a loudspeaker system management processor which uses digital signal processing in order to accomplish the functions of crossover, equalizer, limiter, and delay unit. Designed for applications such as zoning and permanent installations, PA systems and stage monitor set ups, the DSP-226 features two balanced analogue inputs, six balanced outputs using XLR connectors, RS485 in/out and USB socket on the front panel.

DAS DSP-226 Loudspeaker Management Processor Features:

• Digital Signal Processor.
• 2 Inputs/6 Outputs.
• Completely Configurable.
• Universal Power Supply.
