Be the first to review this product
(2) ProX XTP-GSBPACK3 Truss Tower Stage Roofing System Packages
SKU
TOWERPACK4
Special Price $5,399.40 Regular Price $5,999.98
In Stock - Ships in 1-2 Days
Most orders placed by 2pm ET ship in 1-2 business days
Only at IDJNOW

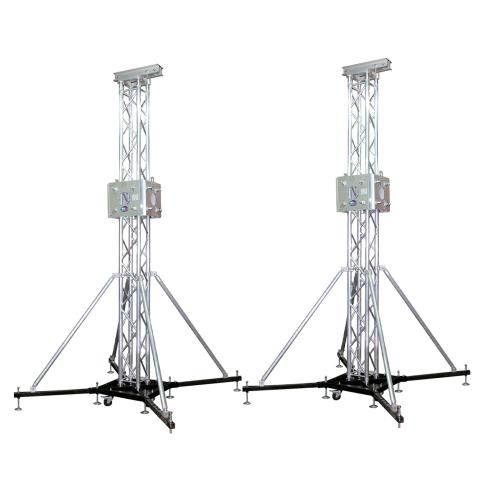

ProX XTP-GSBPACK3 Truss Tower Stage Roofing System Package - Includes Top Block Hinges Base Outriggers and 3.28ft Truss
Full Package of four-legged outrigger Truss base, with a 4-way Square Truss junction box Sleeve Block, on a 3' long square Truss. Complete with the Rigging Top.
In this package, you have everything you need for one complete leg in the building and flying a large scale truss, supporting mid to heavy-grade level stage installations. The system includes:
- Rigger Base, with extending legs, XT-GSB
- 3.28ft Long Truss segment, XT-SQ328 (Longer segments available, price changes per length)
- 4' Outrigger Brace Tubes (4) with clamps, XT-GSOUT3
- Sleeve Block 4-Way Junction box, XT-BLOCK
- Truss Top with I-Beam mount with chain Pulley wheels, XT-TOPCM
- 4 Hinge block set, XT-HINGE
- (Winch Motor not included)
ProX Truss has the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's rugged yet lightweight trussing solution is perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.
All ProX Truss products are 100% compatible to connect along with many other manufacturers; and are constructed to the highest safety ratings by certified welders!
Additional features:
- Tolerance Free Standard Conical connector.
- Main tube wall thickness of .08in / 2mm.
- Constructed to the highest safety ratings by certified welders.
ProX XT-BLOCK Specifications
Dimensions
22.50"Length (L) X 22.50"Width (W) X 18.50"Height (H)
Weight: 77.30 lbs
Shipping Dimensions
24.00"L X 24.00"D X 20.00"H
Weight: 80.00 lbs
ProX XT-TOPCM Specifications
Dimensions
24.00"Length (L) X 9.50"Width (W) X 11.50"Height (H)
Weight: 26.40 lbs
Shipping Dimensions
25.00"L X 10.00"D X 12.00"H
Weight: 28.00 lbs
ProX XT-GSB Specifications
Dimensions
28.50"Length (L) X 28.50"Width (W) X 9.00"Height (H)
Weight: 63.80 lbs
Shipping Dimensions
29.50"L X 29.50"D X 10.00"H
Weight: 65.00 lbs
ProX XT-GSOUTS3 Specifications
2" Diameter Tube with Clamp and Bolted hinge.
64" Alluminum Assist Tube with Clamp
36" Steel Base feet
ProX XT-SQ328 Specifications
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: ~5.0 lbs/ft / ~7.0/m
Main Tube: 2in / 50mm
Braces: .75in / 20mm
Material: EN-AWT6 6082 Aluminum
Actual Height: 3.28 ft (1 Meter) Square Truss Segment
Actual Weight: 19 lbs.
Outside: 290mm - 11 7/16"
Tubing: 2"
Bracing: 3/4"
Includes connecting hardware set.
Dimensions
12.00"Length (L) X 12.00"Width (W) X 39.36"Height (H)
Weight: 19.00 lbs
All ProX Truss products are 100% compatible to connect along with many other manufacturers.
This Package Includes:
(2) ProX XTP-GSBPACK3 Truss Tower Stage Roofing System Packages
Each XTP-GSBPACK3 Truss Tower Package Includes the following components:
(1) ProX XT-BLOCK Sleeve Block for 12" Trussing
(1) ProX XT-TOPCM Top Truss Section for Electric Motor or Manual Chain Hoist
(4) ProX XT-HINGE Single Tube Hinge Blocks
(1) ProX XT-GSB Universal Ground Support Base On Wheels
(4) ProX XT-GSOUTS3 Outrigger Braces for Ground Support
(1) ProX XT-SQ328 3.28ft (1.00m) Square Truss Segments
