Be the first to review this product
Most orders placed by 2pm ET ship in 2-3 business days
ACTION-515A is an active system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. Its rotatable horn with 90° x 60° dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.
As part of the company culture, all DAS systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series, they use the same birch plywood as the touring systems for a tight, natural warm sound found nowhere else on the market. The series' full range of active tops is complete with two balanced XLR inputs for mic and line, an additional 3.5 mm mini jack input, and a powerCON connection.
The system has a 15MI4 loudspeaker for a more powerful low-frequency response than other tops in the series and an M-34 compression driver for high frequencies which, together with the 1000 Wpeak Class D amplifier, deliver outstanding performance. The DAScontrol interface uses a high-range 24-bit DSP and rear LCD screen to enable the selection of presets, EQ modes, delay, gain control and signal source mix.
DAS Action-515A 15" Speaker Features:
- Active biamp system.
- Dual-channel 1000 Wpeak Class D amplifier.
- Birch wood plywood enclosure.
- Durable ISO-Flex paint to withstand the most demanding environments.
- DAScontrol interface for easy setup and adjustment.
- DSP with presets and LCD screen.
DAS Action-515A Specifications:
Amplifier Power | 1000 W Peak Class D, Biamplified |
Frequency Range (-10 dB) | 45 Hz - 20 kHz |
Rated Peak SPL at 1 m | 131 dB |
Dispersion | 90º x 60º (Rotatable) |
Enclosure Material | Birch Plywood |
Color/Finish | Black/ISO-flex paint |
Connectors | INPUT: 2 X Female XLR AUX INPUT: 3.5 mm mini Jack LOOP THRU: Male XLR AC INPUT: powerCON |
AC Requirements | 115 V, 2.2 A, 50 Hz/60 Hz 230 V, 1.1 A, 50 Hz/60 Hz |
Dimensions (H x W x D) | 718 x 444 x 375 mm 28.3 x 17.5 x 14.8 in |
Weight | 24 kg (52.8 lb) |

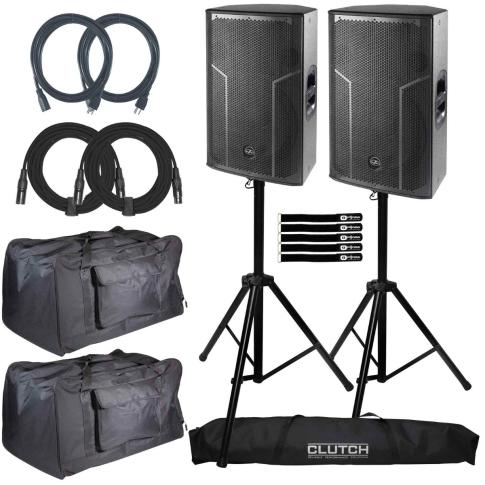

This Package Includes:
(2) DAS Action-515A Action 500 Series 15" Active Two-Way Full-Range Speakers
(2) PowerCon power cords
(2) Clutch CL-STPACK Tripod Speaker Stands
(1) Clutch Durable Tripod Speaker Stand Set Carry Bag
(2) Properly Fitting & Durable Protective Transport Tote Bags
(2) Clutch 20' Sure-Fit XLR Female to XLR Male Microphone / Speaker Cables
(2) Clutch CL-EC16310 Black 10FT 16 Gauge AC Extension Cords
(5) 8" Reusable Hook and Loop Cable Ties
