Open Box Mint!
SAVE $512.59
SAVE $512.59

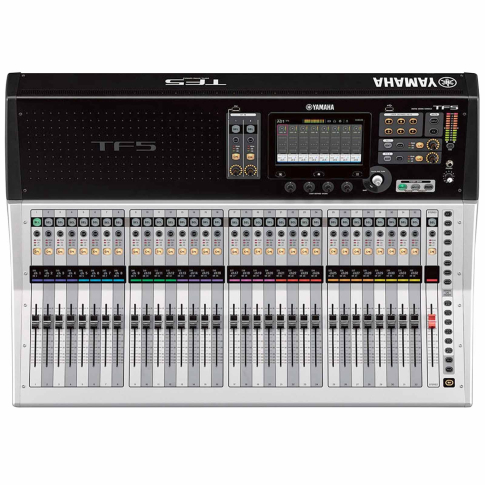

Yamaha TF5 Digital Mixer 32+1 Fader Audio Console - Open Box Mint
SKU #: TF5-IO1
Reg.
$3,499.99
Now
$2,987.40
Reg.
More Arriving Soon!
Expected September 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Yamaha TF5 32+1 Fader Digital Audio Console Features:
- 33 motor faders (32 channels + 1 master.)
- 48 input mixing channels (40 mono + 2 stereo + 2 return.)
- 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses.
- 8 DCA groups with Roll-out.
- 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs.
- 16 analog XLR outputs.
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device.
- 1 expansion slot for NY64-D audio interface card.
Yamaha TF5 Specifications:
Outline Fader Configuration 32 + 1 (Master) Mixing Capacity Input Channels 48 (40 mono + 2 stereo + 2 return) Aux Buses 20 (8 mono + 6 stereo) Stereo Buses 1 Sub Buses 1 Input channel functions 8 DCA Groups I/O Inputs 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) Outputs 16 (XLR) Expansion slots 1 On-board processors DSP 8 Effects + 10 GEQ USB 34x34 USB Audio Interface, 2-track recording via USB Storage Device General specifications Sampling frequency rate Internal 48 kHz Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz Fader 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT Dynamic range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. Hum & noise level Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter) Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. Power requirements 100–240 V 50/60 Hz Power consumption 120 W Dimensions W 866 mm (34.1in) H 225 mm (8.9in) D 599 mm (23.6in) Net weight 20.0 kg (44.1lb) Accessories Quick Guide, Power Cord, CUBASE AI download information Options Expansion Card, Foot Switch (FC5) Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
Each TF5 Retail Box Includes:
(1) Yamaha TF5 32+1 Fader Digital Audio Console
(1) AC power cord
(1) Quick Guide
(1) Nuendo Live (DAW software)
*Please note: Customer return/Store display items are not brand new and may have minor imperfections. Due to the nature of a "Customer return item" we cannot guarantee that all box components listed, will be included. Because of this, the item is discounted accordingly and sold at close to cost or below. IDJNOW does guarantee that you will receive all pertinent components for the item to function in Its most basic form (usually just a power cord) and guarantees the item to be free from defect for 30 days from the day you receive it.
