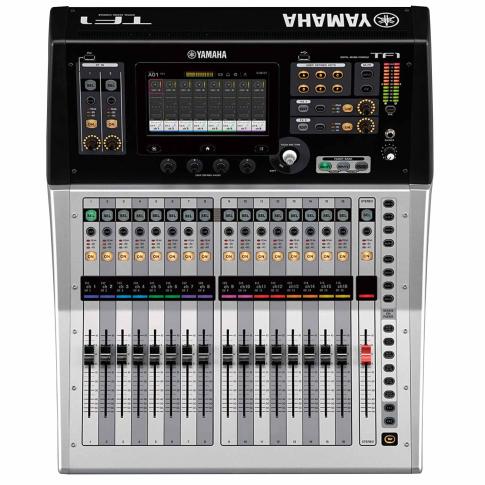

Yamaha TF1 Digital Mixer 16+1 Fader Audio Console - Store Demo
Expected September 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Yamaha TF1 16+1 Fader Digital Audio Console Features:
- 17 motor faders (16 channels + 1 master.)
- 40 input mixing channels (32 mono + 2 stereo + 2 return.)
- 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub.
- 8 DCA groups with Roll-out.
- 16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs.
- 16 analog XLR outputs.
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device.
- 1 expansion slot for NY64-D audio interface card.
Yamaha TF1 Specifications:
Outline Fader Configuration 16 + 1 (Master) Mixing Capacity Input Channels 40 (32 mono + 2 stereo + 2 return) Aux Buses 20 (8 mono + 6 stereo) Stereo Buses 1 Sub Buses 1 Input channel functions 8 DCA Groups I/O Inputs 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) Outputs 16 (XLR) Expansion slots 1 On-board processors DSP 8 Effects + 10 GEQ USB 34x34 USB Audio Interface, 2-track recording via USB Storage Device General specifications Sampling frequency rate Internal 48 kHz Signal delay Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz Fader 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders Total harmonic distortion Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) Frequency response +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT Dynamic range 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. Hum & noise level Equivalent input noise –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) Residual output noise –85 dBu, ST master off (Measured with an A-Weight filter) Crosstalk –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. Power requirements 100–240 V 50/60 Hz Power consumption 100 W Dimensions W 510 mm (20.1in) H 225 mm (8.9in) D 599 mm (23.6in) Net weight 13.5 kg (29.8lb) Accessories Quick Guide, Power Cord, CUBASE AI download information Options Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5) Others Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
Each TF1 Retail Box Includes:
(1) Yamaha TF1 16+1 Fader Digital Audio Console
(1) AC power cord
(1) Quick Guide
(1) Nuendo Live (DAW software)
