Yamaha Pro Audio STAGEPAS100BTR Portable 6.5" Battery Powered PA System with Soft Carrying Bag Package
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Expand Your Range, Extend Your Reach. With all the essentials for a compact PA packed into a durable cabinet weighing just 12 lbs., the STAGEPAS 100BTR takes portability to a whole new level. Far more than just a speaker that amplifies your mic or instrument inputs, this diminutive, battery-powered package delivers impressive sonic performance by leveraging some of the same technologies used in these high-end professional products. A powerful, high-quality coaxial compression driver combined with Yamaha's FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion that will ensure every nuance of your performance is conveyed loud and clear to your audience. With all of this paired with an unrivaled ease of operation and a setup requiring mere seconds, the STAGEPAS 100BTR will have you sounding great and performing in an instant, anywhere, anytime.
Yamaha STAGEPAS100BTR 6.5" Powered PA System Features:
- 100 W Class-D amplifier.
- 1.4" HF + 6.5" LF high-quality coaxial compression driver using an FIR filter for the crossover.
- 3-channel mixer (2 monaural mic/line + 1 line.)
- Equipped with a 2-band master EQ.
- Compatible with Hi-Z input (Channel 2 only.)
- Equipped with mix-out.
- Carrying handle doubles as an adjustable stand.
- Multipoint Bluetooth connectivity for wireless audio playback.
- Optional carrying bag (BAG-STP100) available for convenient transport.
- Internal lithium-ion battery.
Yamaha STAGEPAS100BTR Product Specifications:
| Outline | |
|---|---|
| Type | INPUT 1: Combo (mic/line), INPUT 2: Combo (mic/line, Hi-Z), INPUT 3: Stereo Mini x 1 (line) |
| I/O | Inputs: Mono x 3 (mic/line) + Stereo/Mono x 1 (line) Outputs: OUTPUT: XLR3-32 (INPUT 1-3 mix) Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1 |
| Processors | 2 Band EQ |
| General specifications | |
| Speaker type | Coaxcial speaker with compression driver |
| Frequency range (-10dB) | 70 Hz - 20 kHz |
| Coverage area | H 90" x V 90" |
| Crossover | 1.8 kHz (FIR-X) |
| Maximum output level (1m; on axis) | 120 dB SPL (Measured peak SPL with pink noise @1m.) |
| Components | LF: 6.5" Cone, 1.7" voice coil HF: 1" throat compression driver, 1.4" voice coil |
| Amplifier class | Class-D |
| Power rating | Dynamic: 100 W (LF: 93 W, HF: 7 W) |
| Cooling | Natural convection (no fan) |
| Power consumption | 10 W (Idle), 30 W (1/8 power) |
| Power requirements | 100-240 V 50/60 Hz |
| Battery | Type: Rechargeable Lithium ion battery pack Capacity: 60 Wh Operating Time: Maximum 6 hours, 1/16 power continuous 5 hours Charging Time: Approx. 2.5 hours |
| Cabinet material | Plastic (PP) |
| Handle | Bottom x 1 (Rotatable) |
| Mounting hardware | 1 × 3/8", depth 12 mm (center of handle) |
| Dimensions (W x H x D) | 239 x 310 x 215 mm (9.5" x 12.3" x 8.5"), with handle |
| Weight | 5.5 kg (12.1 lbs), without AC adaptor |
| Included Accessories | Power cord x 1, AC adaptor (PA-500) x 1 |
| Option | Carrying bag: BAG-STP100 |

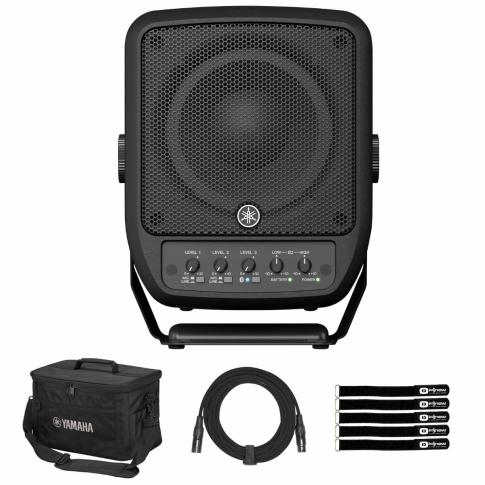

This Package Includes:
(1) Yamaha Pro Audio STAGEPAS100BTR Portable 6.5" Battery Powered PA System with 3-Channel Mixer
(1) Power cord
(1) AC adaptor (PA-500)
(1) Yamaha Pro Audio BAG-STP100 Soft Carrying Bag for STAGEPAS100/BTR PA System
(1) Clutch 20' Sure-Fit XLR Female to XLR Male Microphone / Speaker Cable
(5) 8" Reusable Hook and Loop Cable Ties
