Yamaha MG12XU 12-Input Four Bus Effects and USB Mixer with Gator Cases Mixer / Gear Bag Package

SKU
MG12XUNCASE

Special Price $459.40 Regular Price $527.88

Item Backordered

Questions? Call 1-800-355-7746 or Chat below

Free Shipping
Best Price + Plus
Check In-Store Availability

Free Shipping on most orders with minimum purchase of $50 or more for a limited time.

Ground shipments only in the lower 48 contiguous United States.

Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.

Any questions, please call 1-800-355-7746 during normal business hours.

Offer subject to change or termination without notice. Not responsible for typographical errors.

The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.

Learn More

1 800 355 7746



I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700



I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100

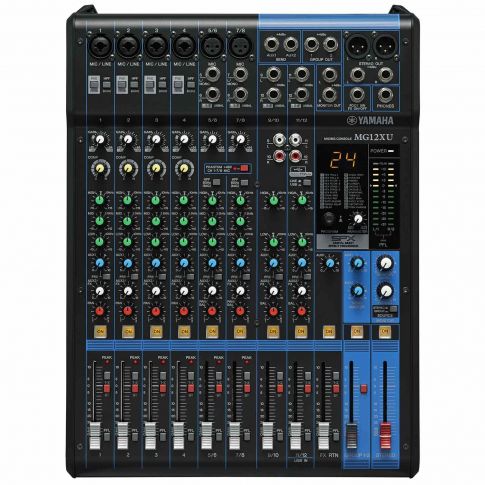

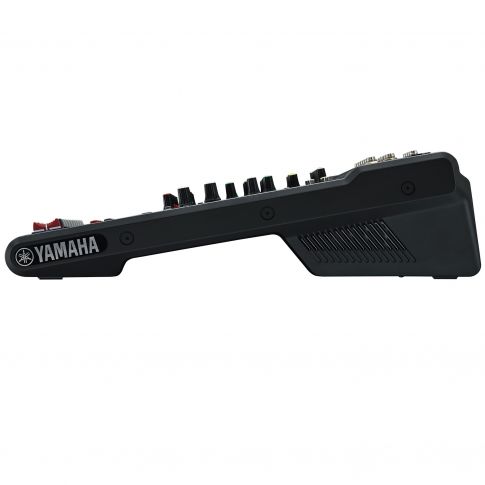

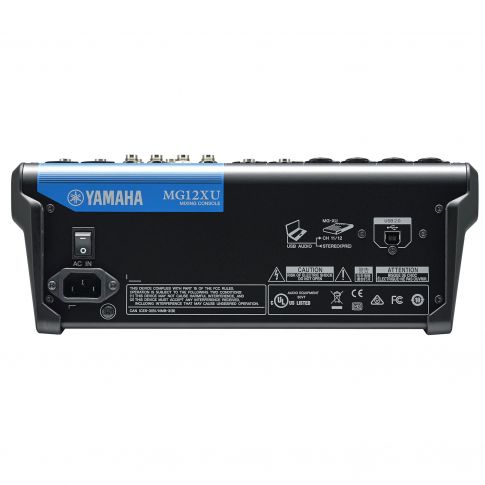

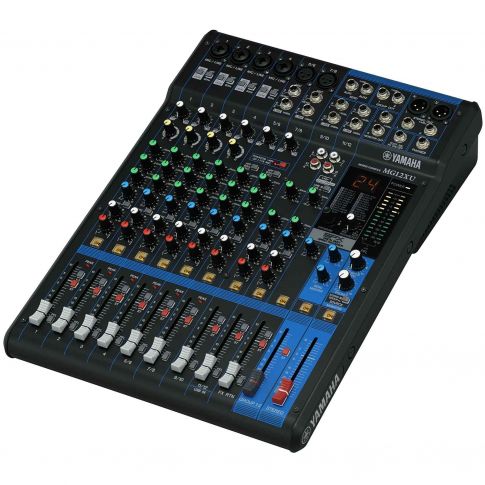

Yamaha MG12XU 12-Input Four Bus Mixer with Effects and USB

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Yamaha has always strived to provide sound engineers with the purest possible signal instead of added processing or color to give it a "signature" sound, and the MG Series is no exception. Embracing this philosophy of transparent sound, these mixing consoles deliver a level of sonic purity and sound quality that is unmatched in their class.

The MG12XU features high-quality built-in signal processing effects that are in the same league as the famed SPX effect processor series. Applying effects allows you to simulate the acoustics of different performance environments.

Yamaha MG12XU 12-Input Four Bus Mixer with Effects and USB Features:

  • 12-Channel Mixing Console.
  • Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo.)
  • 2 GROUP Buses + 1 Stereo Bus.
  • 2 AUX.
  • "D-PRE" mic preamps with an inverted Darlington circuit.
  • 1-Knob compressors.
  • PAD switch on mono inputs.
  • +48V phantom power.
  • XLR balanced outputs.
  • Internal universal power supply for world-wide use.
  • Optional Rack Mount Kit RK-MG12 Available.
  • Metal chassis.
  • 308 mm x 118 mm x 422 mm (12.1" x 4.6" x 16.6".)
  • Net Weight: 4.0 kg (8.8 lbs.)
D-PRE (Discrete Class-A Mic Preamps)
This is where it all starts. Everything you do as a sound engineer is dependent on the quality of your preamps, which determines the direction your mix will take, and ultimately how good it is going to sound. MG Series mixing consoles feature Yamaha's studio-grade discrete class-A D-PRE preamps, which utilize an inverted Darlington circuit comprising two cascading transistors in a configuration that provides more power with lower impedance. Delivering fat, natural sounding bass and smooth, soaring highs, with very low distortion, D-PRE preamps possess an impressively wide frequency range that allow them to handle signal from any audio source without overly amplifying any specific elements of the sound. Having such a pure sonic platform to build on will ultimately save you time and effort by eliminating the need for excessive EQing or additional effects processing in order to "fix" your mix.

High Quality Sound Op-amp
The head amp determines sound quality, and op-amp integrated circuits are one of the most important parts in the head amp circuit. MG Series mixers feature new, high-quality, custommade MG01 op-amps that we developed in cooperation with the semiconductor manufacturer. Although many other Op-amps prioritize electrical design and efficiency, we worked directly with the semiconductor manufacturer to focus on sound quality first. MG01 op-amps feature redesigned circuitry in which even the internal components and wiring have been optimized, and use materials such as high-quality silicon wafers and copper wire to achieve superb resolution.

Switchable Phantom Power & PAD Switch
With phantom power, MG Series consoles allow you to take full advantage of the greater frequency response and high sound quality of condenser microphones. The input channel with PAD switch accepts MIC to line level of inputs, PAD Switch attenuates high input signals that often accompany mic'ed instruments during performance, avoiding the clippingthat can seriously affect your mix.

When was the last time you heard guitar without EQ or a completely unprocessed vocal on one of your favorite songs? Probably never. Yamaha mixers are famous for their flat response and sonic purity, but it often takes more than a perfectly-captured instrumental performance or vocal to achieve a professional-sounding mix. Equipped with some of the same state-of-the-art functionality featured on Yamaha's high-end consoles, the MG Series gives you the tools you need to produce high quality sound that is uniquely your own.

1-knob Compressors
Compression plays an essential role in just about any recording or sound reinforcement environment by altering the level of dynamics of an audio signal when you need livelier guitars, punchier bass lines, a tighter snare, or a cleaner vocal sound. However, it can take countless hours to master the complexities of even the most basic outboard compression units and use them effectively. Originally a Yamaha innovation, 1-knob compressors are now an industry standard that gives you instant access to optimized compression settings via a single rotary control.

EQ and High-pass Filters
There's nothing more useful than reliable equalization when you need nuanced management of your tone. The MG Series benefits from Yamaha's unparalleled experience in designing pro audio gear, featuring 3-band equalizers on all mono channels for precise control of your sound. High-pass filter allows you to eliminate unwanted low-frequency noise, for a smoother, cleaner mix.

AUX / Effect Sends / Group
MG Series mixers feature up to AUX sends for expanding your sound reinforcement or recording setup, allowing you to incorporate additional effects, output to external recording devices, or feed to an monitoring system. (except for MG06 / 06X) Master send controls are also provided. The MG06 / 06X, MG10 / 10XU / 10XUF and MG12XUK have a single stereo bus. All other models additionally feature one or two stereo group buses and outputs that can be used for convenient channel grouping. Assign switches for the stereo and group buses are located next to each channel fader.

A variety of input / output connectors
All models feature high-quality Neutrik balanced XLR connectors on mono microphone/line channels and XLR equipped stereo channels. Each of the mono inputs is equipped with combo jack and accepts both MIC and LINE level signals. Two of the stereo inputs are equipped with XLR and two phone connectors with XLR accepting MIC level signals while two phone connectors accepting LINE level signals and can be used either mono or stereo. (except for MG10 / 10XU / 10XUF / 12XUK) The function of another two stereo channel vary depending on model: With MG20 / 20XU, XLR accepts MIC level signal and two RCA connectors accepts LINE level signals and can be used either mono or stereo. With MG12 / 12XU and MG16 / 16XU, two phone connectors accept LINE level signals as stereo. Additionally, each of the stereo channel features 2TR in (RCA connectors) and can be used as independent input from external audio sources such as CDs. MG10 / 10XU / 10XUF and MG12XUK are equipped with additional stereo channel with a pair of phone jack that accepts LINE levels. With XU models, any incoming source that are sent via USB can be assigned to one of the stereo channel. In addition to the main stereo outputs (XLR L/R, TRS phone L/R), MG Series mixing consoles are equipped with a comprehensive suite of output connectors, including GROUP OUT (TRS phone), AUX/FX OUT (TRS phone), MONITOR OUT (TRS phone L/R), and HEADPHONE OUT (stereo phone) connectors, allowing master outputs to be chosen to suit specific applications such as monitoring or mastering.

LED level metering
Easy-to-read LED level metering allows output levels to be monitored with precision.

For gigging, recording, and installed applications alike, your console can be subjected to a wide range of environmental conditions and hazards. Excessive humidity, unstable power supplies, and the rigors of road travel in general can take a serious toll on a mixing console, often causing expensive, time-consuming repairs, and reducing its lifespan. The MG Series has been redesigned with an emphasis on durability, incorporating practical features that offer greater flexibility while ensuring peak performance for many years to come.

Metal Chassis
Built to last, MG Series mixers feature a rugged, impact-resistant, powder-coated metal chassis, offering an unrivalled level of durability. With a sleek design contoured for optimal convection cooling, the internal layout separates the power supply from the analog circuitry for superior noise reduction, and further extends the life of the components inside. To further ensure reliable performance, knob control placement above the surface of the chassis diverts any impact or pressure on the knobs to the chassis itself and not the circuit board or components underneath.

Internal Universal Power Supply
Thanks to a highly-efficient internal universal power supply, MG Series consoles offer worry-free operation in any region around the globe—even in environments prone to potentially damaging power fluctuations. An internal power supply also simplifies rack mounting of the console for installed applications, eliminating the need for a bulky adapter or additional connections.(* MG12 / 16 / 20 / 12XU / 16XU / 20XU)

Optional Rackmount kit "RK-MG12" available for MG12/MG12XU.

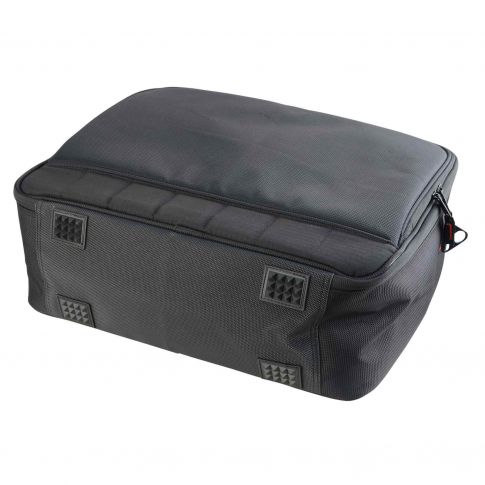

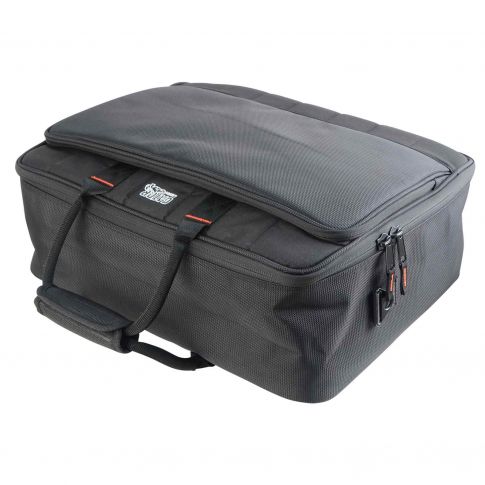

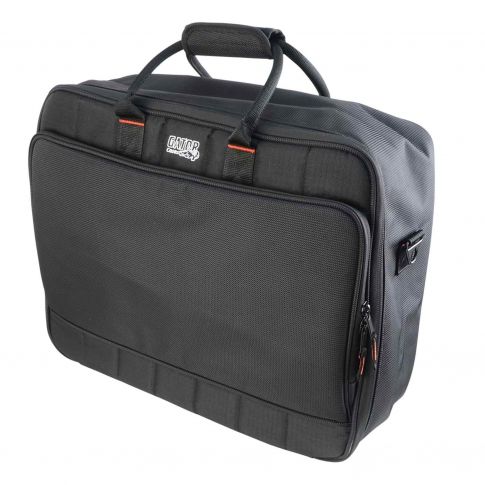

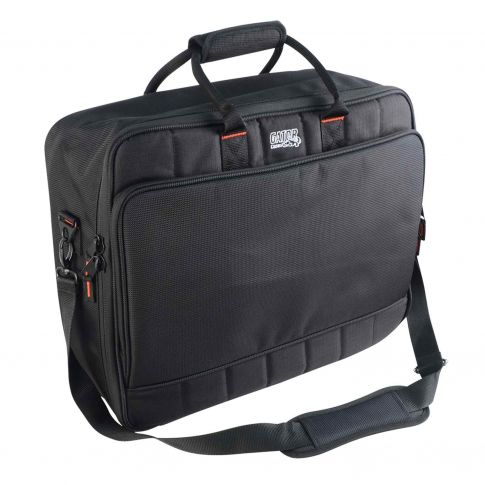

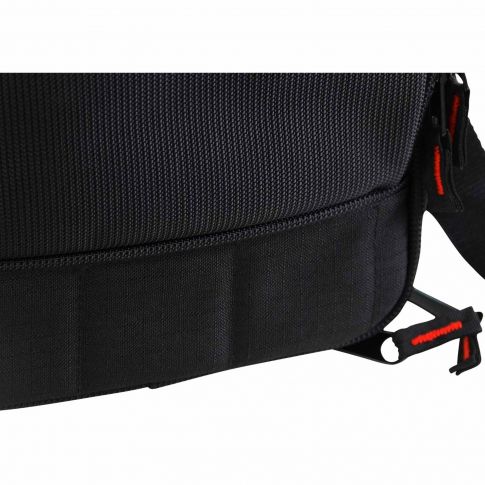

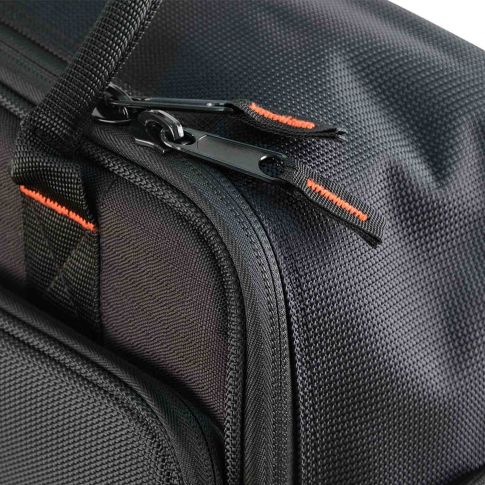

Gator Cases G-MIXERBAG-1815 18" x 15" x 6.5" Mixer / Gear Bag

Updated Padded Nylon Mixer Or Equipment Bag; 18" X 15" X 6.5".

  • Rugged Nylon Exterior.
  • 10mm Dual Layer Padded Protection.
  • Protective Tricot lined interior.
  • Removable shoulder strap & comfortable webbed handles.
  • External storage pockets with cord management.

Yamaha MG12XU Specifications:

OutlineMG12XU
I/OPhantom power+48 V
Input ChannelsMono[MIC/LINE]4
Mono/Stereo[MIC/LINE]2
Stereo[LINE]2
Output ChannelsSTEREO OUT2
MONITOR OUT1
PHONES1
AUX SEND2
GROUP OUT2
BusStereo: 1, GROUP: 2, AUX: 2
Input Channel FunctionPAD26 dB (Mono)
HPF80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
COMP1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGHGain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MIDGain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOWGain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LEDLED turns on when post EQ signal reaches 3 dB below clipping
Level Meter2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
General specificationsMG12
Total harmonic distortion0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise-102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk-78 dB
Power requirementsAC 100 – 240 V, 50 / 60 Hz
Power consumption22 W
DimensionsW308 mm (12.1")
H118 mm (4.6")
D422 mm (16.6")
Net weight4.0 kg (8.8 lbs.)
AccessoriesIncluded Accessory: Owner’s Manual, Technical Specifications, AC power cord, Optional Accessory: Rack-mount kit RK-MG12

MG12XU Analog Input Characteristics
Input terminalPAD
26 dB
GAIN Trim
Position
Actual Load
Impedance
For Use With
Nominal
Input levelConnector
Sensitivity *1NominalMax. before clip
MIC/LINE
1 – 4
OFF+64 dB3kΩ50-600Ω
Mics/Lines
-80 dBu
(0.077 mV)
-60 dBu
(0.775 mV)
-40 dBu
(7.75 mV)
Combo
jack*2
(Balanced)
+20 dB-36 dBu
(12.3 mV)
-16 dBu
(122.8 mV)
+4 dBu
(1.228V)
ON+38 dB-54 dBu
(1.55 mV)
-34 dBu
(15.46 mV)
-14 dBu
(154.6 mV)
-6 dB-10 dBu
(245 mV)
+10 dBu
(2.451 V)
+30 dBu
(24.51 V)
MIC
5/6, 7/8
+64 dB3kΩ50-600Ω
Mic
-80 dBu
(0.077 mV)
-60 dBu
(0.775 mV)
-40 dBu
(7.75 mV)
XLR-3-31 *3
(Balanced)
+20 dB-36 dBu
(12. 3 mV)
-16 dBu
(122.8 mV)
-6 dBu
(388.2mV)
LINE
5/6, 7/8
+38 dB10kΩ600Ω
Lines
-54 dBu
(1.55 mV)
-34 dBu
(15.46 mV)
-14 dBu
(154.6 mV)
Phone jack *5
(Unbalanced)
-6 dB-10 dBu
(245 mV)
+10 dBu
(2.451 V)
+30 dBu
(24.51 V)
LINE
9/10
10kΩ600Ω
Lines
-30 dBu
(24.5 mV)
-10 dBu
(245 mV)
+10 dBu
(2.45 V)
Phone jack *5
RCA Pin
(Unbalanced)
MG12XU Analog Output Characteristics
Output TerminalsActual source
impedance
For Use With
Nominal
Output levelConnector
NominalMax. before clip
STEREO OUT [L, R]75Ω600Ω Lines+4 dBu
(1.228 V)
+24 dBu
(12.28 V)
XLR-3-32 *3
Phone jack *4
(Balanced)
MONITOR OUT [L, R]
GROUP OUT [1, 2]
AUX SEND [1, 2]
150Ω10kΩ Lines+4 dBu
(1.228 V)
+20 dBu
(7.750 V)
Phone jack *4
(Impedance Balanced)
PHONES110Ω40Ω Phones3mW + 3mW100mW + 100mWStereo phone jack



Gator Cases G-MIXERBAG-1815 Specifications

Color:
Black
Handles:
Webbed Carry Handle
UPC Code:
716408536989

Interior Dimensions
Interior Length: 18.50 "
Interior Width: 15.00 "
Interior Height: 6.50 "
Interior Lengh (Aux): 17.00 "
Interior Width (Aux): 13.00 "
Interior Depth (Aux): 0.75 "

Exterior Dimensions
Exterior Length: 19.00 "
Exterior Width: 16.50 "
Exterior Height: 6.50 "
Exterior Weight: 3.00 pounds

Shipping Dimensions
Exterior Length: 22.44 "
Exterior Width: 7.87 "
Exterior Height: 8.07 "
Exterior Weight: 6.00 pounds

This Package Includes:
(1) Yamaha MG12XU 12-Input Four Bus Mixer with Effects and USB
(1) Gator Cases G-MIXERBAG-1815 18" x 15" x 6.5" Mixer / Gear Bag

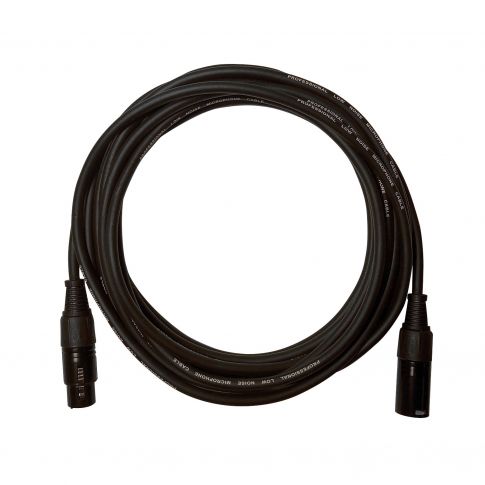

(2) 20FT Sure-Fit XLR Connecting Cables

The MG12XU Retail Box Includes:
(1) Yamaha MG12XU 12-Input Four Bus Mixer with Effects and USB
(1) AC Power Adaptor
(1) Set of Cubase AI Download Information
(1) Technical Specifications
(1) Owner's Manual

The G-MIXERBAG-1815 Box Includes:

(1) Gator Cases G-MIXERBAG-1815 18" x 15" x 6.5" Mixer / Gear Bag
