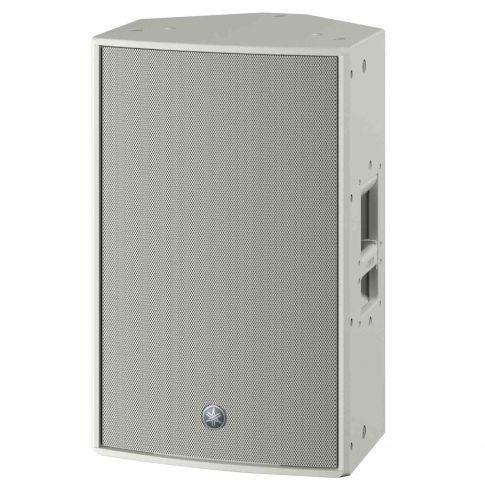

Yamaha CZR12W 12" 2-Way White Passive Loudspeaker
SKU
CZR12W
$1,092.99
Item Backordered
Expected April 30, 2025
Only at IDJNOW
For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system's low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that's sure to impress. The CZR Series features 15", 12" and 10" models with transducers with die-cast aluminum frames with a 3" voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2" voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90°x 50° for the CZR15, and 90°x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally. When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information). CZR Series loudspeakers come equipped with plenty of rigging points for any installation environment, allowing for rigged application with standard eyebolts. Every CZR model is equipped with Biamp mode to maximize performance. The CZR12 can produce 129dB SPL with a power rating of 800W for the CZR15 and CZR12, and 700W for the CZR10 in passive mode.
Yamaha CZR12W 12" White Passive Speaker Features:
- 2-way loudspeaker with a 2" HF and a 12" LF.
- Features Yamaha's own Wide Dispersion CD Waveguide Horn.
- High power 800W(PGM) power handling and Bi-amp capable.
- Floor monitoring setting enables mirroring configuration.
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating.
- Dual-angle pole socket.
- Optional speaker cover (SPCVR-DZR12.)
- Rotatable horn and variety of U-bracket options (UB-DZR12H/V) for rigging allow for very flexible setup and speaker placement.
- Durable White finish.
Yamaha CZR12W Specifications:
General specifications Speaker type 2-way Speaker, Bass-reflex Frequency range (-10dB) Passive: 43 Hz - 20 kHz, Normal (*1): 42 Hz - 20 kHz, FOH (*1): 38 Hz - 20 kHz Coverage area H90° x V60° Rotatable Constant Directivity Horn Floor Monitor Angle 50° Symmetrical Components LF 12" Cone, 3" Voice Coil, Neodymium magnet HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet Crossover 2.0 kHz Power rating NOISE Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W, HF (AES): 50W PGM Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W, HF (AES): 100W PEAK Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W, HF (AES): 200W Nominal impedance Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω SPL Sensitivity (1W; 1m on axis) Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL Peak (Calculated) Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL I/O connectors SpeakON NL4MP x 2 (Parallel) Handle Aluminium die-cast, Side x2 Pole socket Φ35 mm x2 (0° or -7°) Rigging M10 x 12 Dimensions W 410 mm (16.1") H 646 mm (25.4") (with rubber feet) D 394 mm (15.5") Net weight 18.0 kg (39.7 lbs) Options Bracket: UB-DZR12H/V, Cover: SPCVR-DZR12 Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White
*1: With recommended DSP processing.
*2: Half space (2π)
(1) Yamaha CZR12W 12" 2-Way White Passive Loudspeaker
(1) Owner's Manual
