Be the first to review this product

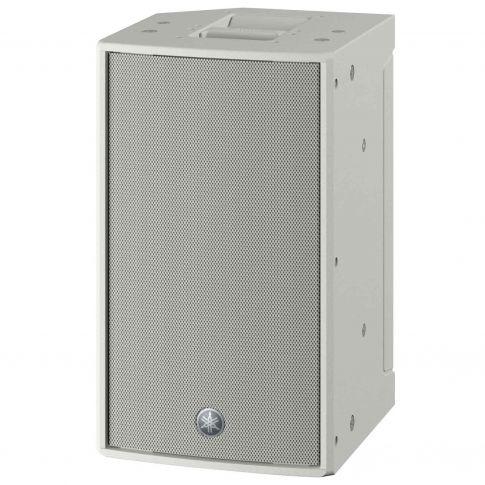

Yamaha CZR10W 10" 2-Way White Passive Loudspeaker
SKU
CZR10W
$979.99
Item Backordered
Expected April 30, 2025
Only at IDJNOW
For even more bottom end to round out your sound, adding CXS XLF Series passive subwoofers can extend your system's low frequency performance dramatically down to a startling 29Hz for throbbing low frequency reproduction capability that's sure to impress. The CZR Series features 15", 12" and 10" models with transducers with die-cast aluminum frames with a 3" voice coil for very high power input, and a lightweight yet powerful neodymium magnet that helps to add punch and power to your bass. The HF unit achieves vivid, soaring highs from its titanium diaphragm with a 2" voice coil and neodymium magnet. Like the DZR, the CZR models also feature the rotatable constant directivity horn design (90°x 50° for the CZR15, and 90°x 60° for the CZR12 and CZR10) for increased flexibility in mounting vertically or horizontally. When used in combination with Yamaha PX Series amplifiers or other compatible signal processors, CZR Series loudspeakers can take full advantage of dedicated speaker processor tuning settings. Additionally, like the DXS XLF models, CXS XLF subwoofers are capable of use in cardioid mode provided the processor has the dedicated DSP settings (visit Yamaha pro-audio website for more information). CZR Series loudspeakers come equipped with plenty of rigging points for any installation environment, allowing for rigged application with standard eyebolts. Every CZR model is equipped with Biamp mode to maximize performance.
Yamaha CZR10W 10" White Passive Speaker Features:
- 2-way loudspeaker with a 2" HF and a 10" LF.
- Features Yamaha's own Wide Dispersion CD Waveguide Horn.
- High power 700W(PGM) power handling and Bi-amp capable.
- Floor monitoring setting.
- Lightweight yet very durable plywood cabinet with premium graded Polyurea coating.
- Dual-angle pole socket.
- Optional speaker cover (SPCVR-DZR10.)
- Rotatable horn and variety of U-bracket options (UB-DZR10H/V) for rigging allow for very flexible setup and speaker placement.
- Durable White finish.
Yamaha CZR10W Specifications:
General specifications Speaker type 2-way Speaker, Bass-reflex Frequency range (-10dB) Passive: 43 Hz - 20 kHz, Normal (*1): 46 Hz - 20 kHz, FOH (*1): 43 Hz - 20 kHz Coverage area H90° x V60° Rotatable Constant Directivity Horn Floor Monitor Angle 50° Components LF 10" Cone, 3" Voice Coil, Neodymium magnet HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet Crossover 2.5 kHz Power rating NOISE Passive (EIA 426-A) 350 W, Bi-amp LF (EIA 426-A): 350W, HF (AES): 50W PGM Passive (EIA 426-A) 700 W, Bi-amp LF (EIA 426-A): 700W, HF (AES): 100W PEAK Passive (EIA 426-A) 1400 W, Bi-amp LF (EIA 426-A): 1400W, HF (AES): 200W Nominal impedance Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω SPL Sensitivity (1W; 1m on axis) Passive: 95dB SPL, Bi-amp: LF: 95dB SPL, HF: 108dB SPL Peak (Calculated) Passive: 127 dB SPL, Bi-amp: LF: 127dB SPL, HF: 131dB SPL I/O connectors SpeakON NL4MP x 2 (Parallel) Handle Aluminium die-cast, Top x1, Side x1 Pole socket Φ35 mm x2 (0° or -7°) Rigging M10 x 8, M8 x 2 Dimensions W 315 mm (12.4") H 537 mm (21.1") (with rubber feet) D 345 mm (13.6") Net weight 14.0 kg (30.9 lbs) Options Bracket: UB-DZR10H/V, Cover: SPCVR-DZR10 Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White
*1: With recommended DSP processing.
*2: Half space (2π)
(1) Yamaha CZR10W 10" 2-Way White Passive Loudspeaker
(1) Owner's Manual
