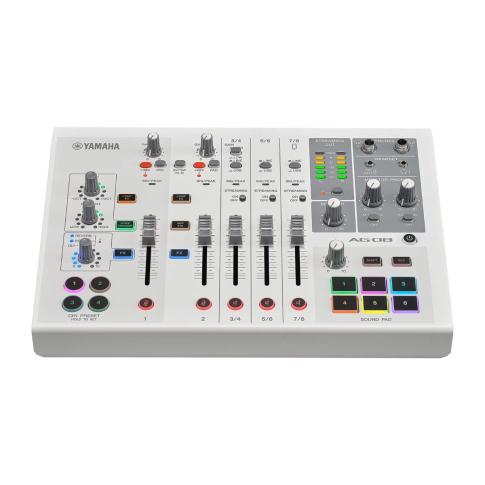

Yamaha Pro Audio AG08 White 8-Channel Live Streaming Mixer/USB Interface for IOS/Mac/PC - Store Demo
SKU #: AG08-W-IO
Reg.
$499.99
Now
$406.86
Reg.
Item Backordered
Expected September 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
As the flagship model of Yamaha's second-generation AG series lineup, the AG08 combines all the essential functionality of its predecessors with a versatile selection of practical new features to give you a powerful all-in-one streaming station. By integrating more flexible I/O and USB routing options, expanded foot switch functionality, as well as additional DSP effects and improved internal circuitry for class-leading sound, the AG08 is able to support an impressive depth of live streaming applications, as well as offline audio content creation. From single-user talking, gaming, ASMR, voice acting, or vocal/instrument performances, to multiple personnel applications even on the scale of a full-blown variety show, the real-world, real-time functionality of the AG08 will leave your audience wanting more.
Yamaha AG08 White Streaming Mixer/Interface Features:
- Two mic/line inputs and two headphone outputs can be used simultaneously.
- +48 V phantom power on CH1 and two for condenser mics or Dl boxes.
- Four FX preset buttons for CH1, Hi-Z input for guitars on CH2.
- Three stereo inputs with assignable faders, switchable input source for LINE/USB.
- 4-pole mini input/output (TRRS) on CH7/8.
- MONITOR outputs (XLR + TRS) and MIX outputs (TRS.)
- Six sound pads trigger audio samples in real time to add color to live streams.
- Internal circuitry delivers highest sound-quality in the AG series.
- 24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM.)
- Flexible inputs and outputs ideal for live streaming.
- DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer.)
- AG08 Controller (Windows / Mac / iOS) for precise parameter control and detailed audio management.
- 60 mm faders and Mute buttons for each input.
- Footswitch functionality for more versatile system control.
- Windows / Mac support via USB-C connection.
- iOS connectivity via Apple Camera Adapter (requires external USB power supply.)
- Android supported by 4-pole mini input/output (TRRS.)
- Power input (AC/DC adopter 12 V, 1.5 A / USB-C 5 V, 1.5 A.)
- Bundled with Cubase Al, WaveLab Cast, Cubasis LE.
Yamaha Pro Audio AG08 White Product Specifications:
| Input Channels | Mono [MIC/LINE] | 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously |
| Stereo [LINE] | 3 - CH3/4: LR Stereo Phone, CH5/6: LR Stereo RCA/3.5 mm stereo mini (AUX), CH7/8: 4-pole mini in/out (TRRS) | |
| AUX | 1 - Stereo mini | |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| USB | 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW) | |
| Output Channels | Phones | 2 - CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONES |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| Monitor Out | 2 - LR Stereo: XLR, 1/4 TRS Phone | |
| Stereo Out | 1 - MIX: LR stereo TRS Phone | |
| USB | 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. |
|
| Bus | 4 Stereo | |
| Functions | MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2) |
|
| On-board DSP Processors | Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated in AG08 Controller |
|
| USB | 8 IN / 14 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C | |
| Power Requirements | DC 12 V, 1.5 A / USB-C 5 V, 1.5 A | |
| Power Consumption | Max. 7.5 W | |
| Dimensions (W x H x D) | 290 mm (11.5") × 88 mm (3.5") × 222 mm (8.8") | |
| Net Weight | 2.2 kg (4.9 lbs) | |
| Included accessories | AC adapter PA-150B, USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information, Cubasis LE Download Information | |
| Others | Operating Temperature: 0 to + 40 °C | |
Each AG08 White Retail Box Includes:
(1) Yamaha Pro Audio AG08 White 8-Channel Live Streaming Mixer/USB Interface for IOS/Mac/PC
(1) USB cable (type C to C)
(1) AC adaptor PA-150B
(1) Quick Guide
(1) Safety guide
(1) Set of Cubase AI, Wavelab Cast, and Cubasis LE Download Information
*Please note: Customer return/Store display items are not brand new and may have minor imperfections. Due to the nature of a "Customer return item" we cannot guarantee that all box components listed, will be included. Because of this, the item is discounted accordingly and sold at close to cost or below. IDJNOW does guarantee that you will receive all pertinent components for the item to function in Its most basic form (usually just a power cord) and guarantees the item to be free from defect for 30 days from the day you receive it.
