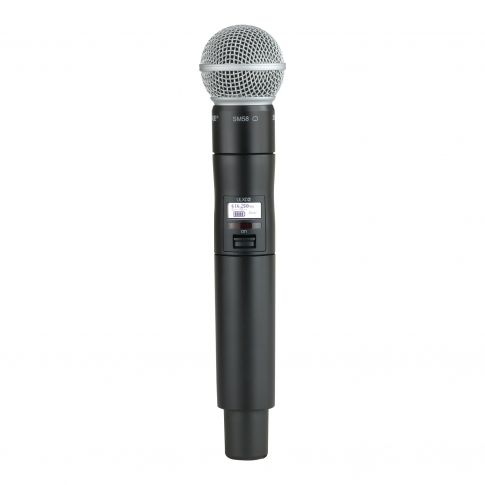

Shure ULXD2/SM58 Handheld Wireless Microphone Transmitter (G50 Band)

With an interchangeable SM58 microphone cartridge, the ULXD2/SM58 delivers uncompromising audio quality and RF performance, and AES 256-bit encryption for secure transmission.

The ULXD2/SM58 Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Shure ULXD2/SM58 Handheld Wireless Microphone Transmitter (G50 Band) Features:

• Works with ULX-D Wireless Systems.
• Offers over 12 hours of continuous battery life with Shure rechargeable battery or 11 hours with alkaline battery.
• AES 256-bit encryption for applications for which secure transmission is needed.
• Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments.
• Optional Shure SB900A lithium-ion rechargeable battery pack provides over 12 hours of battery life, precision metering in hours and minutes, and zero memory effect.
• External charging contacts for docked charging (with the SBC200 Dual Docking Charger.)
• Transmitter Mute Mode repurposes the On/Off switch into a mute switch, enabling audio muting while preserving RF channel presence.
• Backlit LCD with easy to navigate menu and controls.
• Rugged metal construction.
• Frequency and power lockout.

Applications
Live Vocals
Presentation
Theater

A breakthrough in wireless audio quality, Shure digital processing enables ULX-D to deliver the purest reproduction of source material ever available in a wireless system, with a wide selection of trusted Shure microphones to choose from. Extended 20 Hz - 20 kHz frequency range and flat response captures every detail with clarity, presence, and incredibly accurate low end and transient response. With greater than 120 dB, ULX-D delivers wide dynamic range for excellent signal-to-noise performance. Optimized for any input source, ULX-D eliminates the need for transmitter gain adjustments.

ULX-D sets a new and unprecedented standard for spectral efficiency and signal stability. The intermodulation performance of ULX-D is an incredible advancement in wireless performance, enabling a dramatic increase in the number of simultaneous active transmitters on one TV channel. Rock-solid RF signal with zero audio artifacts extends over the entire range. For applications where secure wireless transmission is required, ULX-D offers Advanced Encryption Standard (AES) 256-bit encrypted signal for unbreakable privacy.

For scalability and modular flexibility, ULX-D receivers come in single, dual, and even quad channel versions. The dual and quad channel receivers offer conveniences such as RF cascade, internal power supply, bodypack frequency diversity, audio output channel summing, and Dante digital networking for multi-channel audio over Ethernet. All receivers offer High-Density mode for applications where high channel counts are needed, greatly increasing the amount of simultaneous channels possible over one frequency band.

Advanced Lithium-ion rechargeability provides extended transmitter battery life over alkaline batteries, battery life metering in hours and minutes accurate to within 15 minutes, and detailed tracking of battery health status.

Generations ahead of any other available system in its class, ULX-D brings a new level of performance to professional sound reinforcement.

Breakthrough Technologies
ULX-D Digital Wireless represents an incredible advancement in wireless performance. Shure innovation brings to market new features and technologies that dramatically increase spectrum efficiency, dependability, and signal routing convenience.

Transparent 24-Bit Digital Audio
Signal stability with no audio artifacts extends over the entire 100 meter (300 feet) line-of-sight range using standard supplied dipole antennas.

Networked Control
Ethernet networking enables streamlined setup across multiple receivers, Wireless Workbench integration, frequency coordination via Axient Spectrum Manager, AMX and Crestron control as well as DanteTM digital networked audio.

Lithium Ion Rechargeability
Lithium Ion rechargeability provides up to 11 hours of use on a single charge, while displaying battery life in hours and minutes accurate to 15 minutes.

Signal Stability
The 24-bit / 48 kHz digital audio delivers incredibly clear and accurate capturing of source material. It offers a wide frequency range with flat response for superb low range and transient response.

Advanced Encryption
The 256-bit Advanced Encryption Standard guarantees unbreachable privacy - for all installations where secure transmission is key. A new, unique, randomized encryption key is generated every time encryption is enabled.

Scalable Hardware
ULX-D receivers are available in single, dual and quad channel configurations, along with a wide selection of Shure microphones to accommodate any size installation.

Form Factors
ULX-D bodypack and handheld transmitters provide complete mobility for presenters, while boundary and gooseneck base transmitters accommodate meeting rooms with flexible seating layouts.

High Density Mode
Optimizes the system by running at 1mW RF transmit power and reducing the modulation bandwidth. The result is nearly three times the number of useable frequencies, enabling up to 47 systems in an open 6MHz TV channel.

Total Command of Shure Networked Audio Hardware
Shure SystemOn Audio Asset Management Software was developed for managing mission critical or large-scale deployments of Shure audio hardware, including ULX-D , across corporate and higher education networks from one central platform. SystemOn tracks audio levels, battery life and RF/spectrum status in real time, enabling IT administrators and AV technicians to monitor and control Shure hardware devices remotely using a laptop, smartphone or tablet.

Comprehensive Control for Shure Networked Wireless Systems
Shure Wireless Workbench 6 software offers comprehensive control for networked Shure wireless systems and provides a rich interface to manage every facet of a performance over the network.

• Perform real-time plotting of scan data from networked Shure scanning hardware in a rich graphical environment.
• Monitor and make live remote adjustments to frequency, audio level, RF muting and other equipment settings.
• Configurable interference and hardware alerts.
• Assign compatible frequencies to networked Shure wireless devices.
• Automatically calculate backup frequencies.

System Interaction Over WiFi via iOS Devices
Command and control your wireless on the go and roam the performance space while monitoring key Shure wireless system parameters in real time from any iOS device.
Real-time, precision monitoring of critical device parameters, including:

• RF level metering.
• Audio level metering.
• Transmitter battery level.
• Frequency Assignments with band, group and channel info.
• RF interference indicator.
• Encryption status.
• Frequency diversity status.
