About This Product

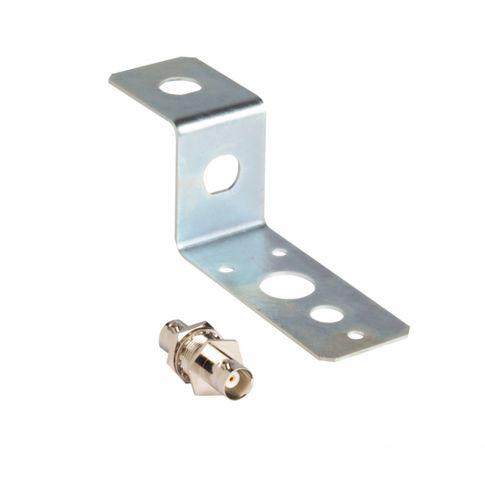

Shure UA505 Mounting Bracket and BNC Adapter for Remote Antenna Mounting

Mounting Bracket and BNC Adapter for Remote Antenna Mounting (contains One).

Shure UA505 Specifications

The steel mounting bracket (part #53B8493) has a uniform thickness of 0.62" (16 mm).

The width of the entire bracket is 1.66" (42 mm).

The length of the entire bracket is 4.66" (118 mm).

The length of the longer bracket section, that has five holes, is 3.0" (76 mm). This longer section has three holes for mounting screws. Each screw hole has a diameter of 0.18" (4.6 mm). There are also two holes for mounting on a mic stand: one hole has a diameter of 0.64" (5/8" - 16 mm) and one hole has a diameter of 0.38" (3/8" - 9.5 mm).

There are two shorter bracket sections, each having one hole; these sections form a 90 degree angle. The length of each section is 1.66" (42 mm). Each shorter section has a hole to mount a BNC bulkhead connector. The diameter of each hole is 0.51" (13 mm).

The UA505 Box Includes:

(1) mounting bracket
(1) Bulkhead adapter
(1) Bulkhead adapter unit
