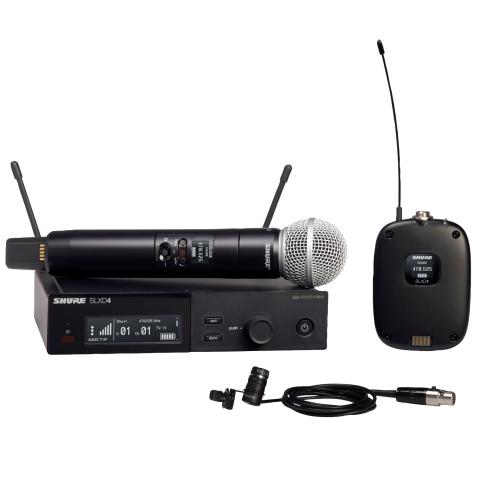

Shure SLXD124/85 Wireless System with SLXD2/58 Handheld Transmitter & WL185 Lavalier Microphone (H55 Frequency Band)

SKU #: SLXD124/85-H55
$999.00
As low as $100/mo or 0% APR with Affirm Logo
Item Backordered

Expected June 30, 2025

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

Featuring the legendary SM58 Cardioid Dynamic Microphone capsule on the SLXD2 handheld transmitter and the SLXD1 wireless bodypack transmitter with WL185, the SLXD124/85 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances. The SLXD124/85 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required. Ships with SLXD4 single-channel receiver, SLXD2/58 handheld transmitter, SLXD1 bodypack transmitter and WL185 cardioid lavalier microphone with antenna and rackmount accessories and 4 AA batteries.

SLX-D Digital Wireless delivers clear audio and stable RF performance with easy setup and rechargeability options. SLX-D is built to handle a wide range of applications, from day-long conferences to nighttime performances. Automatic channel scan and IR sync are even easier with a guided setup feature programmed into each SLX-D wireless receiver. Manage multiple-system group scans and firmware updates with third-party setup and control via Ethernet. Operate up to 32 compatible systems per 44 MHz band for up to 8 hours from 2 AA batteries, or add Shure SB903 rechargeable batteries and charger accessories. SLX-D provides <120 dB dynamic range and stable, efficient RF transmission for a selection of handheld, lavalier and headset microphones.

Shure SLXD124/85 Wireless System Features:

  • Transparent 24-bit digital audio.
  • Extended 20 Hz to 20 kHz frequency range (microphone dependent.)
  • 120 dB dynamic range.
  • Digital predictive switching diversity.
  • 44 MHz tuning bandwidth (region dependent.)
  • 32 available channels per frequency band (region dependent.)
  • Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band.
  • Easy pairing of transmitters and receivers over IR scan and sync.
  • Automatic channel scan.
  • Link multiple receivers for group scan and firmware updates via Ethernet port.
  • Third-party setup and control via Ethernet.
  • Elegant and easy-to-use interface with high-contrast LCD menu.
  • Guided setup mode installed in each SLX-D receiver.
  • Transmitters use 2 AA batteries or Shure SB903 rechargeable battery.
  • WL185 features wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum.
  • Interchangeable cartridges that provide an optimal choice for each application.
  • Rotatable tie-clip that pivots in 90 degree increments for placement flexibility.
  • Supplied snap-fit foam windscreen that controls breath noise and stays on securely.
  • Supplied dual tie clip holds two microphones for dual miking applications.

Shure SLXD124/85 Product Specifications:
System
RF Carrier Frequency Range: 470–937.5 MHz, varies by region (See Frequency Range and Output Power table)
Working Range: 100 m (328 ft)
RF Tuning Step Size: 25 kHz, varies by region
Image Rejection: >70 dB, typical
RF Sensitivity: -97 dBm at 10-5 BER

Audio
Latency: 3.2 ms
Audio Frequency Response: 20 Hz – 20 kHz (+1, -2 dB)
Audio Dynamic Range: 120 dB at 1% THD, A-weighted, typical
Total Harmonic Distortion: <0.02%
System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (with respect to the ring of the 6.35 mm output) output.
Mic Offset Range: 0 to 21 dB (in 3 dB steps)

Temperature Range
Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)

SLXD1
Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
Dimensions: 98 x 68 x 25.5 mm (3.86 x 2.68 x 1 in.), H x W x D
Weight: 89 g
Housing: PC/ABS

Audio Input
Connector: 4-Pin male mini connector (TA4M)
Configuration: See drawing for details
Impedance: 1 MΩ
Maximum Input Level: 8.2 dBV (2.57 Vrms , 7.27 Vpp)
Preamplifier Equivalent Input Noise (EIN): -118 dBV

RF Output
Antenna Type: 1/4 wave
Occupied Bandwidth: <200 kHz
Modulation Type: Shure proprietary digital
Power: 1 mW or 10 mW

WL185
Type: Condenser (electret bias)
Frequency Response: 50 to 17,000 Hz
Output Impedance: 1800 Ω
Sensitivity (1 PA = 94 dB SPL): -45.5 dBV/Pa
Maximum SPL: 130.5 dB SPL
Output Noise (A-Weighted): 28.0 dB SPL
Dynamic Range: 102.5 dB
Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter

Each SLXD124/85 Retail Box Includes:
(1) SLXD2/58 Handheld Transmitter
(1) SLXD1 Bodypack Transmitter
(1) WL185 Lavalier Microphone
(2) AA batteries
(2) 1/4 wave antennas
(2) 2 BNC cables
(1) Zipper bag
(2) BNC bulkhead Adapters
(1) Rackmount kit
(1) User guide
(1) Power supply
