Shure QLXD4=-V50 Digital Wireless Receiver (V50 Frequency Band)
$747.00
Reg.
You save
Backordered
Expected June 30, 2026
Key Highlights
- 64 MHz tuning bandwidth (region dependent).
- More than 60 preset compatible channels per frequency band (region dependent).
- Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel.
- Digital predictive switching diversity ensures solid RF connection.
Get Expert Help Before You Buy
Get fast answers on setup, compatibility, and system matching.
✔ No pressure. Just real help.
Your request was saved successfully.
|

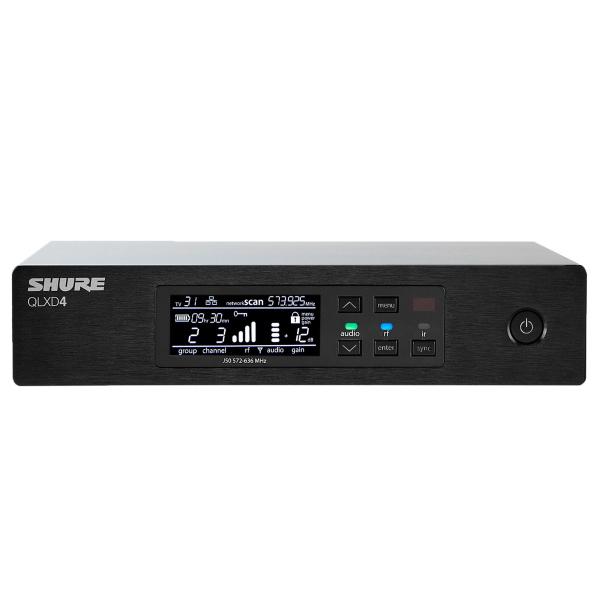

Digital wireless receiver combines professional features with streamlined set-up and operation. Features include Automatic Channel scan, Networked Channel Scan, digital predictive switching, and AES 256 encryption for security. With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.
Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.
Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters. Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus Channels Mobile App.
Shure QLXD4 Digital Wireless Receiver Features:
- 64 MHz tuning bandwidth (region dependent).
- More than 60 preset compatible channels per frequency band (region dependent).
- Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel.
- Digital predictive switching diversity ensures solid RF connection.
- AES 256-bit encryption for secure wireless transmission.
- Up to 60 dB of adjustable audio gain.
- High-contrast LCD menu and controls with lockout feature.
- Audio and RF LED meters with peak indicator.
- Detachable ½ wave antennas.
- Mic / line switchable XLR output.
- ¼" Instrument output.
- Durable aluminum construction with brushed finish.
Shure QLXD4 Product Specifications:
| General | |
|---|---|
| Dimensions | 41 × 197 × 151 mm, H × W × D |
| Weight | 777 g, without antennas |
| Housing | Steel |
| Power requirements | 12 V DC @ 0.4 A, supplied by external power supply (tip positive) |
| RF Input | |
| Spurious Rejection | > 80 dB, typical |
| Connector Type | BNC |
| Impedance | 50 Ω |
| Audio Output | |
| Gain Adjustment Range | -18 to +42 dB in 1 dB steps |
| Configuration | 1/4" (6.35 mm): Impedance balanced (Tip = audio, Ring = no audio, Sleeve = ground) XLR: Balanced (1 = ground, 2 = audio +, 3 = audio −) |
| Impedance | 1/4" (6.35 mm): 100 Ω (50 Ω Unbalanced)>br/> XLR: 100 Ω |
| Full Scale Output | 1/4" (6.35 mm): +12 dBV XLR: LINE setting = +18 dBV, MIC setting = −12 dBV |
| Mic/Line Switch | 30 dB pad |
| Phantom Power Protection | 1/4" (6.35 mm): Yes XLR: Yes |
| Networking | |
| Network Interface | Single Port Ethernet 10/100 Mbps |
| Network Addressing Capability | DHCP or Manual IP address |
| Maximum Ethernet Cable Length | 100 m |
Each QLXD4 Retail Box Includes:
(1) Shure QLXD4=-V50 Digital Wireless Receiver (V50 Frequency Band)(1) PS24 Power supply
(2) 1/2 Wave Antenna
(2) BNC Cable
(2) BNC Bulkhead Adapter
(1) Rackmount Kit
(1) Rackmount Bracket-Long
(1) Rackmount Bracket-Short
(1) Link plate
(4) Receiver Rubber Feet
