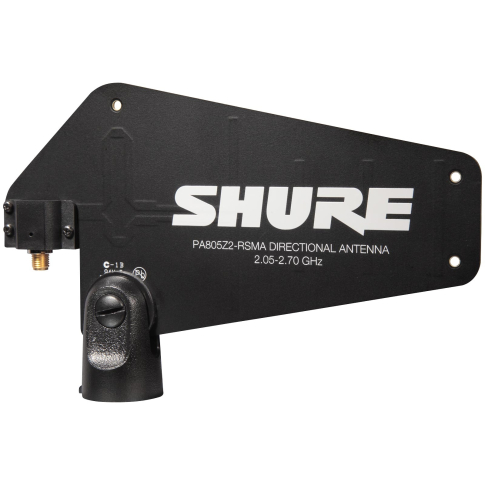

Shure PA805Z2-RSMA Passive Directional Antenna (GLX-D)
SKU #: PA805Z2-RSMA
$284.00
Reg.
Item Backordered
Expected September 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
A key part of any GLX-D Advanced Digital Wireless installation, PA805Z2-RSMA works exclusively with GLX-D Advanced. Includes 10' RSMA cable.
Shure PA805Z2-RSMA Passive Directional Antenna (GLX-D) Features:
- Improved wireless reception: 8 dB of passive directional antenna gain.
- Improved rejection of interference from 2.4GHz sources.
- 24dB front-to-back ratio for improved rejection of off access signals.
- Includes 10' RMSA cable.
The antenna attaches to a microphone stand or to the separate wall-mounting bracket, and delivers the following benefits over standard omnidirectional half-wave antennas:
- Reduced interference
- Improved RF signal-to-noise ratio
- Antenna gain (8 dBi) helps overcome cable loss
Shure PA805Z2-RSMA Specifications:
Frequency Range
<2:1 Voltage Standing Wave Ratio (VSWR)
2050 to 2700 MHz
Antenna Gain
@ 2.45 GHz, typical
8 dBi
3 dB Horizontal Beam Width
100 degrees
Efficiency
@2.45 GHz, typical
89 %
Impedance
50 Ω
Polarization
Linear
Front-to-back ratio
@ 2.45 GHz, typical
24 dB
Connector Type
Reverse SMA
Dimensions (H x W x D)
4.1" x 6.4" x 1" (105 x 164 x 27.5 mm)
Net Weight
0.15lb / 2.5 oz.
Each PA805Z2-RSMA Retail Box Includes:
(1) Shure PA805Z2-RSMA Passive Directional Antenna (GLX-D)
(1) 10' RSMA cable
