Shure BLX88=-J11 Dual Wireless Receiver for BLX Wireless System (J11 Frequency Band)
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

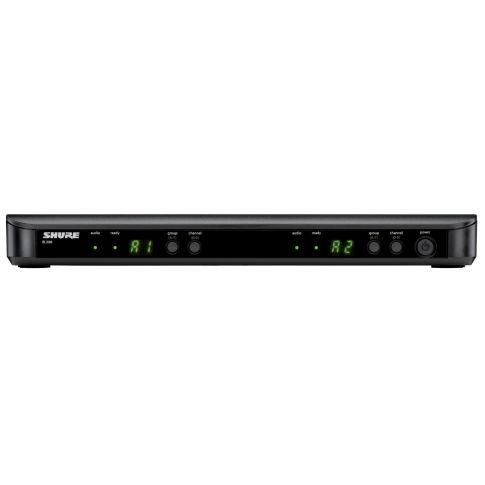

The durable BLX88 offers simple setup, intuitive controls, and microprocessor-controlled internal antenna diversity. One-touch QuickScan frequency selection quickly locates the best open frequency in case of interference. For use with BLX Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Shure BLX88 Features:
- XLR and ¼ output connectors
- Microprocessor-controlled internal antenna diversity
- Two-color audio status indicator LED
- Green: Normal audio levels
- Red: Excessive audio levels (overload / clipping)
Shure BLX88 Specifications:
System
Working Range: 91 m (300 ft) Line of Sight (Actual range depends on RF signal absorption, reflection and interference.)
Audio Frequency Response: 50 to 15,000 Hz (Dependent on microphone type)
Total Harmonic Distortion (Ref. ±33 kHz deviation with 1 kHz tone): 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F) (Battery characteristics may limit this range.)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX88
Output Impedance XLR connector: 200 Ω
Output Impedance 6.35 mm (1/4") connector: 50 Ω
Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone) XLR connector: –27 dBV (into 100 kΩ load)
Audio Output Level (Ref. ±33 kHz deviation with 1 kHz tone) 6.35 mm (1/4") connector: –13 dBV (into 100 kΩ load)
RF Sensitivity: -105 dBm for 12 dB SINAD, typical
Image Rejection: >50 dB, typical
Dimensions: 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
Weight: 15.1 oz. (429 g)
Housing: Molded ABS
Power Requirements: 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
Each BLX88 Retail Box Includes:
(1) BLX88 Dual Wireless Receiver
(1) PS24 Power Supply
