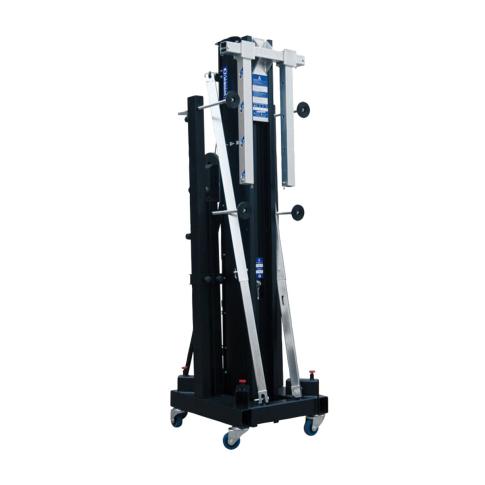

Work Pro WTS 506 Front Loading Lifting Tower (Max Height 20 FT)
Expected July 31, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The WTS Series means a change of concept within the front load towers, as it introduces the new Structural Mode. This Structural Mode does not use the winch to lift the load, but involves lifting the load with the help of a manual or electric hoist. That is, the tower is used as a structure that is all locked to the required working height. Once the tower is raised to this desired height, the load must be raised with the hoist. The Structural Mode performs improved loading capacities.
Furthermore, the WTS Series incorporates the innovative Dynamic Overlap system. Dynamic Overlap is an innovative solution that increases the resistance of the towers and reduces their deflection, making that each tower section overlaps with the previous one at different distances, as with trees in nature. This means that all efforts are concentrated in the same way in all the sections of the tower. Thanks to this, the tower can withstand greater efforts with less deflection.
Work Pro WTS 506 Front Loading Lifting Tower Features:
- Modes of operation: Mechanism Mode and Structural Mode.
- Four extensible profiles made of extruded aluminum.
- Reinforcing bars on the back and front of the lifter for additional reinforcement.
- Castors at the base of the lifter.
- Dynamic Overlap system.
- Available color: Black.
- Compatible accessories: AWS 402, AWS 302, AWS 401.
Work Pro WTS 506 Product Specifications:
| WTS Model | WTS 506 | |
| Folded height | 1.93 | m |
| 6.33 | ft | |
| Base width | 0.58 | m |
| 1.90 | ft | |
| Base length | 0.52 | m |
| 1.71 | ft | |
| Maximum height | 6.08 | m |
| 19.95 | ft | |
| Minimum fork height | 0.70 | m |
| 2.29 | ft | |
| Unfolded diameter | 2.71 | m |
| 8.89 | ft | |
| Frontal side width | 2.11 | m |
| 6.92 | ft | |
| Rear side width |
1.55 | m |
| 5.09 | ft | |
| Fork length | 0.61 | m |
| 2.00 | ft | |
| Number of profiles | 4 | |
| Minimum load capacity | 25 | Kg |
| 55.12 | Lb | |
| Max.load as mechanism | 510 | Kg |
| 1124.36 | Lb | |
| Max. load as structure | 510 | Kg |
| 1124.36 | Lb | |
| Net weight | 150 | Kg |
| 330.7 | Lb | |
| Winch | 900 | Kg |
| 1984.2 | Lb | |
| Cable diameter | 6 | mm2 |
| Noise emissions | 71 | dB |
Each WTS 506 Retail Box Includes:
(1) Work Pro WTS 506 Front Loading Lifting Tower (Max Height 20 FT)
