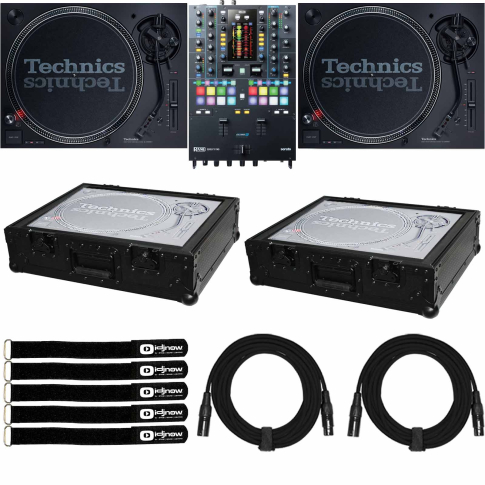

(2) Technics SL-1200MK7 Direct-Drive Turntables with Rane SEVENTY TWO 2-Deck Performance Mixer Package
Expected November 30, 2024
Technics SL-1200MK7 Turntable Features:
- Precision Coreless Direct-Drive Motor.
- Eliminates Cogging.
- Reverse-Play Function.
- Highly Rigid Platter with Low Vibration.
- S-Shaped Tonearm with Counter Weight.
- No-Click Pitch Control + Pitch Reset.
- 33-1/3, 45, & 78 rpm Speeds.
- Detachable Terminals: Phono, GND, Power.
- Includes Dust Cover, 45 Adapter, and Headshell.
- Also included: Slipmat, Cart Hardware, and Power Cord.
The Rane SEVENTY-TWO has been designed in collaboration with champion DJs and their crews all over the world. This battle-ready flagship offers the high standards of performance and construction that people expect from RANE, along with ground-breaking technology. With the RANE SEVENTY-TWO, two DJs can battle it out with their laptops simultaneously through the two USB computer connections. With a brand-new 4.3-inch color touchscreen, the SEVENTY-TWO not only shows Serato's moving waveforms and their cue points, it also brings a much-needed interactive experience to FX work flows, with two internal FLEX FX engines and stacked Serato effects. Die-cast aluminum toggles and customizable MPC pads unleash the creativity that all battle DJs have in them. Importantly, the SEVENTY-TWO is the first time that users will experience RANE's brand-new MAG THREE fader. Dramatically updating their patented, industry-changing Mag Fader design, the new MAG THREE fader offers a unique touchless, tension-adjustable fader with perfect tactile feel and precision, combined with a long and reliable life. It makes for a DJ experience simply unavailable anywhere else.
Rane SEVENTY TWO 2-Deck Performance Mixer with Touch Screen Features:
- Solid steel construction-built like a tank for non-stop, heavy-duty use.
- (3) New MAG THREE contactless tension-adjustable faders for crossfader and channel faders with reverse, contour controls, and cut-in adjustment.
- 4.3" Touchscreen for moving-wave display, X/Y FX control, song selection and user customizations.
- Dual FLEX FX engines, one for each channel.
- Stacked Serato FX with internal post-fader FLEX FX.
- Dual die-cast aluminum FX paddles with 180-degree rotation.
- Chain-integrated Serato software effect control plus one internal FLEX effect per channel.
- Dual USB connections for DJ handoffs.
- 16 Akai Pro MPC performance pads w/RGB backlight, adjustable threshold and aftertouch, with independent mode controls per deck.
- Industry First - assignable USB controller inputs for RANE TWELVE motorized battle controller.
- Serato DJ DVS license built in, with Serato DVS vinyl included.
Full-color display with capacitive multi-touch (2.1” x 3.7” / 54 x 95 mm (wxd)) (4.3” / 109 mm (diagonal)) 16x velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each) 3x MAG THREE tension-adjustable faders (2 channel/line faders, 1 crossfader) Dimensions (wxdxh): 11.2” x 17.5” x 4.25” (28.4 x 44.5 x 10.8 cm) 12.0 lbs. (5.46 kg)
The direct drive system uses a slow-rotating motor to directly drive the platter. This system has various advantages. It offers high performance, such as rotation accuracy and powerful torque, does not require replacement of parts and maintains high reliability over a long period of time. However, the direct drive system was said to on occasion produce a rotation irregularity called cogging. For the SL-1200MK7, a new coreless direct drive motor was developed. This motor employs a coreless stator. The removal of the iron core from the stator eliminated the root cause of cogging. Furthermore, the magnetic force of the rotor magnets was improved to the highest possible level, and the gap between the coreless stator and rotor magnets was optimized, thus achieving high torque performance equaling that of the SL-1200MK5. Boasting smooth rotation and powerful torque, this motor reproduces sound accurately and faithfully from the groove on an analogue record.
Highly Sensitive Tonearm Accurately Reads the Signal Stored in the Record Groove
The tonearm, which is responsible for accurately reading the signal by tracking the groove on the phonorecord, is a static-balance universal S-shape tonearm, another Technics tradition. The tonearm tube is made of lightweight, high-rigidity aluminum. The bearing section of the gimbal suspension construction tonearm consists of a machined housing and high-precision bearing to assure excellent tracking performance with minimum stylus jumping, even in harsh playing conditions such as scratching.
Two-layer Structure Platter with Improved Vibration Damping Performance
The platter on which a vinyl record is placed features a two-layer structure with deadening rubber on the entire back surface to eliminate unwanted resonance in the aluminum die-cast platter. The platter offers high rigidity and outstanding vibration-damping characteristics to prevent harmful vibration from being transmitted to the record and delivers clear sound.
High Rigidity Cabinet and High Damping Insulator for Thorough Shut-out of All Vibrations
The chassis, an essential part for reducing external vibrations, inherits the audio quality enhancement technology fostered through the development of high-end turntables. The aluminum die-cast chassis is rigidly integrated with a special material consisting of ABS mixed with glass fiber to achieve a two-layer construction. The combination of this special high-rigidity material and a metal chassis raised the rigidity and vibration-damping performance to higher levels, realizing a robust cabinet for beautiful sound reproduction.
The insulator is comprised of a spring and rubber to provide optimal frequency characteristics. This not only assures high sound quality and superb howling resistance, but also effectively shuts out external vibrations under high sound level conditions.
Detachable Power/Phono Cable Terminals Prevents Cable Discontinuity
The power and phono cable terminals allow detachment of the cables. The phono terminals are gold-plated to minimize sound quality degradation. Since the terminals allow disconnection of the cables, maintenance of the cables is easier, and your favorite phono cable can be connected to let you enjoy the change in sound quality resulting from a different cable.
Starting Torque/Brake Speed Adjustment Function
The SL-1200MK7 employs the newest motor control technology refined through the development of Blu-ray disc products. Utilizing a microcomputer, this advanced motor control technology ensures high performance in normal rotation and also responds accurately to a wide range of DJ play styles, such as scratching. The starting torque and brake speed can be adjusted individually to suit the user's preference.
Pitch Control Function Enables Accurate and Stable Pitch Adjustment
The rotation speed can be set to 33-1/3 rpm, 45 rpm or 78 rpm. The pitch control function allows fine adjustment of the rotation speed within.Technics SL-1200MK7 Turntable Specifications
Technology for Rotational Stability
Coreless Direct Drive Motor
High-Precision Motor Controller
Construction for Vibration Tolerance
High-Dumping Turntable Platter
Rigid Cabinet Construction
High-Dumping Insulator
High Quality Parts
High Sensitive Tonearm
Detachable PHONO Terminal
Technics Definitive Design
Inherited SL-1200 Series
Turntable Section
Drive Method: Direct Drive
Turntable Speeds: 33 1/3, 45rpm (with switch 78 rpm)
Starting Torque: 0.18N・m / 1.8kg・cm (1.56 lbs-in)
Build-up Characteristics: 0.7 s. from standstill to 33 1/3 rpm
Wow and Flutter: 0.025% W.R.M.S.
Turntable Platter: Aluminum die-cast
Diameter:332mm (13-5/64")
Weight:Approx. 1.8kg (4.0 lbs) (Including slipmat and slipsheet)
Tonearm Section
Type: Universal, Static Balance
Effective Length: 230mm (9-1/16")
Overhang: 15mm (19/32")
Tracking Error Angle:
Within 2° 32' (at the outer groove of 30cm(12") record)
Within 0° 32' (at the inner groove of 30cm(12") record)
Offset Angle: 22° • Arm Height Adjustment Range: 0 - 6mm
Stylus Pressure Adjustment Range: 0 - 4g (Direct Reading)
Head Shell Weight: Approx. 7.6g
Applicable Cartridge Weight Range:
[without auxiliary weight] 5.6 - 12.0g (14.3 - 20.7g (including head shell))
Head Shell Terminal Lug: 1.2mmφ 4-pin terminal lug
Terminals
Audio Output: PHONO (Pin Jack) x 1, EARTH TERMINAL x 1
General
Power Supply: AC120 V, 60 Hz
Power Consumption: 8W (Approx. 0.2W (Standby))
Dimensions (W x H x D): 453 x 169 x 353mm (17-27/32 × 6-21/32 × 13-29/32 inch)
Weight: Approx. 9.6kg (Approx. 21.2lbs)
Accessories:
Turntable, Slipmat, Slipsheet, Dust cover, EP record adaptor, Balance weight, Head shell, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's ManualRane SEVENTY TWO 2-Deck Performance Mixer Specifications
Display
Pads
Faders
Outputs
Inputs
Connections
Digital Audio
Power
Dimensions
Weight
Hook and Loop Cable Ties Specifications
Dimensions:
8" Length x 3/4" Width
20cm Length x 2cm Width
(2) Technics SL-1200MK7 Direct Drive Professional Turntables
(2) Slipmats
(2) Slipsheets
(2) Dust covers
(2) EP record adaptors
(2) Balance weights
(2) Head shells
(2) Screw sets for cartridges
(2) PHONO cables
(2) PHONO earth leads
(2) AC power supply cords
(2) Properly Fitting & Durable Protective Black Universal Turntable Cases
(1) Rane SEVENTY TWO 2-Deck Performance Mixer with Touch Screen
(1) Power Cable
(2) Serato NoiseMap Control Vinyl Records
(2) Serato NoiseMap Control CDs
(1) Serato Pitch 'n Time Download Card with Serial Number
(2) USB Cables
(1) Set of Rane Stickers
(2) 20FT Sure-Fit XLR Connecting Cables
(5) 8" Reusable Hook and Loop Cable Ties
