Sennheiser XSW-1-908-A Wireless Instrument Microphone Set - Frequency Range: A (548 - 572 MHz)
SKU
XSW-1-908-A
$379.00
Item Backordered
Questions? Call 1-800-355-7746 or Chat below
Only at IDJNOW

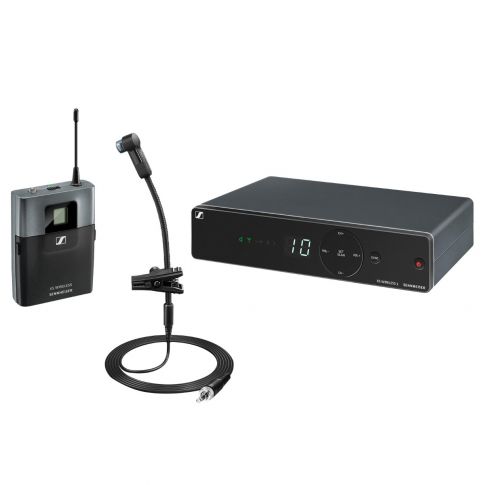

A powerful performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 BRASS SET is an easy to use all-in-one wireless system, especially designed to provide a powerful live sound for brass instruments. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a rugged condenser gooseneck microphone.
Sennheiser XSW-1-908-A Wireless Instrument Set Features:
- Versatile gooseneck microphone with outstanding sound reproduction from the renowned evolution microphone series.
- Antenna-switching diversity reception.
- Integrated antennas.
- Automatic frequency management and synchronization via remote channel for easy setup.
- Selectable UHF frequencies within a large bandwidth.
- Up to 10 compatible channels.
Sennheiser XSW-1-908-A Product Specifications:
ReceiversDimensions: approx. 200 x 42 x 127 mm
Weight: approx. 340g
Power supply: Receiver: 12 V DC nom. / 300 mA
AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)
Transmitter
Dimensions: approx. 71 x 96 x 28 mm
Weight: approx. 95g
Power supply Transmitter: 2 AA size batteries, 1.5 V
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Microphone: condenser
THD, total harmonic distortion: ≤ 0.9%
Pick-up pattern: cardioid
Signal-to-noise ratio: ≥ 103 dBA
RF output power: 10 mW
Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: wideband FM
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range A: 548-572 MHz, GB: 606-630 MHz
Sensitivity: < 3 µV at 52 dB(A)rms S/N
SPL for peak deviation: 147 dB
Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
Diversity principle: antenna switching diversity via internal antennas
Each XSW-1-908-A Retail Box Includes:
(1) Sennheiser Receiver EM-XSW 1(1) Sennheiser Gooseneck microphone e908T
(1) Sennheiser Bodypack transmitter SK-XSW
(1) Power supply NT 12-5 CW
(2) AA batteries
