Sennheiser EW-DX-MKE-2-SET-Q1-9 Digital Wireless Lavalier Microphone System | Q1-9 Frequency Range
Most orders placed by 2pm ET ship in only 2-3 days (business days only).

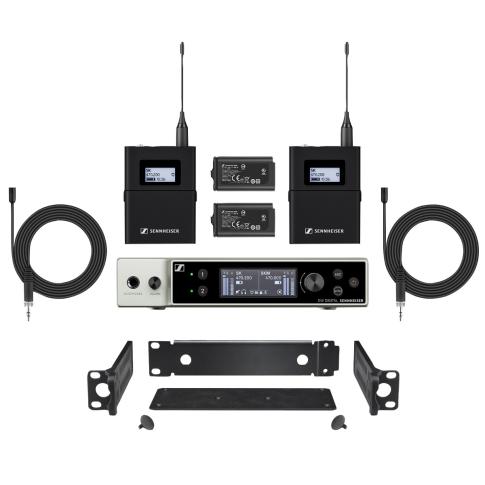

This wireless lavalier microphone set consists of 2 x EW-DX SK (wireless bodypack transmitter), 2 x MKE 2 (omni-directional clip-on lavalier microphone), 1 x EW-DX EM 2 rackmout receiver (2 channels) and 2 x BA 70 rechargeable batteries. The stationary two-channel receiver with switching diversity technology shall be for use with up to two companion transmitters as part of a digital wireless RF transmission system. The receiver shall feature Bluetooth Low Energy (BLE) at a frequency range between 2402 and 2480 MHz for remote controlling the devices via a control App for iOS and Android. The receiver shall feature an automatic frequency setup function with spectrum scan functionality in order to establish an equidistant frequency grid with 146 channels in standard mode and 293 channels in Link Density Mode. The audio frequency response shall be between 20 Hz and 20 kHz (-3 dB). Audio total harmonic distortion (THD) shall be ≤ -60 dB for 1 kHz @ -3 dBfs input level. Dynamic range shall be 134 dB. System latency shall be 1.9 ms.
Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. Multiple hardware and software options create networkable solutions for nearly any stage or campus, while equidistant channel spacing, auto scan, and Bluetooth Low Energy sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance-even from your pocket-with tools like Sennheiser's Control Cockpit, Wireless Systems Manager, and Smart Assist app. The future of wireless is here. EW-DX takes the complexities out of wireless audio by employing sophisticated tools that streamline the setup and monitoring process. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allow you to pack more channels more reliably, without problematic intermodulation interference. Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Wireless Systems Manager (WSM) and Sennheiser Control Cockpit for a detailed system view in complex, networked environments.
Sennheiser EW-DX-MKE-2-SET Wireless Lavalier Mic System Features:
- EW-DX EM 2 is a 2 channel half rack (9.5'.)
- Up to 88 MHz switching bandwidth.
- PoE IEEE 802.3af Class 3.
- Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode.
- Network enabled for control with Sennheiser Control Cockpit/media control system through a number of 3rd party modules.
- Clear and easy focused user interface with OLED display.
- Ethernet connectivity (IPv4 and IPv6.)
- Secure AES 256 encryption.
- External PSU 12V/1A.
- All-metal housing.
- EW-DX SK features 3.5 mm jack or 3-pin connector variants.
- 10mW RF power with up to 100m/328ft working range.
- Charging contacts for in-device charging with CHG 70N.
- Persistent eInk display - parameters visible on screen even when device is not powered on.
- Programmable mute switch - customize the device depending on your professional needs.
- Extended runtime with lithium ion batteries - up to 12 hours operation time.
- Mic input trim control.
- Metal housing.
Sennheiser EW-DX-MKE-2-SET Product Specifications:
Audio link frequency ranges:
Q1-9 470.2 - 550 MHz
R1-9 520 - 607.8 MHz
S1-10 606.2 - 693.8 MHz
S2-10 614.2 - 693.8 MHz
S4-10 630 - 693.8 MHz
U1/5 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
V3-4 925.2 - 937.3 MHz
V5-7 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
X1-6 1350.2 - 1398.8 MHz
X9-18 1435.2 - 1524.8 MHz
Y1-3 1785.2 - 1799.8 MHz
Bluetooth Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range: 134 dB
System latency: 1.9 ms
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity: 5 - 95 % (non-condensing)
EW-DX EM 2 (Rack Receiver)
Input voltage: 11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
Input current: ≤ 1 A
Transmit power (radiated): BLE: max. 10 mW EIRP
Audio output power: 18 dBu max.
Headphone output: 2x 70 mW @ 32 Ω
Ethernet: RJ-45 socket, IEEE802.3 / 100Base-TX (half+full duplex) / 10Base-T (half+full duplex) / (CAT5e or higher)
Dimensions: 212 x 44 x 189 mm (8.35" x 1.73" x 7.44")
Weight: approx. 1000 g (2.2 lbs) (without antennas and power supply)
MKE 2 (Lavalier Microphone)
Transducer principle: pre-polarized condensor microphone
Pick-up pattern: omni-directional
Sensitivity (free field, no load) (1 kHz): 5 mV/Pa +- 3 dB
Max. SPL at 1 kHz: 142 dB
Frequency response: 20 to 20,000 Hz
Equivalent noise level A-weighted: 26 dB
Connector: 3.5 mm jack
Cable length: approx. 1.60 m (62.99")
Supply voltage: 7.5 V
EW-DX SK (Bodypack Transmitter)
Input voltage: 2.0 - 4.35 V
Input current: < 300 mA
Power supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
Occupied bandwidth: 200 kHz
Transmit power (radiated): Audio link: 10 mW ERP, (Range Y1-3: 12 mW ERP,) LD mode: 10 mW ERP, BLE: max. 10 mW EIRP
Dimensions (without antenna) 63.5 x 85 x 20 mm / (2.5" x 3.35" x 0.79")
Weight (without batteries) approx. 115-120 g (0.26-0.27 - lbs)
Each EW-DX-MKE-2-SET Retail Box Includes:

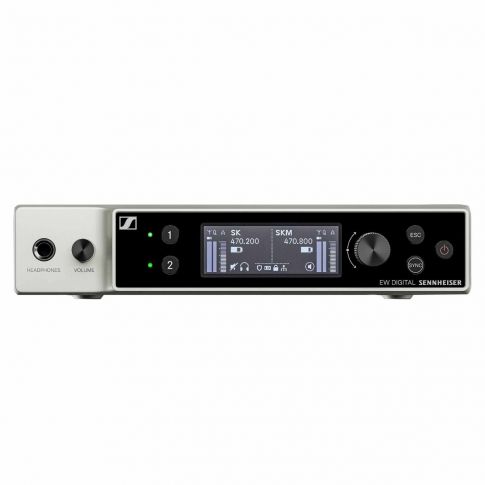

(1) Sennheiser EW-DX EM 2 rack receiver

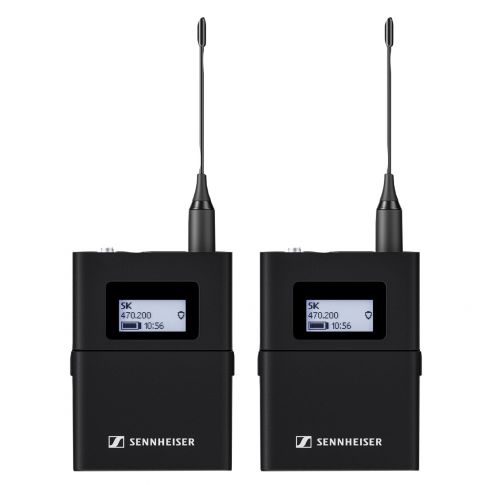

(2) Sennheiser EW-DX SK bodypack transmitters

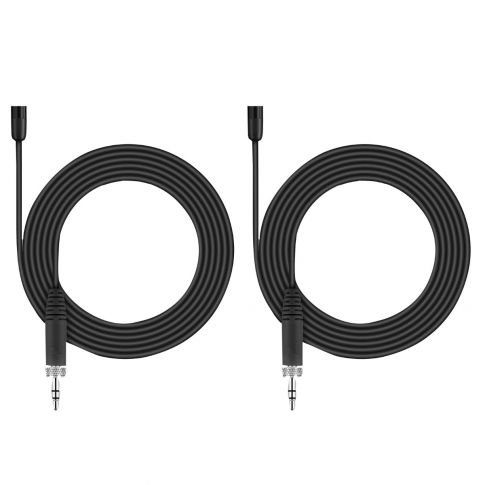

(2) Sennheiser MKE 2 lavalier microphones
(2) Rod antennas
(1) Power supply with country adapters
(2) Mic clamps

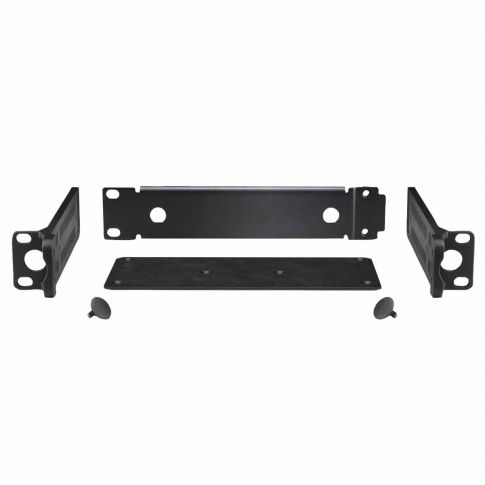

(1) GA 3 rackmount set
(4) Rubber feet

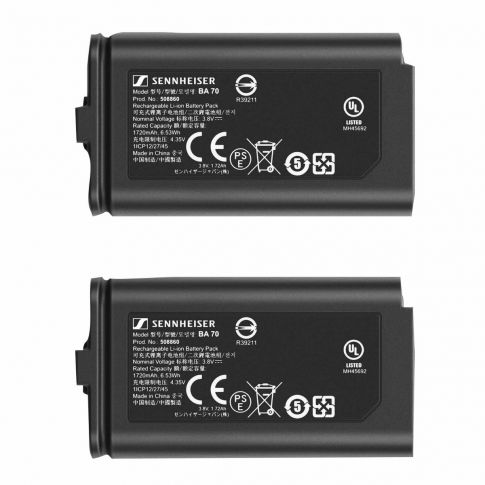

(2) BA 70 rechargeable battery packs
(1) Safety guide
(1) Manufacturer declaration sheet
