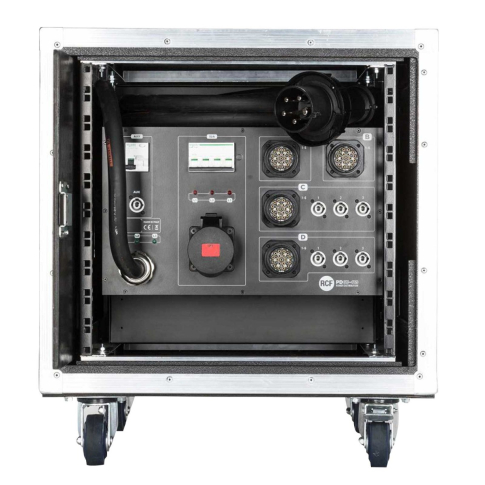

RCF PR 63 Power Distribution Rack with LKS Connectors
Questions? Call 1-800-355-7746 or Chat below
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The Power Rack PR-63 features the PD 63 A-419 power distribution with a 63 A Cekon power input with 5 m fixed cable. The three-phase power is distributed in a 32 A Cekon output, 4 x LKS19 output, 6 x Powercon output, 1 Powercon auxiliary output to power the CR 16-ND Control Rack. All outputs are equipped with individual RCBOs (Residual Current-operated Circuit-Breaker with Overcurrent protection) for maximum reliability. In case of damage, only the faulty output is missed while the rest of the system continues to function.
RCF PR 63 Power Distribution Rack with LKS Connectors Features:
- 63 Ampere Cekon power input with 5 m cable.
- 32 Cekon outputs.
- 4 x LKS 19 outputs.
- 6 x Powercon outputs + 1 Powercon auxiliary output.
- 24 x individual power line RCBOs.
- 32 Ampere and Auxiliary individual front RCBOs.
- Tour Grade flight case construction.
RCF PR 63 Product Specifications:
General Specifications
Power Input Connectors: 63 Ampere Cekon with 5 m Cable
Outuputs Connector: 32 Cekon, 4 x LKS 19
Powercon Outputs: 6 + 1 Auxiliary
Individual Power line RCBOs: 24
Standard Compliance
Safety agency: CE compliant
Size/Weight
Weight: 65.8 kg / 145.06 lbs
Shipping Information
Package Height: 570 mm / 22.44 inches
Package Width: 610 mm / 24.02 inches
Package Depth: 630 mm / 24.8 inches
Package Weight: 68.2 kg / 150.36 lbs
Each PR 63 Retail Box Includes:
(1) RCF PR 63 Power Distribution Rack with LKS Connectors
