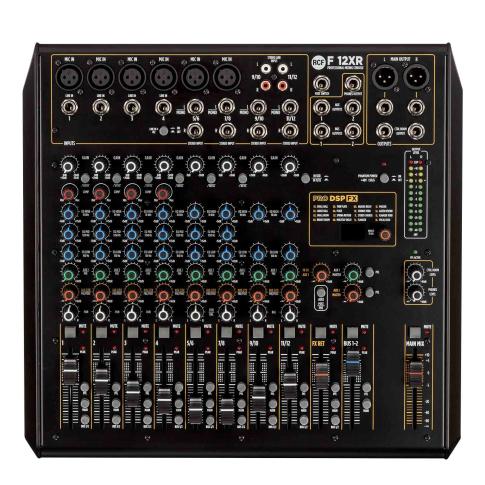

RCF F12-XR 12 Channel Mixer with Multi-FX and Recording

SKU #: F12-XR
Reg. $419.00
As low as $39/mo or 0% APR with Affirm Logo
In Stock - Almost Gone

Most orders placed by 2pm ET ship same day (business days)

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The F 12XR features 6 Mic Preamp Inputs, 4 Mono Line Inputs, 4 Stereo Line Inputs plus multi-FX and Recording via USB port, with balanced +28dB main output (Stereo XLR + TRS) and 4 single control compressors. The Mono channels are provided with 3-band EQ and Stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 Aux sends (1 pre,1pre/post fader). It also features a stereo output bus and 60mm faders.

Premium RCF next-generation F Series mixers stages high-quality sound in five formats ranging from 6 to 24 channels. Aesthetically pleasing panel and high contrast graphics, premium quality connections and easy routing make it possible to mix your music with minimal technical expertise and the best results. Housed in a sturdy metal chassis, each mixer builds on a fully balanced and low noise audio path from input to output, with single control compressors to limit signal peaks and a modern sounding EQ. Also features State-of-the-art 3 band EQ on mono channels 2 bands EQ on stereo channels for precise and exquisitely transparent shaping of sound, and high quality preamplifiers with phantom power, inspired by the E-Series Mixers, that offer high quality sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket. The channel 4 features Hi-Z input level for musical instruments such as acoustic instruments with piezo transducers, electric bass and guitars or stompboxes

RCF F12-XR 12 Channel Mixer Features:

  • Sturdy Metal Chassis.
  • PRO DSP FX onboard with 16 presets.
  • Stereo Recording and Playback via USB port.
  • Balanced main output audio path from input to output.
  • 4 single control compressors.
  • Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy.
  • Internal Universal Power Supply.

RCF F12-XR Product Specifications:
Electrical specifications
FREQUENCY RESPONSE: 20 Hz ÷ 20 kHz
THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): <0,02% A-Weighted
POWER SUPPLY: Internal
VOLTAGE REQUIREMENTS: 100 V - 240 V
POWER CONSUMPTION (W): 24 W

Inputs
GAIN RANGE: 0 dB ÷ -50 dB
GAIN SELECTION: 20 dB ÷ -30 dB
HI-Z LINE INPUTS IMPEDANCE (MOHM): 1 Mohm
HI-Z LINE INPUTS: 1
INPUT NOISE LEVEL (DBU A-WEIGHTED): -124 dBu A-Weighted
MIC INPUTS IMPEDANCE (KOHM): 14 kohm
LINE: 4
LINE INPUT IMPEDANCE (KOHM): 21 kohm
LOW CUT: 80 Hz
MIC: 6
PHANTOM POWER +48V: Yes
STEREO LINE: 4
STEREO LINE GAIN SELECTION: 20 dB ÷ -30 dB
STEREO LINE INPUT IMPEDANCE: 15 kohm

Outputs
MAIN MIX: 1
CONTROL ROOM: Yes
FX SEND: 1
AUX OUTPUT: 2
GROUP OUT: 1
PHONES: 1

Outputs specifications
MAIN OUT LEVEL (DBU): 28 dBu
AUX OUT LEVEL (DBU): 28 dBu
GROUP OUT LEVEL (DBU): 28 dBu
PHONES OUT IMPEDANCE (OHM): 150 ohm

Compressors
RCF COMPRESSORS: n° 4 Single Control compressors on channels 1 to 4

EQ
INPUT CHANNELS EQ: 2 Shelving / 1 Generic
DESCRIPTION: High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ 1,250 kHz Bell Low: +/-15 dB @ 100 Hz Shelving

Auxiliary sends
AUX: 1 PRE/POST
FX POST: 1

Internal Effects
SEND EFFECTS: 1

USB audio
TYPE: B
PLAY TRK: 2
REC TRK: 2
SUPPORTED SAMPLE RATE (KHZ): 44.1, 48.0 kHz

Other features
FOOTSWITCH: Yes

Standard compliance
CE MARKING: Yes

Physical specifications
CABINET/CASE MATERIAL: Metal
COLOR: Black

Size
DEPTH: 355 mm / 13.98 inches
HEIGHT: 97 mm / 3.82 inches
WEIGHT: 4.5 kg / 9.92 lbs
WIDTH: 373 mm / 14.69 inches

Shipping information
PACKAGE DEPTH: 425 mm / 16.73 inches
PACKAGE HEIGHT: 140 mm / 5.51 inches
PACKAGE WEIGHT: 5.5 kg / 12.13 lbs
PACKAGE WIDTH: 400 mm / 15.75 inches

Each F12-XR Retail Box Includes:
(1) RCF F12-XR 12 Channel Mixer with Multi-FX and Recording
