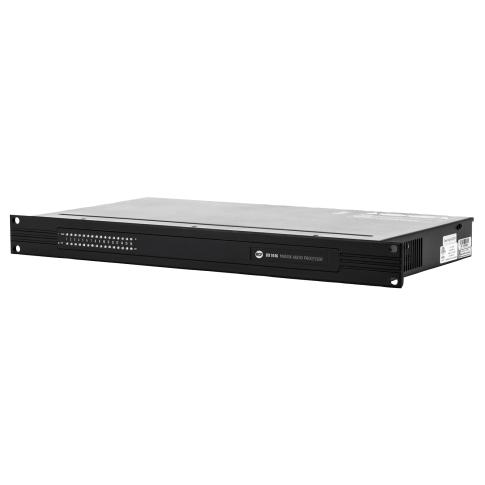

RCF DX 1616 Matrix Audio Processor - Dante Equipped
Questions? Call 1-800-355-7746 or Chat below
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
DX 1616 AES-Dante remote software. This network-based software designed for Microsoft Windows and Mac OSX allows the management of the DX 1616 Matrix Sound Processor. Pre-Amp configuration, selecting source types like analog, AES/EBU, Dante. Designing Input groups for festival applications. Input source processing with EQ, delay and compressor. Powerful 16x16 router to assign processing tasks to flexible output patches.
RCF DX 1616 Matrix Audio Processor - Dante Equipped Features:
- Hybrid architecture DSP.
- 48 KHz sampling, 40 bit floating point engine.
- 16 x 16 I/O matrix.
- Dante enabled network audio transport.
- 8 AES/EBU inputs - 8 AES/EBU outputs.
- Ethernet connectivity and control.
- Maximum latency 3 ms.
- Easy to use software GUI.
RCF DX 1616 Product Specifications:
Audio Performance
Frequency Response (-3dB): 20 Hz ÷ 22 kHz
Crosstalk: <-100 dB
Distortion (THD+N) @ 1 kHz nominal power: <0.001 %
Dynamic range: >110 dB
Common Mode Rejection Ratio (50 Hz to 10 kHz): >100 dB
Digital Audio Performance
Resolution: 40
Sampling rate: 48
A/D - D/A converters: 24
Propagation delay: 3
Input Section
Total number of inputs: 17
Balanced: 17
Mono: 16
Mic+Line inputs: 16
Mic+Line connectors: Euroblock
Mic+Line Phantom: 21 V DC - 44 V DC
Digital inputs: 1
Digital connectors: RJ45
Digital type: DANTE
Output Section
Signal output number: 116
Signal output connectors: Euroblock
Processing
DSP: Yes
EQ Filters: Yes
Delay: Yes
Tone controls: Yes
High-pass filter: 20 Hz ÷ 20000 Hz
Crossover: 20 ÷ 20000 Hz
Controls
Configuration: PC Software
Number of programs/presets: 70
Protections
Cooling: Convection/Forced
Fuses: Yes
Power Requirement
Operating voltage: 90-240 V~ 50/60Hz
Power consumption (MAX): 200 W
Standard Compliance
Safety agency: CE compliant
Physical Specifications
Cabinet/Case Material: Metal
Color: Black
Rack mounting: 19", 1U
Size/Weight
Height: 44 mm / 1.73 inches
Width: 483 mm / 19.02 inches
Depth: 229 mm / 9.02 inches
Weight: 3.31 kg / 7.3 lbs
Shipping Information
Package Height: 378 mm / 14.88 inches
Package Width: 88 mm / 3.46 inches
Package Depth: 597 mm / 23.5 inches
Package Weight: 4.73 kg / 10.43 lbs
Each DX 1616 Retail Box Includes:
(1) RCF DX 1616 Matrix Audio Processor - Dante Equipped
