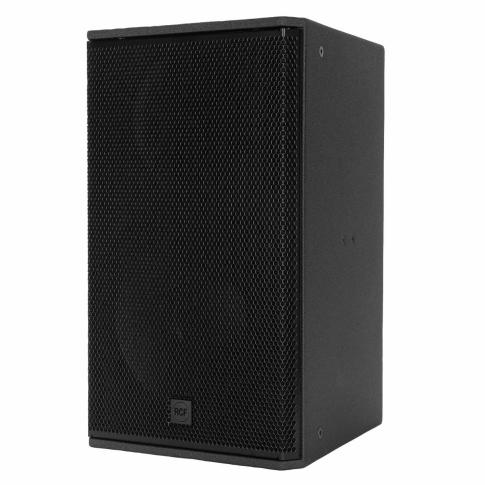

COMPACT C 45 is a multipurpose two-way point source speaker, suitable for a wide range of near and mid-distance applications. The combination of a 4" neodymium compression driver, a 15" neodymium woofer, and a constant directivity rotatable waveguide produces coherent 100° x 50° coverage for the listening area with high SPL, and distortion-free sound. The sleek and lightweight wood cabinet uses a special polyurea coating and a robust powder-coated grille with protective foam. Optional mounting accessories allow for wall or ceiling installation. The compression driver voice-coil design with titanium dome provides very natural sound with high power handling and the best durability over time. This allows lowering the usual crossover point for a perfect vocal performance at mid frequencies, also improving coupling with the low-frequency transducer. Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. RCF's woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels.

The special waveguide design allows the deployment of COMPACT C speakers with accurate control of the directional characteristics. In difficult acoustic environments, intelligibility is significantly increased.The speaker also features a 100° x 50° rotatable constant directivity waveguide. Using the optional HN-KIT COMPACT C 32 C 45 accessory, it is possible to replace the speaker horn with two different horns and change directivity to 100° x 25° or 60° x 25°. COMPACT C flexibility makes it a smart choice for a wide range of applications. Combining high-quality birch plywood cabinets with a 100° x 50° rotatable constant directivity waveguide, the speaker can be installed either horizontally or vertically. The sleek cabinet features a robust polyurea coating and is easy to be flown-, wall-, or truss-mounted using the multiple rigging points available and optional accessories. The back panel provides two 'Neutrik Speakon NL4' (4-pole) plugs. Compact C Series is composed of two-way point source speakers for near and mid-distance high power applications. Each model combines a compact size with very high output for accurate speech and music reproduction. All cabinets are made with high-quality birch plywood, house a neodymium woofer with a titanium/neodymium compression driver, and a 100° x 50° rotatable constant directivity horn. Speakers can be installed either horizontally or vertically, with optional mounting accessories for walls or ceilings.

RCF COMPACT C 45 Passive 15" Compact Speaker Features:

  • 700 W power handling (RMS.)
  • 138 dB max SPL.
  • 48 ÷ 20000 Hz frequency range.
  • 100° x 50° constant directivity coverage angle.
  • 1 x 15" high power neodymium woofer.
  • 1 x 4.0" v.c. neodymium compression driver.
  • High quality birch plywood cabinet.
  • Steel front grille with clothing.
  • Installation points available on top, bottom, rear and side panels.
  • SPEAKON in/out connectors.

RCF COMPACT C 45 Product Specifications:

Acoustic Specifications
Frequency Response (-10dB): 48 Hz ÷ 20000 Hz
Max SPL @ 1m: 138 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 50°
Directivity index Q: 10
System Sensitivity: 98 dB

Power Section
Amplification: Full Range
Nominal Impedance: 8 ohm
Power Handling: 700 W RMS
Peak Power Handling: 2800 W PEAK
Recommended Amplifier: 1400 W
Protections: Dynamic Active Mosfet
Crossover Frequencies: 1100 Hz

Transducers
Compression Driver: 1 x 1.4" neo, 4.0" v.c
Woofer: 15" neo, 4.0" v.c

Input/Output Section
Input connectors: Speakon
Output connectors: Speakon

Standard Compliance
Safety agency: CE compliant

Physical Specifications
Cabinet/Case Material: Birch plywood
Hardware: 4 x M8, 14 x M10
Grille: Steel with clothing
Color: Black - RAL 9005

Size
Height: 705 mm / 27.76 inches
Width: 418.8 mm / 16.49 inches
Depth: 460 mm / 18.11 inches
Weight: 32.5 kg / 71.65 lbs

Shipping Information
Package Height: 755 mm / 29.72 inches
Package Width: 472 mm / 18.58 inches
Package Depth: 513 mm / 20.2 inches
Package Weight: 35 kg / 77.16 lbs

Each COMPACT C 45 Retail Box Includes:

(1) RCF COMPACT C 45 Passive 15" Two-Way Compact Professional Speaker
