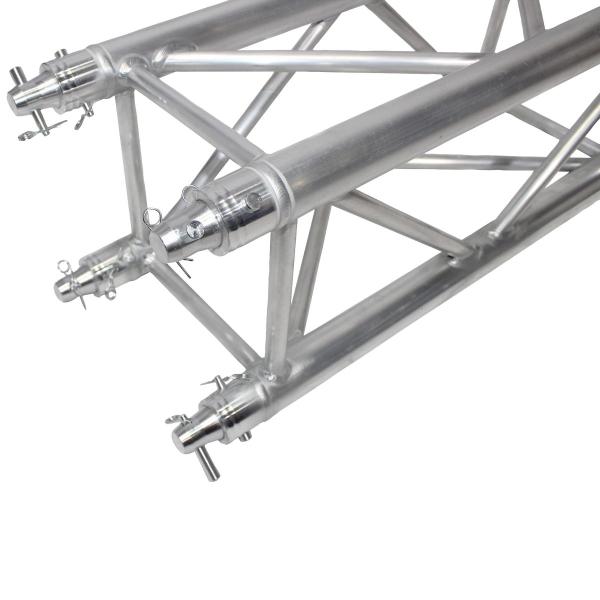

ProX XT-SQ1148 11.48 FT (3.5M) F34 Square Truss Segment 2mm Wall

SKU #: XT-SQ1148
Reg. $649.99
As low as $59/mo or 0% APR with Affirm Logo
Item Backordered

Expected May 31, 2025

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The ProX XT-SQ1148 Truss is designed for high-frequency usage or installations, which demands higher loading. This trussing is Ideal for rental, touring, and exhibition companies. ProX is one of the most trusted truss manufacturers in the live entertainment industry and is engineered and manufactured to the highest standards of safety and performance. ProX Live Performance Gear specializes in high-quality, general-purpose aluminum lighting and stage trussing in F31/F32/F34 and 12" bolted configurations designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications.

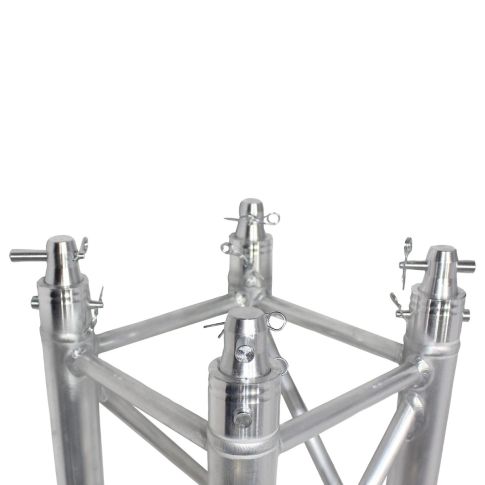

The ProX Conical Coupling System allows for genderless trusses, providing a more precise lineup of chords and fastening points, while the conical shape of the couplers helps maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly/disassembly quick and easy, all you need is a small brass or aluminum hammer. The XT-SQ series easily mates with most other brands of trusses of the same size and connector type and is available in a variety of lengths to suit your designs. ProX's outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups. ProX manufactures their truss with EN-AWT6 6082 Aluminum for safety and strength. The 2mm wall thickness assures durability and strength and can be used for spans up to 52.5 Ft. (16 M). ProX XT-SQ series F34 trussing is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates, and much more to complete your ideas and make your design an impressive rigging project or a simple show booth.

ProX XT-SQ1148 11.48 FT F34 Square Truss Segment Features:

  • Manufactured to Exacting Specifications in their own factory.
  • Actual Height: 11.48Ft. (3.5 Meter) Square Truss Segment.
  • Actual Weight: 60 Lbs.
  • Includes One Connecting Hardware Set.
  • Material: EN-AWT6 6082 Aluminum.
  • TUV Certified Aluminum Welding.
  • ProX Truss products utilize industry standard dimensions to work with many other F34 trussing products with conical connectors.

ProX XT-SQ1148 Product Specifications:

ProX XT-SQ Series Dimensions:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb/9.5kg per 3.28 ft / 1 meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm

Shipping Dimensions & Weight:
Box 1 of 1: 13.00"H x 140.00"W x 13.00"L
Shipping Weight: 46.00 lbs

Suggested Shipping Method:
LTL

UPC:
804589613916

Each XT-SQ1148 Retail Box Includes:

(1) ProX XT-SQ1148 11.48 FT (3.5M) F34 Square Truss Segment 2mm Wall
(1) Set of Connecting Hardware
