ProX XT-BP3636A 36 x 36 x 5/16" Aluminum Base Plate Fits Most Manufacturers F34 Trussing with Conical Connectors
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

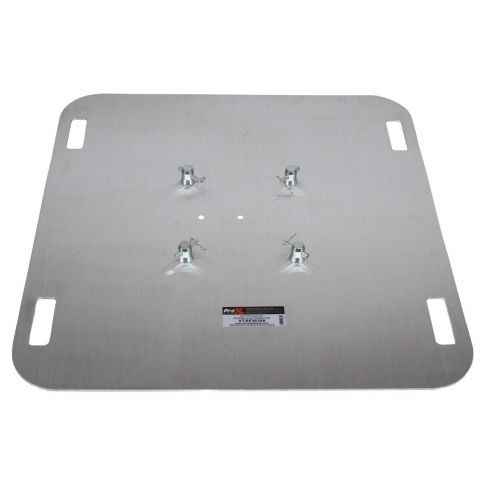

The ProX XT-BP3636A 36" x 36" aluminum base plate is made with 8mm AWT6 6082 aluminum. Protect your base plates with fabric carrying bags, available separately. Includes connecting hardware set. ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.
ProX XT-BP3636A 36 x 36 x 5/16" Base Plate Features:
- Manufactured in ProX's own factory.
- Material: 8mm EN-AWT6 6082 Aluminum.
- TUV Certified Manufacturing.
- Fits most manufacturers with F34 Conical Couplers.
ProX XT-BP3636A Product Specifications:
XT-SQ Series Dimensions:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9.5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
To Fit:
Standard Size F34 Truss Configurations.
Dimensions:
36.00"L x 36.00"W x 0.32"H
Weight: 39.00 lbs
Shipping Dimensions:
37.00"L x 37.00"D x 3.00"H
Shipping Weight: 44.00 lbs
Suggested Shipping Method:
Parcel
UPC:
019372406334
Each XT-BP3636A Retail Box Includes:
(1) ProX XT-BP3636A 36 x 36 x 5/16" Aluminum Base Plate Fits Most Manufacturers F34 Trussing with Conical Connectors
(1) Connecting hardware set
