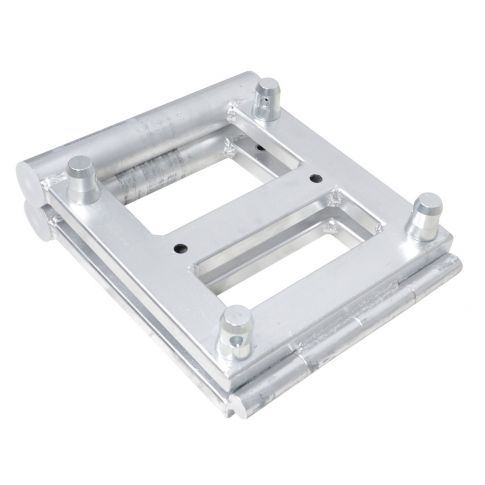

The ProX XT-BH180 Adjustable Plate-Hinge Truss Plate from the most trusted staging support systems in the industry, and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. It adjusts from 0° to 180° and fits ProX 12" SQ F34 Conical trussing. Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup. This product can provide a universal solution for truss angles. ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers trussing.
The ProX XT-BH180 is the first trussing hinge from ProX that adjusts from 0° to 180° for unique truss construction projects. There is a built-in adjustable arm to lock the desired angle between sections of truss and Junction Boxes. The superior construction quality of ProX trussing products guarantees many years of trouble-free use. At the heart of the system is square truss that utilizes a standard conical connector system, which easily mates with other brands of trussing of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.
ProX XT-BH180 Adjustable Bookhinge Features:
- Manufactured in ProX's own Factory.
- Allows angles not possible with standard trussing corners.
- One Side Conical Couplers Included.
- Material: 10mm EN-AWT6 6061 Aluminum.
- TUV Certified Aluminum Welding.
ProX XT-BH180 Product Specifications:
XT-SQ Series Dimensions:
Height: 11.42in / 290mm
Width: 11.42in / 290mm
Weight: 21lb per 3.28 ft / 9.5kg per meter
Main Tube: 2in / 50mm
Wall Thickness: .08in / 2mm
Braces: .75in / 20mm
Tolerance Free Standard Conical Connector
Main tube wall thickness of .08in
XT-SQ Series | F34 Conical Truss
14.50"L x 12.00"W x 4.00"H
Weight: 21.00 lbs
15.50"L x 13.50"D x 4.50"H
Shipping Weight: 22.00 lbs
Each XT-BH180 Retail Box Includes:
(1) ProX XT-BH180 180 Degree Adjustable Bookhinge
