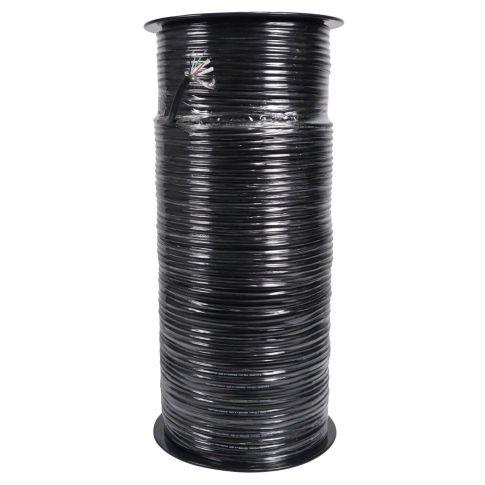

ProX XC-DMX5P1000FT 1000FT High Performance DMX Male 5-Pin Bulk Spool Cable

ProX XC-DMX5P1000FT is a 1000 Ft. High Performance DMX Male 5-Pin Bulk Spool Cable. ProX Live Performance Gear Cables are made to last you an entire lifetime. Each cable is made with high-quality materials and delivers a clear signal and connection each time. These cables are made by professionals for professionals like you. Each cable is built for High Performance and to withstand heavy everyday use.

ProX cables are plated with gold and silver connectors for superior signal transfer. 12 AWG – Tin Copper Conductors (TCC) which provide an optimum signal transfer. They test every single cable to make sure each one performs to the best of its ability, which includes high performance and flexibility that can handle heavy everyday use. These cables are specifically designed to provide many years of crystal-clear sound and durability.

ProX XC-DMX5P1000FT 1000FT 5-Pin Bulk Spool Cable Features:

• 22 AW TC-Tinned Copper Conductor.
• ​Flexible PVC Jacket.
• Limited Lifetime Warranty.
• Cable Type: DMX Spool Cable.
• Connector 1: N/A.
• Connector 2: N/A.
• Specification: Balanced.
• Polyethylene insulation.
• Twisted Quad Data Cable.
• Polyethylene inner jacket.
• Duofoil (100% coverage.)
• Cotton plus a tinned copper braid shield (85% coverage.)
• PVC jacket for durability.
• Nominal Characteristic Impedance: 110 Ohms.
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft.
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft.
• Nominal Velocity of Propagation: 66%.
• Nominal Delay: 1.6 Nanoseconds per foot.
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft.
• Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft.
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft.
• Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C.
• Operating Temperature Range: (-30 degrees C To + 75 degrees C.)
