Obsidian Control NX Wing Onyx OS Lighting USB Control Surface - Store Demo
Expected July 31, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

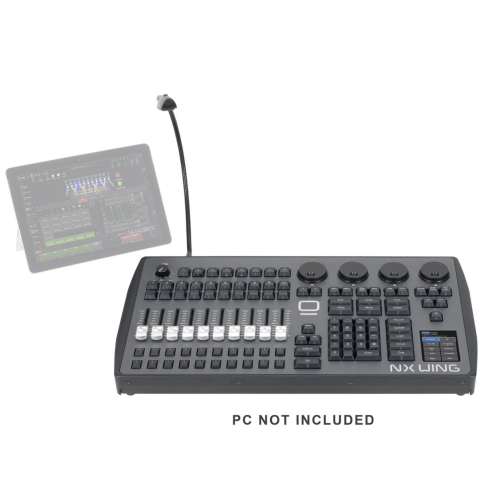

NX Wing is the complementary USB control surface to Obsidian Control Systems ONYX platform. Based on the NX 2 console, the NX Wing utilizes the same rugged design and components with an identical footprint and layout. Through its USB connection the NX Wing provides a responsive, professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX Wing and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly. NX Wing provides extensive connectivity with 4 DMX Ports, MIDI and Timecode ports while unlocking 64 Universes of control when connected to ONYX on a PC.
Obsidian Control NX Wing Onyx OS Lighting USB Features:
- Fully featured control surface, portable and lightweight.
- 10 Playbacks, Encoders, Keypad and internal 3.5" touchscreen.
- DMX, Timecode and Midi Connectivity.
- 64 Universe License for ONYX included.
- Plug and Play USB device for any PC with ONYX.
Obsidian Control NX Wing Specifications:
Surface
10 x 60 mm playback faders, each with 4 x function-assignable buttons
8 x customizable multi-function keys
Playback Select button
Master Go section with Go, Pause, Snap and Release
4 x digital rotary encoders with push function and status LED for fixture parameter control
4x screen mounted digital rotary encoders with push
3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
Grand master rotary fader and button
Blind/HighLight/Last/Next buttons
Full numerical keypad and command keys
Connections
4 x DMX / RDM Universe In/Out: 5-pin locking XLR
MIDI in/out/thru (MIDI Showcontrol, MIDI notes, MIDI Timecode): 5pin DIN
SMPTE Timecode In/Out: 3-pin XLR
12 VDC power supply input: 4-pin XLR
Desk lamp: XLR 12V
USB In: USB 2.0 B
Size / Weight
Length: 11.9" (300mm)
Width: 21.3" (540mm)
Height: 3.9" (99mm)
Weight: 10.2 Lbs. (4.6 kg)
Electrical
12VDC 11A
132W Max Power Consumption
Each NX Wing Retail Box Includes:
(1) Obsidian Control NX Wing Onyx OS Lighting USB Control Surface
(1) RGB LED desk lamp, angular XLR connector, 13"
(1) Dust Cover
(1) USB Cable
(1) External PSU (12V 5A)
(1) 1.5 m power cable, 3-pin IEC to CEE 7/7
*Please note: Customer return/Store display items are not brand new and may have minor imperfections. Due to the nature of a "Customer return item" we cannot guarantee that all box components listed, will be included. Because of this, the item is discounted accordingly and sold at close to cost or below. IDJNOW does guarantee that you will receive all pertinent components for the item to function in Its most basic form (usually just a power cord) and guarantees the item to be free from defect for 30 days from the day you receive it.
