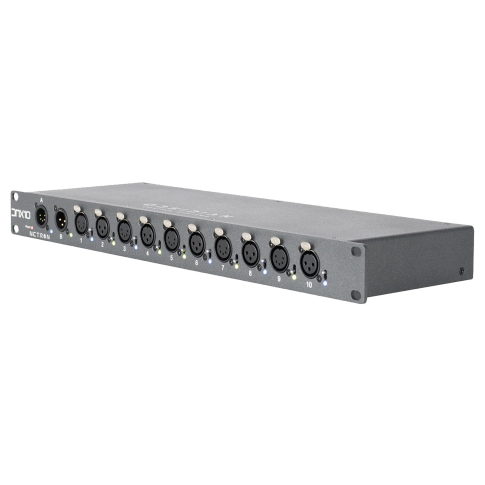

Obsidian Control Systems DMX10-53 Rackmount 10-Port DMX Splitter (5- and 3-Pin)
SKU #: DMX10-53
$460.00
Reg.
In Stock - Ships in 3-5 Days
Most orders placed by 3pm ET ship in 3-5 business days
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The DMX10-53 is a rackmount 10-port DMX Splitter with dual inputs and freely assignable 5 and 3pin XLR DMX outputs. Utilizing long life toggle switches every port is routed to either the A or B input, providing flexibility to accommodate any situation. The NETRON DMX10 is made from a rugged metal chassis featuring impact resistant paint and a lightweight yet solid construction. The DMX10 is ideally suited for installations and touring applications that do not require RDM communication and is available in 5pin, 5/3pin combo XLR configurations.
Obsidian Control Systems DMX10-53 10-Port DMX Splitter Features:
- 5pin (A) and 3pin (B) XLR DMX Input.
- 10 isolated 5 and 3pin XLR DMX Outputs.
- A/B routing per output port.
- LED feedback for In/Out/A/B/Power.
- Industrial strength powder-coated finish.
- Lightweight and rugged rackmount housing.
Obsidian Control Systems DMX10-53 Product Specifications:
Mounting
Rackmount
Front Connections
5pin DMX Input (A)
3pin DMX Input (B)
(5) 5pin Opto-Isolated DMX Outputs
(5) 3pin Opto-Isolated DMX Outputs
(Toggle between A & B)
Back Connections
Locking Power In
Physical
Length: 6.1" (155.9mm)
Width: 19.0" (482.0mm)
Height: 1.7" (44.0mm)
Weight: 1.50 kg (3.31 lbs)
Electrical
100-240 V nominal, 50/60 Hz, 0.1A
1A Fuse
Approvals / Ratings
cETLus / CE / UKCA / IP20 (pending)
Each DMX10-53 Retail Box Includes:
(1) Obsidian Control Systems DMX10-53 Rackmount 10-Port DMX Splitter (5- and 3-Pin)
(1) 1.5m Power Cable (EU or US version)
(2) Wallmount Plates
(2) DIN-Rail Clamps
