Be the first to review this product

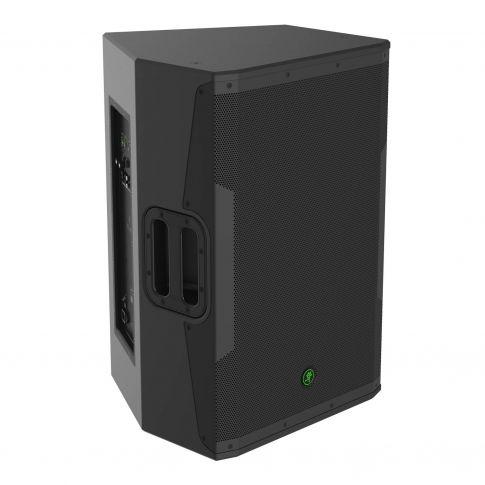

Mackie SRM650 1600 Watt 15" Powered Loudspeaker
SKU
SRM650
$749.99
Item Backordered
Questions? Call 1-800-355-7746 or Chat below
Only at IDJNOW
Mackie SRM 1600W High-Definition Powered Loudspeakers deliver a new level of SRM ruggedness, output, clarity and simplicity. With two powerful full-range boxes and a chest-pounding subwoofer, SRM loudspeakers deliver the modern output, amazing sound and proven durability you demand from your system.
Mackie SRM650 15" Powered Loudspeaker Features:
- 1600W system power paired with custom transducers deliver gig-level volumes with room to spare.
- 15" high-output LF driver / 1.4" titanium dome compression driver.
- "Built-Like-A-Tank" all-wood, internally-braced cabinet delivers unmatched road-worthiness.
- Rugged 18-gauge steel grille and fine-textured, sleek black cabinet finish.
- Front ported for maximum low-end extension and punch.
- High-Definition Audio Processing for professional sound with unmatched clarity.
- Patented acoustic correction developed with touring geniuses at EAW.
- Precision 2-way digital crossover.
- Driver time alignment and phase correction.
- Quick one-button Speaker Mode selection for application-specific voicing (PA, DJ, Monitor and Soloist).
- Effortlessly eliminate nasty feedback with one-button automatic Feedback Destroyer.
- Integrated 2-channel mixer featuring dual Mackie Wide-Z inputs.
- Handles anything from mics to guitars to mixers with a single twist of the gain knob.
- Includes stereo RCA inputs for easy connection to music source.
- Perfect for the singer/songwriter, plug in and leave the mixer at home.
- Smart Protect DSP kicks in to protect your investment when things get pushed a little too hard.
- Monitor-specific 60-degree angle and voicing mode perfect for cutting through on stage.
Mackie SRM650 Specifications:
| Acoustic Performance | |
| Frequency Response (-3 dB): | 50 Hz - 17 kHz |
| Frequency Response (-10 dB): | 39 Hz - 20 kHz |
| Max Peak SPL: | 133 dB |
| Crossover Point: | 3 kHz |
| Dispersion [H x V]: | 90° x 50° |
| High-Frequency Section | |
| Voice Coil Diameter: | 1.0" / 25 mm |
| Horn Entry Diameter: | 1.4" / 36 mm |
| Diaphragm Material: | Titanium |
| Magnet Material: | Ferrite |
| Low-Frequency Section | |
| Woofer Diameter: | 15" / 381 mm |
| Voice Coil Diameter: | 3.0" / 76 mm |
| Diaphragm Material: | Paper |
| Magnet Material: | Ferrite |
| Power Amplifiers | |
| System Power Amplification Rated Power: | 800 watts rms 1600 watts peak |
| Low Frequency Power Amplifier Rated Power: | 400 watts rms 800 watts peak |
| Low Frequency Power Amplifier Rated THD: | < 1% |
| Low Frequency Power Amplifier Cooling: | Convection |
| Low Frequency Power Amplifier Design: | Class D |
| High Frequency Power Amplifier Rated Power: | 400 watts rms 800 watts peak |
| High Frequency Power Amplifier Rated THD: | < 1% |
| High Frequency Power Amplifier Cooling: | Convection |
| High Frequency Power Amplifier Design: | Class D |
| Input / Output | |
| Channel 1 Mic-Line: | 8 kΩ balanced |
| Channel 1 1/4" TRS, Wide-Z: | 1 MΩ unbalanced |
| Channel 2 Mic-Line: | 8 kΩ balanced |
| Channel 2 1/4" TRS, Wide-Z: | 1 MΩ unbalanced |
| Channel 2 RCA: | 25 kΩ unbalanced |
| Thru: | Male XLR balanced [Passive when the Ch 1 / Mix switch is in the "out" (Ch1) position] [Active when the Ch 1 / Mix switch is in the "in" (Mix) position] |
| Line Input Power | |
| US detachable line cord: | 100 - 120 VAC, 50-60 Hz, 200W |
| EU detachable line cord: | 200 - 240 VAC, 50-60 Hz, 200W |
| AC Connector: | 3-pin IEC 250 VAC |
| Power Supply Type: | Switchmode |
| Safety Features | |
| Input Protection: | Peak and RMS limiting, power supply and amplifier thermal protection |
| Display LEDs: | Defeatable front power ON (Running Man logo), Front load power limiter, Speaker Mode, Feedback Destroyer, input signal |
| Construction Features | |
| Cabinet: | 15 mm Poplar |
| Finish: | High durability black paint |
| Handles: | One on each side |
| Grille: | Powder-coated 18 gauge steel |
| Fly Points: | 3x M10 x 1.5 x 37 mm |
| Monitor Angle: | 60° |
| Physical Properties | |
| Shipping: | Packed and shipped with TLC from idjnow HQ, Ronkonkoma, NY. |
| Height: | 26.7" / 677 mm |
| Width: | 17.5" / 445 mm |
| Depth: | 17.4" / 441 mm |
| Weight: | 46 lb / 21 kg |
| Mounting Methods: | Floor mount, pole mount or fly via integrated M10 mounting points (using M10 x 1.5 x 37 mm forged shoulder eyebolts.) |
The Mackie SRM650 Box Includes:
(1) Mackie SRM650 1600 Watt 15” Powered Loudspeaker
(1) Power Cord
(1) Owner's Manual
