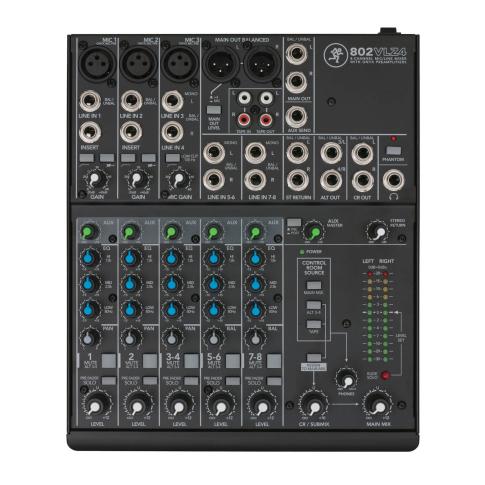

Mackie 802VLZ4 8-Channel Ultra-Compact Mixer
Now featuring Mackie's flagship Onyx mic preamps, the comprehensive Mackie VLZ4 line delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.
Mackie 802VLZ4 Features:
• 8-channel mixer featuring Mackie signature high-headroom/low-noise design
• 3 boutique-quality Onyx mic preamps
• Ultra-wide 60dB gain range
• 128.5 dB dynamic range
• Extended frequency response
• Distortion under 0.0007% (20Hz – 50kHz)
• Improved RF rejection perfect for broadcast applications
• Phantom power for condenser mics
• 8 high-headroom line inputs
• Selectable instrument inputs on first two channels – no DI box needed
• 3-band EQ (80Hz, 2.5kHz, 12kHz)
• 18 dB/oct 100Hz low-cut filter on mic input channels
• Aux send, level, pan and PFL solo on each channel
• Stereo return for connecting FX processor or other stereo source
• ALT 3/4 stereo bus for added routing flexibility
• Control room / phones source matrix
• High-resolution 12-segment stereo meters
• Sealed rotary controls resist dust and grime
• “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
• High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
Mackie 802VLZ4 Specifications
| Noise | Main Mix Noise: Main Mix Knob Down, Channel Level Knobs Down: XLR: -95 dBu TRS: -101 dBu Main Mix Knob at Unity, Channel Level Knobs Down: XLR: -90 dBu TRS: -96 dBu Main Mix Knob at Unity, Channel Level Knobs at Unity: XLR: -84 dBu TRS: -90 dBu (20 Hz to 20 kHz bandwidth, channels 1 to 3 gain at unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3 to 8 centered) |
| Total Harmonic Distortion (THD) | Microphone Pre at Insert: <0.001% (1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth) |
| Crosstalk / Attenuation | Main Mix Knob Down: -75 dBu Channel Alt / Mute Switch Engaged: -100 dBu Channel Level Knob Down: -100 dBu (1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity) |
| Frequency Response | Microphone Input to Main Output (Gain at Unity): +0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz |
| Equivalent Input Noise | 150 Ω Termination: -128.5 dBu, 20 Hz to 20 kHz Microphone input to insert send out, maximum gain |
| Common Mode Rejection Ratio | Better than -70 dB at 1 kHz |
| Maximum Level | Microphone In: +21 dBu Tape In: +22 dBu All Other Inputs: +22 dBu Main Mix XLR Out: +28 dBu All Other Outputs: +22 dBu |
| Impedance | Microphone In: 2.55 kΩ Channel Insert Return: 5 kΩ All Other Inputs: 17 kΩ or greater Tape Out: 1 kΩ Phones Out: 60 Ω All Other Outputs: 120 Ω |
| Equalizer | High Shelving: ±15 dB at 12 kHz Mid Peaking ±15 dB at 2.5 kHz Low Shelving: ±15 dB at 80 Hz |
| Power Consumption | 13 W, 100 to 120 VAC, 50 to 60 Hz |
| Power Supply | External (AC Connector): 2-Pin IEC 250 VAC |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Dimensions (H x W x D) | 10.7 x 8.9 x 1.8" (273.0 x 227.0 x 47.0 mm) |
| Weight | 5.5 lb (2.5 kg) with power supply |
The Mackie 802VLZ4 Box Includes:
(1) Mackie 802VLZ4 8-Channel Ultra-Compact Mixer
(1) Power Cord
(1) Owner's Manual
*Please note: Customer return/Store display items are not brand new and may have minor imperfections. Due to the nature of a "Customer return item" we cannot guarantee that all box components listed, will be included. Because of this, the item is discounted accordingly and sold at close to cost or below. IDJNOW does guarantee that you will receive all pertinent components for the item to function in Its most basic form (usually just a power cord) and guarantees the item to be free from defect for 30 days from the day you receive it.
