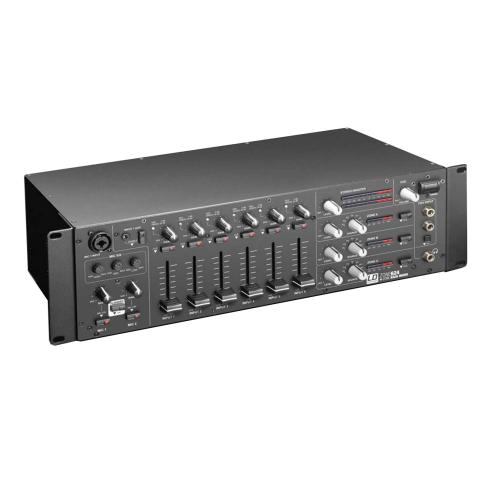

LD Systems Zone 624 19" 3U Rack Mount 4-Zone Mixer - Store Demo
SKU #: ZONE624-IO
Reg.
$499.99
Now
$415.86
Reg.
Item Backordered
Expected October 31, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The two balanced microphone inputs have a shared 3-band EQ, 12V phantom power and Talkover functions; the Talkover attenuation can be individually set for all zone outputs on the back of the unit. The 6 stereo input channels of the ZONE 624 are equipped with gain control, signal and peak LEDs, 45 mm faders, Cue buttons and RCA connections; channel 6, in addition with balanced TRS inputs for FOH signals. The device also has a switchable Aux input via 3.5mm mini jack and a USB port, that is used as a stereo input and output (recording out) and turns the ZONE 624 into an external audio interface.
The master section outputs are electronically balanced and use XLR connectors and terminal block connectors. The stereo zone also has unbalanced RCA connectors. The maximum output level for all of the zones can be individually set. The three mono outputs of the ZONE 624 each have a 2-band EQ, a selectable 100 Hz high pass filter, and a MIC mute switch with a level indicator; the inputs 1-6 or the stereo master signal can be selected as a source. The stereo output is equipped with a 3-band EQ, a control for the Talkover sensitivity and two LED chain level meters. Furthermore, the ZONE 624 has a recording output and a controllable PFL headphone jack for previewing.
LD Systems Zone 624 Specifications
Product number:
LDZONE624
Product type:
Zone Mixer
Number of Zones:
4 (Master, Zone A-C)
Type:
stereo
Installation Height:
3U
Total Input Channels:
8 (2x Mic, 1x AUX/Line, 2x Phono/Line, 2x Line, 1x FOH/Line
Frequency response:
20 - 40000Hz
Microphone channels:
2 (with phantom power 12 V)
Microphone Channel Connections:
6.3 mm stereo jack (2 x balanced), XLR
Microphone channel controls:
2x On/Off, 1 x Talkover, 1 x EQ Low, 1x EQ Mid, 1 x EQ Hi, 2 x gain
Microphone Channels Display Elements:
On-LED
Microphone Channels Input Impedance:
4kOhm
Microphone Channels Input Sensitivity:
4.5mV
Microphone Channels THD:
0.08 %
Line Channels:
6 (Input 1: Aux/Line, Input 2 + 5: Line/Phono, Input 3: USB/Line 4: Line, Input 6: Line/FOH
Line input connectors:
input 3: 2 x RCA + USB, Input 1: 2 x RCA + 3.5 mm stereo jack, input 6: 4 x RCA + 2 x 6.3 mm jack, input 2, 4 5: 2 x RCA
Line Channel Controls:
FOH On, AUX enable, Cue, level, Gain, 2x Phono/Line
Line Channel Display Elements:
Signal/0 dB-LED, Cue-LED
Line Channel Input Impedance:
6kOhm, (Phono) 50kOhm
Line Channels Input Sensitivity:
2.1V, (Phono) 25mV
Line Channels THD:
0.02%, (Phono) 0.05%
input sensitivity AUX/Line:
3V
Line outputs:
5 (Master - Stereo, 3x Zone - Mono, Rec - Stereo)
Output Connectors Master:
2 x XLR (balanced), terminal block, RCA (x2)
Master Controls:
T/O Damping, EQ Low, EQ Mid, T/O Sensitivity, EQ Hi, Max. Level, level
Master Display Elements:
2 x 10 segment level meter
Master Output Levels:
(balanced) 24dBu, (unbalanced) 17dBu
Zone Output Connections:
terminal block, XLR (balanced)
Zone Controls:
T/O Damp, Include Mic, level, 100 Hz High Pass, EQ Hi, Source, Max. Level, EQ Low, Cue
Zone Display Elements:
5-Segment Level Meter
Zone Output Levels:
24 (balanced/ unbalanced)dBu
Output Connections Rec:
2 x RCA
Headphones ouput:
1
Headphone Out Port:
6.3 mm TRS
Headphone Output Controls:
Cue Volume
Headphone Output Voltage:
(@ 32 Ohm) 2.5V
Additional Inputs:
2 (Emergency Input, Output Mute)
Connections Additional Inputs:
terminal block
Additional Input Controls:
Level Emergency Input
Input Sensitivity Emergency Input:
5V
Additional Controls:
power switch
Additional Display Elements:
Power-LED
Operating voltage:
220 - 250 V AC, 50 Hz
Mains connector:
IEC power connector
Power consumption:
25W
Fuse:
T 500 mAL / 250 V
Width:
485mm / 19"
Height:
132mm / 5.2"
Depth:
210mm / 8.3"
Weight:
4.4kg / 9.7"
Accessories (included):
terminal blocks, Power cord
The Zone 624 Box Includes:
(1) Power cable
(1) User manual
*Please note: Customer return/Store display items are not brand new and may have minor imperfections. Due to the nature of a "Customer return item" we cannot guarantee that all box components listed, will be included. Because of this, the item is discounted accordingly and sold at close to cost or below. IDJNOW does guarantee that you will receive all pertinent components for the item to function in Its most basic form (usually just a power cord) and guarantees the item to be free from defect for 30 days from the day you receive it.
