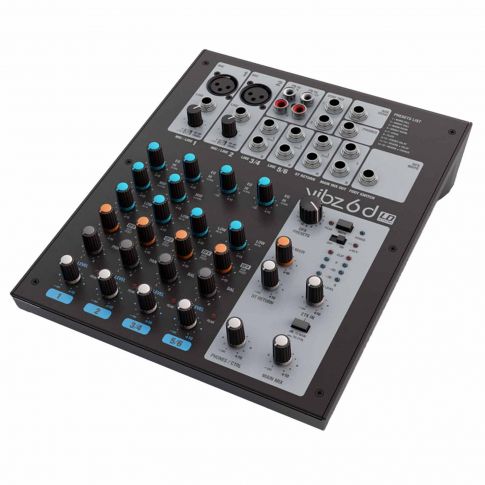

LD Systems VIBZ 6 D 6 Channel Mixing Console with DFX
The VIBZ 6 is a compact 6-channel mixer which is perfectly suited to entertainers, small bands, home recording and installations. It features two balanced microphone inputs with high quality preamps, phantom power and 3-band EQ with +/-15 dB adjustment scope, two stereo line inputs with 2-band EQ, which are mono-compatible, and an effects loop.
The master section of the VIBZ 6 is equipped with adjustable monitor outputs, a headphone jack and 16 digital effects presets, which are foot-switchable. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound. The external power supply can be screwed on tightly.
A foot switch for the effects section and an adapter for mounting the VIBZ 6 on microphone stands are available as accessories.
LD Systems VIBZ 6 D Specifications
| Product number: | LDVIBZ6D |
|---|---|
| Product type: | Mixer |
| Type: | Live |
| Channels: | 6 |
| Mono Channels: | |
| Mono Mic and Line Input Channels: | 2 |
| Mono Mic input connectors: | 6.3 mm TRS, XLR |
| Mono Mic Input Type: | electronically balanced |
| Mono Mic Input Frequency Range: | 10Hz |
| Amplification Range mono Mic Input: | 0 - 50dB |
| Mono Mic Input Input THD-N: | 0.0058% |
| Mono Mic Input Impedance: | 4kOhm(s) |
| Mono Line Input Type: | electronically balanced |
| Mono Line Input Frequency Range: | 10Hz |
| Amplification Range mono Line Input: | 0 - 50dB |
| Mono Line Input Input THD-N: | 0.0045 % |
| Mono Line Input Impedance: | 21kOhm(s) |
| Mono Line Input S/N Ratio: | 116dB |
| Mono Channel Equalizer High: | +/- 15 dB @ 12000 Hz |
| Mono Channel Equalizer Low: | +/- 15 dB @ 80 Hz |
| Controls Mono Mic and Line Input Channels: | Gain, 3-band EQ (High, Mid, Low), pan, AUX (DFX) Post, Channel Volume |
| Phantom power: | 48 V DC switchable |
| Stereo Channels: | |
| Stereo Line Input Channels: | 2 |
| Stereo Line Input Connectors: | 6.3 mm TS |
| Stereo Line Input Type: | unbalanced |
| Stereo Line Input Frequency Range: | 10 - 54000Hz |
| Stereo Line Input Input THD-N: | 0.0045 % |
| Stereo Line Input Impedance: | 3,7kOhm(s) |
| Stereo Line Input S/N Ratio: | 116dB |
| Stereo channel equalizer treble: | +/- 15 dB @ 12000 Hz |
| Stereo channel equalizer bass: | +/- 15 dB @ 80 Hz |
| Controls Stereo Line Input Channels: | 2-band EQ (High,Low), Channel Volume, AUX (DFX) Post, Balance |
| Main Section: | |
| AUX / Effects Send Channels: | 1 |
| AUX / Effects Send Connectors: | 6.3 mm stereo jack unbalanced |
| Stereo AUX Return Channels: | 1 x stereo |
| Stereo AUX Return Connectors: | 2 x 6.3 mm TRS |
| Stereo Tape Out Channel: | 1 x stereo |
| Stereo Tape Out Connectors: | 2 x RCA (Cinch) |
| Stereo Tape In Channel: | 1 x stereo |
| Stereo Tape In Connenctors: | 2 x RCA (Cinch) |
| Unbalanced stereo Main Outputs: | 1 |
| Unbalanced stereo Main Output Connections: | 6.3 mm TRS |
| Unbalanced Stereo Main Out Impedance: | 120Ohm(s) |
| Max. Unbalanced Stereo Main Out Level: | +20dBu |
| Stereo Control Room Out: | 1 |
| Stereo Control Room Out Connectors: | 6.3 mm stereo jack unbalanced |
| Headphones ouput: | 1 |
| Headphones outputs: | 6.3 mm TRS |
| Digital Effects Processor: | Yes, 24-bit AD/DA Resolution |
| Number of Presets: | 16 |
| Footswitch Connector DFX Mute: | 6.3 mm TRS |
| Main section controls: | Master Volume, 2-track Assignment (Main, Contr. Room), Phones / Control Room Volume, Stereo Return Volume, Phantom Power, DFX Mute Schalter, DFX Presets, 2-track In Volume, DFX To Main Volume |
| Indicators: | Channel Peak, Power, DFX Peak / Mute, 4-segment Level Meter, Phantom Power |
| Operating voltage: | 18 V AC - 1 A, External PSU |
| Width: | 209mm / 8.2" |
| Height: | 68mm / 2.7" |
| Depth: | 260mm / 10.2 |
| Weight: | 1.45kg / 3.2 lb. |
The VIBZ 6 D Box Includes:
(1) LD Systems VIBZ 6 D 6 Channel Mixing Console with DFX
(1) Power cable
(1) User manual
