LD Systems U505.1 HHD US Wireless Microphone System includes Dynamic Handheld Microphone with Case Package
Most orders placed by 3pm ET ship in 2-3 business days
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The U500 Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience. Selectable transmit power up to 30 mW provides the U500 vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter's silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500's efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries. The U500 Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
LD Systems U505.1 HHD US Wireless System with Microphone Features:
- True diversity UHF wireless system.
- Shock-mounted dynamic and condenser microphone capsules.
- Automatic channel scan.
- Easy one-touch infrared frequency syncing.
- Pilot tone squelch circuit prevents noise.
- Switchable RF transmitter output (2, 10 or 30 mW.)
- Rugged enclosures.
- High-contrast OLED display.
LD Systems U505.1 HHD US Product Specifications:
General
Product type: Wireless Microphone Systems
Type: Set
Transmission frequency range: 512 - 542 MHz
Weight: 2,599 kg
LDU5051R2US Dual receiver
Product type: Wireless Microphone System Accessories
Type: Receivers, true diversity
Transmission frequency range: 512 - 542 MHz, 512 - 542 MHz
Modulation Type: FM
Channels: 2 x 96 (8 groups of 12 channels)
Groups: 8
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 30 - 16000 Hz
Noise reduction: Squelch
Signal-to-noise ratio: > 100 dB
Total Harmonic Distortion (THD): < 0.1 %
Controls: 2 x volume, Down, Power On/Off, Up, volume
Audio output, balanced: 2 x XLR
Indicators: 2 x OLED Display
Audio output, unbalanced: 2 x 6.3 mm TS
Audio mix output, balanced: 2 x XLR
Audio mix output, unbalanced: 2 x 6.3 mm TS
Max. output level: +10 dBu
Headphones ouput: 1
Headphones outputs: 6.3 mm TRS
Weight: 2,05 kg
Other features: channel search function, IR frequency synchronisation, Pilot tone
Operating voltage: 1,000 mA, 12 V DC
Width: 484 mm
Height: 44 mm
Depth: 200 mm
Accessories (included): 2 x antenna, Audio cable
LDU505MD Dynamic handheld microphone
Product type: Wireless Microphone System Accessories
Type: Microphones
Transmission frequency range: 512 - 542 MHz, 584 - 608 MHz
Channels: 96 (8 groups of 12 channels)
Groups: 8
Microphone type: Dynamic
Directivity: Cardioid
Frequency response: 60 - 16,000
Signal-to-noise ratio: >95 dB
Rated HF output power: Variable (2mW, 10mW, 30mW)
Controls: arrow keys (up/down value entry), menu, Power On/Off, select
Indicators: OLED Display
Power supply: 2 x AA battery
Operating time: >10 h (with alkaline batteries)
Length: 257 mm
Diameter: 51 mm
Weight: 0,25 kg
Other features: interchangeable capsule, IR frequency synchronisation, Pilot tone squelch, switchable gain, switchable gain, switchable RF power

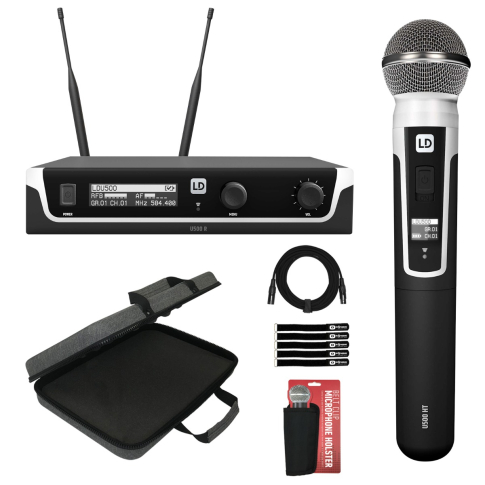

This Package Includes:
(1) LD Systems LDU5051R2US Dual receiver
(1) LD Systems LDU505MD Dynamic handheld microphone
(2) Antenna
(1) Audio cable
(1) Clutch CL-E171103GY Premium Multipurpose EVA Case with Cushion 17"W x 11"H x 3"L
(1) Wireless Microphone Holster with Belt Clip
(2) Clutch Sure-Fit 10' XLR Female to XLR Male Microphone / Speaker Cables
(5) 8" Reusable Hook and Loop Cable Ties
