LD Systems MAUI 11 G3 MIX Portable Cardioid Column PA System with Digital Mixer - Black with Bag & Cables Package

Most orders placed by 2pm ET ship same day (business days)
Only at IDJ NOW

Fast Shipping
Most products ship same-day

30-Day Price Protection
Find a lower price, you're covered.

8000+ Reviews
95%+5-star reviews>

30-Day Returns
Don't Like it? Return most items.
Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI Series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set. This applies in particular to the MAUI G3 MIX versions, which feature integrated digital 6-channel mixers. All components are integrated and perfectly matched: mixer, effects, dynamics processing, DSP controller, power amplifiers, and speakers. Wireless remote control via a free MAUI app (available on iOS or Android smartphones and tablets) is also included. The MAUI 11 G3 MIX delivers a huge, powerful, and precise sound with 730 W RMS power (1,460 Wpeak). It is suitable for various applications, for example as a main PA for singer-songwriters and small bands, a sound system for mobile DJs and formations, or a public address system at weddings, corporate events, and more. The built-in 6-channel mixer adjusts to the user's preferences through the Easy and Expert Modes. Users can choose between intuitive 3-band EQs or more advanced 5-way full parametric control. A comprehensive effects section provides the full range of reverb, delay and dynamics processing options. Users can wirelessly control all mixer and effects settings through the app. For stereo applications, two MAUI 11 G3 MIX units can be linked via SysLink. In this setting, twice the number of mixer channels are available, and with the REMOTE button, all channels can even be controlled from one system.
With its sleek and elegant design, the MAUI 11 G3 MIX looks extremely appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 6 x 3.5" midrange drivers and 2 x 1" tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the curved waveguide - in front of the tweeters - carries the high frequencies right to the back of the audience areas. The LD Systems engineers also took great care with the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field. The MAUI 11 G3 MIX columns are designed as cardioid units. This allows for controlled low mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound. Equipped with two 8" woofers and four bass reflex ports, the MAUI 11 G3 MIX subwoofer delivers a clear, tight and punchy low end down to 39 Hz. By using a second subwoofer, the bass response can also be increased by up to 6 dB, and it can also be driven in cardioid configuration at the push of a button (Cardioid preset). In addition, the subwoofer's ultra-durable polyurea coating easily withstands even the toughest demands of life on the road. The MAUI 11 G3 MIX is a real sound machine, yet will impress solo entertainers, singer/songwriters or small bands daily with its smart features. Transport is as easy as usual, while the hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily.
LD Systems MAUI 11 G3 MIX Column PA System Features:
- 1460 W Peak-power and 125 dB max. SPL.
- Powerful bass reproduction with 2 x 8" subwoofer.
- Balanced mids thanks to 6 x 3.5" full-range speakers.
- Precise and silky highs with 2 x 1" high-frequency drivers.
- Digital 6-channel mixer with on-board effects and footswitch input.
- Free App with Easy and Expert mode for remote adjustments via smartphone and tablet (optional.)
- SysLink for connecting two MAUI G3 MIX to double the mixer channels.
- Cardioid column for controlled low-mid and midrange sound dispersion.
- BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion.
- Optimised bass-reflex design improves bass response and reduces air flow noise.
- Can be combined with an additional MAUI 11 G3 subwoofer for increased low end or for cardioid subwoofer setups.
- Dynx DSP (Gen. 2) for distortion-free sound even at maximum volume.
- Wireless streaming via Bluetooth.
- Automatic setup detection for quick and easy operation.
- Fast and simple assembly without stands or cables.
- Rugged birch plywood subwoofer housing with durable polyurea-coating.
- Lightweight, powder-coated aluminum column housing.
LD Systems MAUI 11 G3 MIX Product Specifications:
General
Product type: PA Complete Systems
Type: Powered
Color: Black
Max. SPL (Peak): 125 dB
Frequency response (-10dB): 39 Hz - 20000 Hz
Dispersion (H x V): 120° x 30 °
Total Height: 2052 mm
Weight: 31.5 kg
Features: 6 channel mixer, App Control (Easy + Expert Mode), Bluetooth Audio Streaming, Cardioid column, Footswitch Input, On-board effects + dynamics, SysLink (cascading of 2 systems)
Subwoofer
Woofer dimensions: 2 x 8"
Woofer dimensions (mm): 2 x 203 mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2"
Woofer voice coil (mm): 50.8 mm
Cabinet construction: Bass Reflex
Housing material: 15 mm birch plywood
Cabinet surface: Polyurea
Dimensions Subwoofer (W x H x D): 305 x 607 x 403 mm
Subwoofer weight: 21.3 kg
Mid/Hi System
Midrange dimensions: 6 x 3.5"
Midrange dimensions (mm): 6 x 89 mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 0.75"
Midrange voice coil: 19 mm
Tweeter dimensions: 2 x 1"
Tweeter dimensions (mm): 2 x 25.4 mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1"
Tweeter voice coil (mm): 25.4 mm
Wave Guide: CD Waveguide
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Passive Cardioid
Mid/Hi system cabinet material: Aluminium
Mid/Hi system cabinet surface: Powder-coated
Mid/Hi system width: 103 mm
Mid/Hi system height: 1460 mm
Mid/Hi system depth: 135 mm
Mid/Hi system weight: 10.2 kg
Amplifier module (integrated in subwoofer)
Amplifier: Class D
System output (RMS): 730 W
System output (Peak): 1460 W
Protection circuits: DC protection, Multiband limiter, Short circuit, Thermal protection
Cooling: Convection
Controls: Bluetooth HOLD TO LINK button, Channel Level, Input type, Main level, Page button, Power On/Off, Remote, Rotary/push encoder
Indicators: Bluetooth, Channel Level, Display, Input type, Limit, mute, Power, Protect (protection circuit engaged), Remote, Signal
Mains connector: PowerCON
Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Fuse: T 3.15AL / 250 V
Power consumption: 300 W
Ambient temperature (operating): 0 - 40 °C
Relative Humidity: < 80% (non-condensing)
Line Inputs: 4, Footswitch
Line Input Connectors: Combo XLR / TRS
Line Outputs: 1 System OUT, 2 Monitor OUT
Line Output Connectors: XLR male
Number of speaker outputs: 1
Loudspeaker Output Connectors: Custom-made multipin
Other Connections: 1 RJ45 SysLink Port
Bluetooth Standard: A2DP
Bluetooth version: 4.2
Bluetooth Audio Decoder: SBC
DSP characteristics
Bit depth AD/DA converter: 24 bit
Sampling frequency: 48 kHz

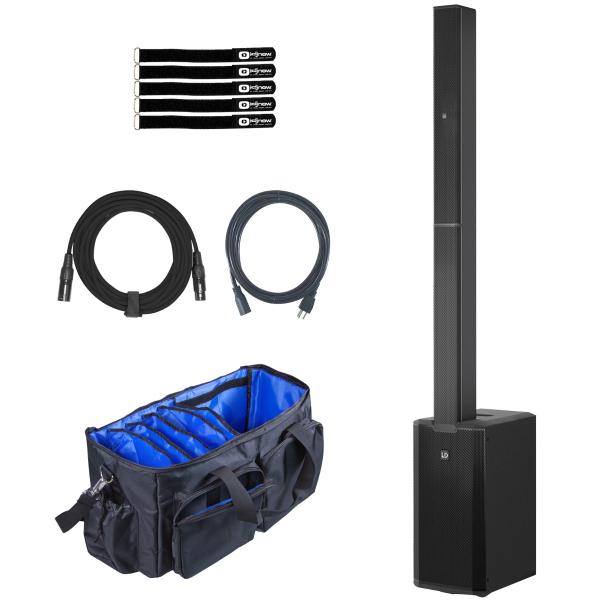

This Package Includes:
(1) LD Systems MAUI 11 G3 MIX Compact Cardioid Column PA System Subwoofer, Black(1) LD Systems MAUI 11 G3 MIX Compact Cardioid Column PA System Lower Column (LC), Black
(1) LD Systems MAUI 11 G3 MIX Compact Cardioid Column PA System Column (UC), Black
(1) Power Cable
(1) Clutch CL-CADDY200 Utility Storage/Transport Bag
(1) Clutch 20' Sure-Fit XLR Female to XLR Male Microphone / Speaker Cable
(1) Clutch CL-EC16310 Black 10FT 16 Gauge AC Extension Cord
(5) 8" Reusable Hook and Loop Cable Ties
