LD Systems LDS-EB82AG3 STINGER 8 A G3 Powered 8" PA Speaker, US Version

SKU
LDS-EB82AG3

$599.99
Limited Supply - Contact Us

Questions? Call 1-800-355-7746 or Chat below

Free Shipping
Best Price + Plus
Check In-Store Availability

Free Shipping on most orders with minimum purchase of $50 or more for a limited time.

Ground shipments only in the lower 48 contiguous United States.

Excludes oversized or overweight items such as oversized speakers, oversized cases, trussing and staging. Other exclusions include some fluids, some parts and special orders.

Any questions, please call 1-800-355-7746 during normal business hours.

Offer subject to change or termination without notice. Not responsible for typographical errors.

The lowest price is not always the best price. When you shop with us, you can always expect to get our BestPrice+Plus guaranteed.

Learn More

1 800 355 7746



I DJ NOW - Babylon, NY store (Pick Up In Store Only)
Mon - Sat 10am - 8pm
Sun 11am - 5:00pm
631 321 1700



I DJ NOW - Queens, NY Store (Pick Up In Store Only)
Mon - Fri 10am - 9pm
Sat 10am - 7pm
Sun 12 noon - 6pm
718 762 0100

Engineered for rock-solid reliability day in, day out this active 2-way system is a truly professional performer. With its multi-purpose bass reflex construction and carefully contoured, user-friendly presets it is equally suitable for fullrange, satellite or floor monitor applications. The STINGER 8 A G3 is powered by high efficiency Class D amplification with a hefty 300 watts RMS output. It drives a custom designed 8" woofer and BMS compression driver delivering a punchy low end and smooth, crisp highs. The HF waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a controlled uniform coverage pattern. The STINGER 8 A G3 incorporates LD Systems’ proprietary DynX DSP technology to ensure top-level performance with maximum clarity and punch at all times. Processing includes crossover and multiband limiter functions for accurate time alignment and pristine, distortion-free audio. Designed to be a real workhorse throughout, the enclosure is made of rigid birch ply and coated with ultra tough polyurea for extraordinary strength and durability. Sporting a steel front grille, Dual-Tilt pole receptacle, multiple suspension points and ergonomic handles the STINGER 8 A G3 is an attractively priced choice for truly professional sound reinforcement. A large selection of accessories facilitate live and installed applications.

LD Systems LDS-EB82AG3 STINGER 8 A G3 8" Speaker Features:

  • 2-way active 8" bass reflex PA speaker.
  • High-efficiency 300 watts RMS digital power stage and 129 dB max. SPL.

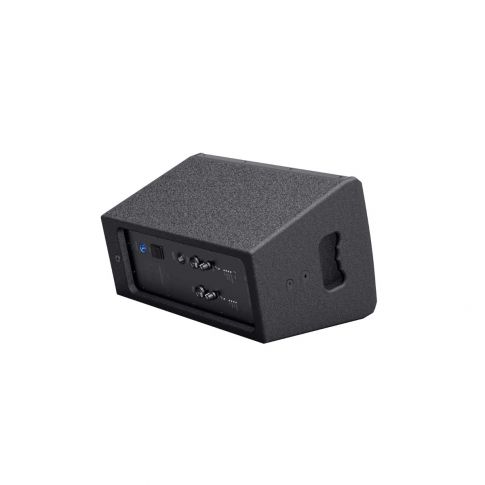

  • Multi-purpose design for fullrange, satellite and monitor applications.
  • Application presets for quick frequency response contouring.
  • BEM optimized HF waveguide for uniform coverage.

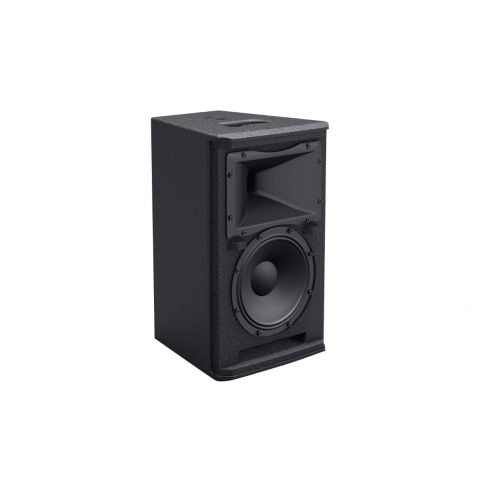

  • 8" custom woofer and BMS compression driver.
  • DynX DSP technology for distortion-free performance.

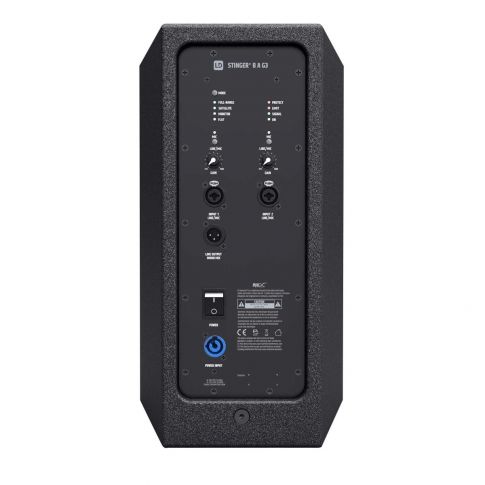

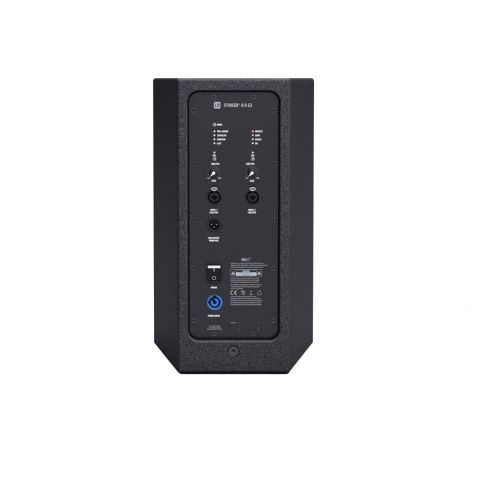

  • 2 line/mic input channels with individual gain controls plus mono mix out.

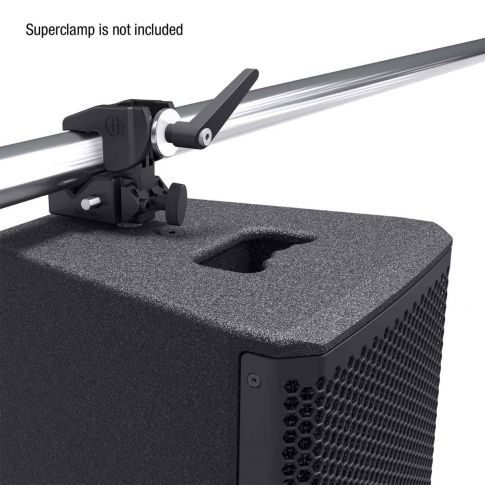

  • 12 mm birch ply cabinet with ultra rugged polyurea finish and M10 suspension points.
  • Shock-resistant front grill provides maximum speaker protection.

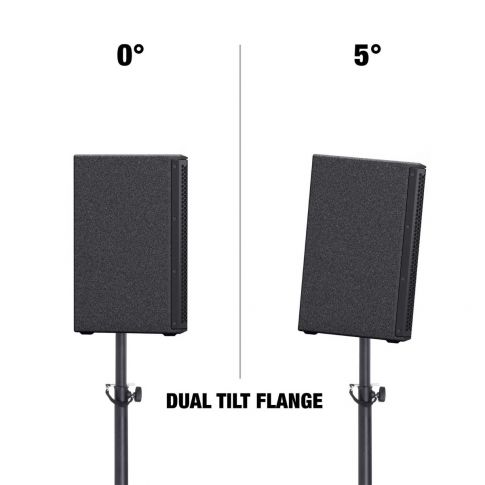

  • 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles.
  • Large selection of smart installation and transport accessories.

LD Systems LDS-EB82AG3 Product Specifications:
Product typePA loudspeaker
TypePowered
Low/mid driver dimensions8"
Woofer size203.2 mm
Woofer magnetFerrite
Woofer brandCustom-made
Woofer voice coil2"
Woofer voice coil (mm)50.8 mm
HornBEM optimized CD Horn
HF driver dimensions1"
HF driver size25.4 mm
HF driver magnetFerrite
HF driver brandBMS
HF driver voice coil1"
HF driver voice coil25.4 mm
AmplifierClass D
Dispersion (H x V)90 x 50 °
RMS300 W
Peak power600 W
Frequency response70 - 20000 Hz
Max. SPL (peak)125 dB
Protection circuitsMultiband limiter, over voltage, over-current, thermal overload
Input sensitivity-9 dBu
Controls2 x gain, 2 x Mic/Line, Mode
IndicatorsLimit, Mic, Mode, On, Protect (protection circuit engaged), Signal
Line inputs2
Line input connectors6.3 mm jack, XLR
Line outputs1
Line output connectorsXLR
Operating voltage100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching), Switching power supply
Operating Temperature0 - 40 °C
Relative Humidity< 80% (non-condensing)
Cabinet material12 mm Plywood
Cabinet surfacePolyurea
Cabinet constructionBass Reflex
Width270 mm
Height457 mm
Depth290 mm
Weight10.5 kg

Each LDS-EB82AG3 Retail Box Includes:
(1) LD Systems LDS-EB82AG3 STINGER 8 A G3 Powered 8" PA Speaker, US Version
