Enjoy the freedom of blasting the sound as loud and hard as you want for your audience. The horn-loaded woofer covers the complete bandwidth of sound with rich, deep bass. The choice is all yours: use the coaxial speakers as either column loudspeakers or as monitor boxes - in 12" or 15" format. After all, both the powered and passive loudspeakers in the LD Systems ICOA Series are true all-rounders: their coaxial configuration allows the BEM-optimised CD horn - and the logo - to be easily rotated 90°. The result: you can perfectly position your powered loudspeaker at the right transmission angle. The sound is brilliant and super powerful in all positions, and the design is truly impressive, no matter if installed as a vertical column loudspeaker or horizontal monitor box. Every now and then all you need is a new perspective for greater freedom. Sturdy aluminium handles, the adjustable stand adapter and a wide variety of optional accessories for installation and transport make the powered speakers in this series real experts.
LD Systems ICOA 12 A W 12" PA Speaker Features:
- A genuine all-rounder for full-range, satellite and monitor applications.
- 126 dB max. SPL and 1200 W peak power.

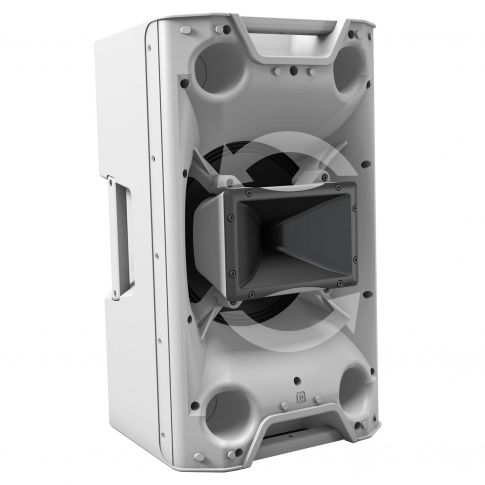

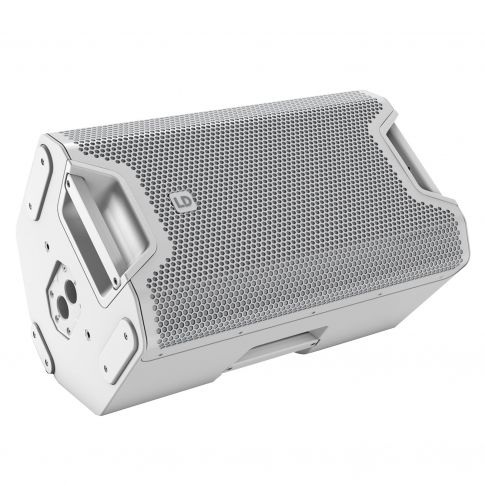

- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimized CD horn (Patent pending.)
- Horn-loaded woofer.
- DynX DSP with 4 presets, 3-band EQ and delay function.
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth streaming with the BT model.

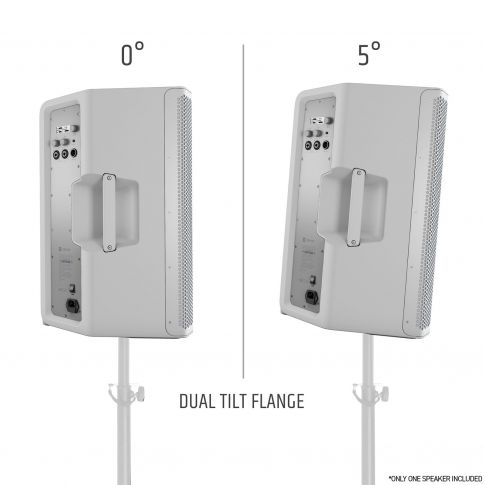

- 36 mm dual tilt stand attachment with 0° and 5° tilt angle, 55° monitor angle with sturdy stand.
- 6 x M10 flying points.

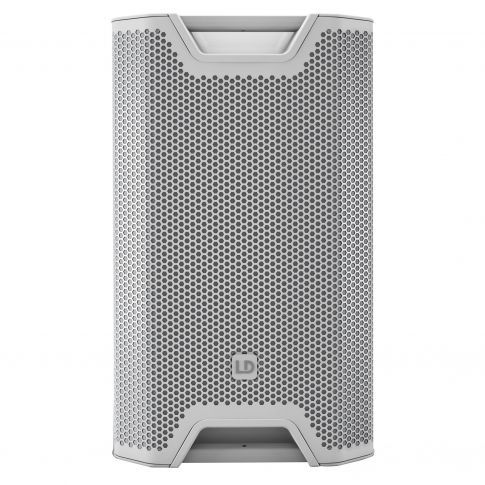

- Shock-resistant front grille for optimal protection of the speaker.
- 4 aluminum grips with ergonomic, rubber surface.
- Extensive, optionally available accessories for installation and transport.
LD Systems ICOA 12 A W Product Specifications:
Product type | PA loudspeaker |
Type | Powered |
Color | White (RAL 9003) |
Low/mid driver dimensions | 12 " |
Woofer size | 304.8 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
Horn | BEM optimized CD Horn |
HF driver dimensions | 1 " |
HF driver size | 25.4 mm |
HF driver magnet | Ferrite |
HF driver brand | Custom-made |
HF driver voice coil | 1.4 " |
HF driver voice coil | 35 mm |
Amplifier | Class D |
Dispersion (H x V) | 90° x 50° |
RMS | 300 W |
Peak power | 1200 W |
Frequency response | 50 - 20000 Hz |
Crossover frequency kHz | 2 kHz |
Max. SPL (peak) | 126 dB |
Protection circuits | Multiband limiter, over voltage, over-current, thermal overload |

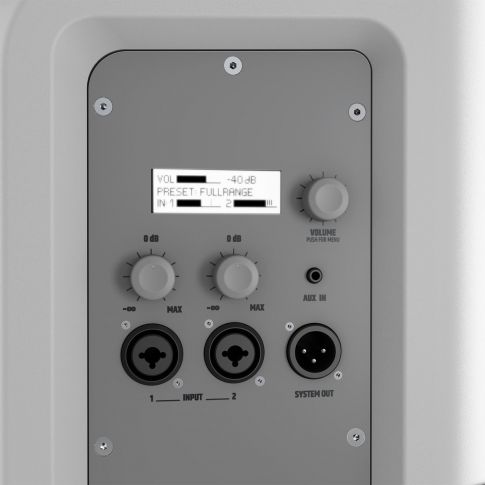

Controls | 2 x gain, On / off switch, Rotary/push encoder |
Indicators | LC display |
Mic/ line inputs | 6.3 mm jack Combination sockets (symmetrical), XLR |
Line inputs | 1 |
Line input connectors | 3.5 mm TRS |
Line outputs | 1 |
Line output connectors | 3.5 mm TRS |
Operating voltage | SMPS |
Power consumption | 150 W |
Ambient temperature ( in operation ) | 0 - 40 °C |
Operating voltage | 100 V AC - 240 V AC, 50 - 60 Hz |
Relative Humidity | < 80 %, not condensing |
Fuse | T4AL 250 V |
Cabinet material | Polypropylene |
Cabinet construction | Bass Reflex |
Mounting | 36mm flange (0°, 5°), 6 x M10 flying points |
Monitor angle | 55 ° |
Width | 375 mm |
Height | 635 mm |
Depth | 396 mm |
Weight | 19.95 kg |
Accessories (included) | Power cord |
Each ICOA 12 A W Retail Box Includes:
(1) LD Systems ICOA 12 A W 12" Powered Coaxial PA Loudspeaker in White(1) Power cord
