JTS 8001D Aerobic Headworn Wireless Gym Pack Microphone System [UF-20R/JSS-20]

SKU: US-8001D-UT16HW
$359.00
Backordered

Expected June 30, 2026

Same Day
Shipping
Best Deal
Guarantee
Authorized
Dealer
Real Gear
Experts
Key Highlights
  • Preset 16 selectable UHF channels.
  • Single transmitter operation.
  • Diversity technology prevents dropouts in the RF link.
  • PLL synthesized technology.
Get Expert Help Before You Buy

Get fast answers on setup, compatibility, and system matching.

✔ No pressure. Just real help.

|

JTS UF-20R/JSS-20 Aerobic Headworn Wireless Microphone System

  • Preset 16 selectable UHF channels.
  • Single transmitter operation.
  • Diversity technology prevents dropouts in the RF link.
  • PLL synthesized technology.
  • Noise mute and pilot tone squelch.
  • Equipped with both XLR balanced and 6.3mm unbalanced outputs.
  • Tuned antennas maximize the effective range of the wireless link.
  • Compact half rack space design.

Good for:

  • Aerobics/Fitness.
  • School.
  • Cooperate presentation.
  • Stage performance.
  • Wireless for video (together with KA-10R).

JTS US-8001D Single Channel Receiver Specifications

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Display LED
Display Contents Antenna A/B, RF/AF Status
Controls Power On/Off, Channel Selecting, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage US-8001D/US-8001DB : 12-18 VDC, 150mA
US-8002D/US-8002DB : 12-18 VDC, 200mA
Output Connector 1 Balanced XLR socket (2 for US-8002DB/US-8002D)
1 Unbalanced Ø6.3mm phone jack
Dimension(m/m) US-8001DB/US-8002DB : 210mm (W)* 40mm (H)* 181mm (D)
US-8001D/US-8002D : 210mm (W)* 40mm (H)* 171mm (D)



JTS UT-16HW Sub miniature headset transmitter Specifications
UT-16HW
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs Maximum 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Power On/Off, Low battery
Controls Power On/Off, AF Level, Channel Selecting, Mute
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery LR03, AAA 1.5V

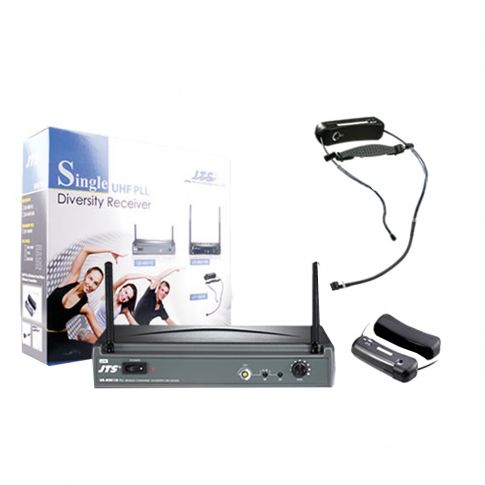

The UF-20 System Box Includes:
(1) JTS US-8001D Single Channel Receiver
(1) JTS UT-16HW Sub miniature headset transmitter
