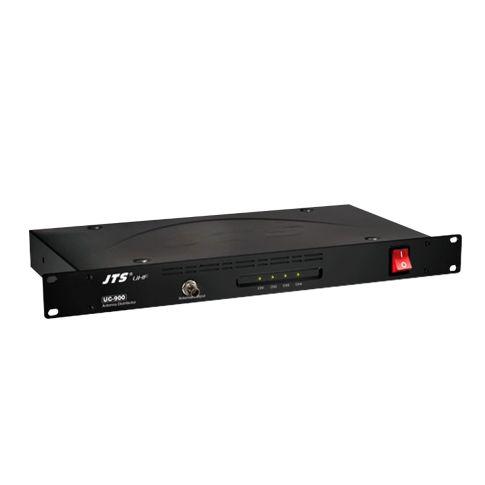

JTS UC-900 Antenna Combiner for In-Ears
SKU #: UC-900
Reg.
$566.00
Now
$433.40
Reg.
As low as $43/mo or 0% APR with
In Stock - Almost Gone
Most orders placed by 2pm ET ship same day (business days)
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
This 4 inputs and 1 output antenna combiner is compatible with transmitters like SIEM-2T, TG-10STX, TG-10GSTX and other transmitters with BNC antenna connecters. It is designed to improve RF performance by reducing intermodulation distortion. This product will also help to save investment in antenna systems. Provides 4 DC outputs each of 12 V x 800 mA for 4 sets of transmitters.
JTS UC-900 Product Specifications:
| UC-900 | |
|---|---|
| Frequency Range | 470~970 Mhz |
| Full System Gain | 0dB(±2dB) |
| VSWR Input / Output | 1.5:1 |
| RF Input Power | +20dBm (100mW) |
| Input Signal Indicator Threshold | +5dBm |
| Power Consumption | 6W |
| Input/Output Connectors | BNC female (4 input at back,1 output at front) DC female (4 input, Maximum Power OutputLimit at 12V/1A) |
| Input Voltage | 100~240VAC MAX2A 50/60Hz |
| Dimensions | 480 (W) x 45 (H) x 260 (D) |
| Wieght | 2.3kg |
Each UC-900 Retail Box Includes:
(1) JTS UC-900 Antenna Combiner for In-Ears
