Be the first to review this product
SKU
RE3-ND76-5L
$659.00
Item Backordered
Expected November 30, 2024

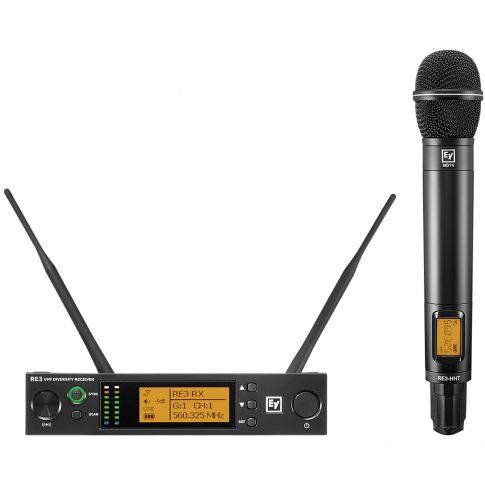

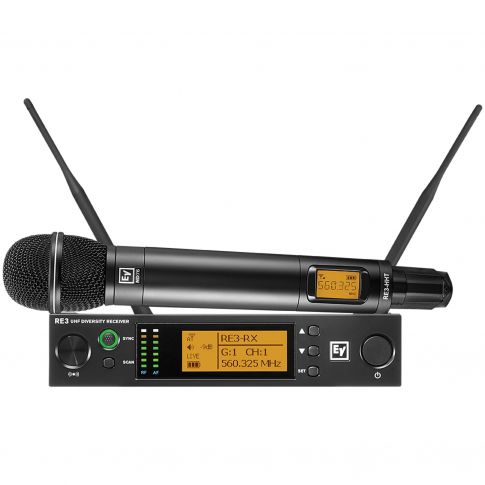

Handheld UHF wireless set featuring ND76 dynamic cardioid microphone head for vocal performance and presentations. The ND 76's crisp, clear, and balanced vocal presence is ideal for all-around voice applications. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
The Electro-Voice ND76-RC3 is a robust, highperformance, dynamic cardioid thread-on vocal microphone head for wireless handheld transmitters. This microphone head electrically and mechanically adapts to Electro-Voice (and many other brands) wireless handheld transmitters that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention. The floating captured ID collar will spin freely until screwing the head on tightly. It will remain locked in place when fully tightened. This allows the desired orientation of the branding to the transmitter. The RE3-RX is a professional rack-mountable, 1/2 space diversity receiver. Designed to function as the control center for an RE3 wireless set, it features frequency scanning and synchronizing, as well as full transmitter control settings which synchronize to a mated transmitter. UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR and unbalanced 1/4" TRS outputs. The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
The Electro-Voice ND76-RC3 is a robust, highperformance, dynamic cardioid thread-on vocal microphone head for wireless handheld transmitters. This microphone head electrically and mechanically adapts to Electro-Voice (and many other brands) wireless handheld transmitters that use the common 3-contact rings, 1.25" diameter by 28-thread pitch coupling convention. The floating captured ID collar will spin freely until screwing the head on tightly. It will remain locked in place when fully tightened. This allows the desired orientation of the branding to the transmitter. The RE3-RX is a professional rack-mountable, 1/2 space diversity receiver. Designed to function as the control center for an RE3 wireless set, it features frequency scanning and synchronizing, as well as full transmitter control settings which synchronize to a mated transmitter. UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR and unbalanced 1/4" TRS outputs. The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
Electro-Voice UHF Wireless Set with ND76 Microphone Features:
- Thread-on microphone head for Electro-Voice handheld transmitters (compatible with many other brand's handheld transmitters.)
- Excellent all-around vocal performance: crisp, clear and balanced.
- Large diaphragm dynamic capsule creates a rich and detailed frequency response.
- Shock-mounted capsule minimizes handling noise.
- Memraflex grille resists denting.
- RE3-HHT Handheld Transmitter features a Robust metal body and Sync function for easy frequency setup.
- Selectable low and high output power (band specific.)
- Up to 36 MHz tuning bandwidth (band specific.)
- Common threaded coupling allows microphone head interchangeable.
- Diversity reception minimizes dropouts.
- Frequency scanning for selecting open frequencies.
- Sync function links transmitter to receiver for easy setup.
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation.
- Easy-to-read LCD display.
Electro-Voice RE3-ND76-5L Specifications:
5L Band DetailsBandwidth limits (MHz): 488 – 524
Tuning bandwidth: 36 MHz
Selectable frequencies: 1440
Transmit output power (mW): 10 and 50
Coverage: Global

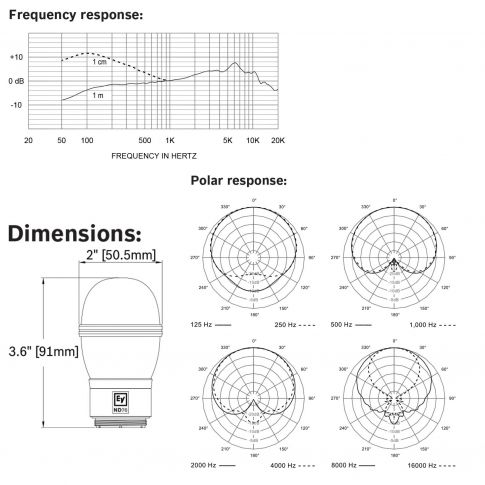

ND76-RC3 Wireless Head with ND76 Capsule
Element type: Dynamic neodymium magnet structure
Frequency response, close: 30 Hz-17 kHz
Frequency response, far: 70 Hz-17 kHz
Polar pattern: Cardioid
Sensitivity, open circuitvoltage @ 1 kHz: 5.6 mV/Pascal (-45 dBV/Pa)
Maximum SPL: 135.5 dB SPL (1% THD)
Impedance: 1000 ohms
Power requirements: 4-8 VDC
Polarity: Positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
Electrical contact: 3-Ring/3-Pin
Threaded coupling: 1.25" diameter / 28 UN-2A thread pitch
Finish: Black polyurethane paint
Materials: Aluminum, steel, steel wire grillescreen
Dimensions, length diameter: 3.6 in. (91 mm)2.0 in. (50.5 mm)
Net weight: 6.5 oz (184 g)
Shipping weight: 8.4 oz (238 g)
RE3-HHT Handheld Transmitter
Frequency Oscillation Mode: Phase-locked loop (PLL)
Sync Frequency: Ultrasonic
Display By: LCD + LED
Function Controls: Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
RF Stability: <±10kHz@Fc
Modulation Frequency Shift: Wideband FM ±48kHz deviation
Harmonic Radiation: <-50dBc
Battery: 2 x AA alkaline battery or NiMH rechargeable battery
Charging Contacts: Yes
Microphone Coupling: 1.25" diameter, 28 UN-2A thread pitch
Microphone Electrical Contact: 3-ring/3-pin
Finish: Black polyurethane paint
Dimensions (without head): Height: 7.52 inch (191mm)
Width at threaded end: 1.46 inch (37mm)
Width at control cover: 0.856 inch (22mm)
Net Weight: (without head): 12.2oz [346 grams]
Gross Weight (without head): 16.9oz [480 grams]
RE3-RX Diversity Receiver
Frequency Oscillation Mode: Phase-locked loop (PLL)
Carrier Frequency Range: 470 - 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency: Ultrasonic 40 kHz
Diversity: Antenna diversity
Bandwidth: 36MHz
Signal/Noise Ratio: >100dB(A)
Total Harmonic Distortion (Thd): <0.6%@1kHz
Receiving Sensitivity: -81dBm for -12dB SINAD
Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Antenna Type: Detachable 1/2 wave with BNC connector
Antenna Booster Power: DC12 - 15V/100mA
Function Display By: LCD
Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Audio Frequency Output Level: Ref:±22.5kHz Dev@1kHz Tone
1/4" (6.3mm) Phone Jack:-10dBV
XLR Jack:-4dBV(Line), -24dBV(MIC)
Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced)
Squelch and noise muting: Noise muting and tone code locking
Output Ports: 1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack
Power Supply: DC12~15V/500mA
Finish: Black polyurethane paint

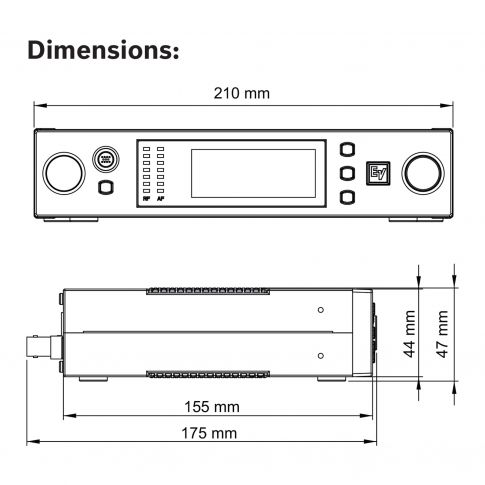

Dimensions: Width: 8.27 inch (210mm)
Height: (with feet attached) 1.85 inch (47mm)
Height: (without feet attached) 1.73 inch (44mm)
Depth: (including antenna jack) 6.89 inch (175mm)
Depth: (not including antenna jack) 6.1 inch (155mm)
Net Weight: 2.71 lbs [1.23 kg]
Gross Weight: 3.28 lbs [1.49 kg]
Each RE3-ND76-5L Retail Box Includes:
(1) ND76-RC3 Wireless Head with ND76 Capsule(1) RE3-HHT Handheld Transmitter
(1) RE3-RX Diversity Receiver
(1) Microphone stand adapter
(2) Receiver antennas
(1) Universal power supply
(2) AA batteries
(1) Set of Receiver rack mounting hardware
(1) Owner's manual
(1) Documentation packet
(1) Declaration of conformity
