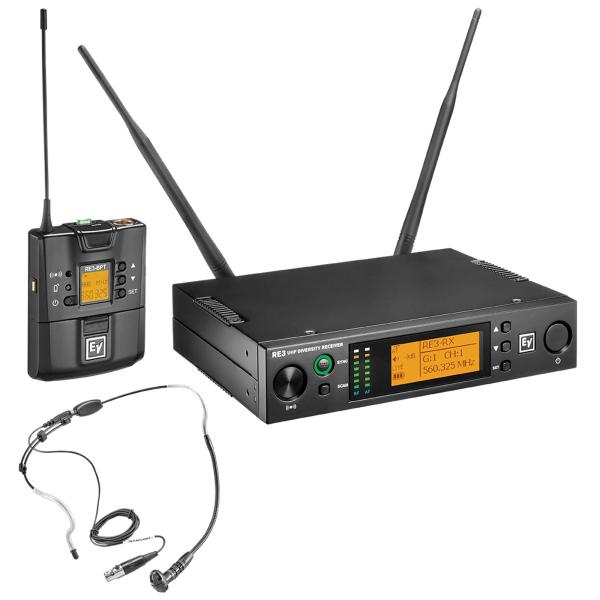

Electro-Voice UHF Handheld Wireless Set Featuring HW3 Supercardioid Headworn Microphone (5L Band)
SKU
RE3-BPHW-5L
$659.00
Item Backordered
Expected November 30, 2024
Only at IDJNOW
The HW3 is a general-purpose condenser supercardioid headworn vocal microphone which is ideal for presentations, vocal performances, and athletic instruction. Designed for comfort, robust durability and vocal clarity, it sustains rigorous use in a wide variety of applications while delivering crisp, clear, and balanced vocal sound. The sonic signature is crisp and natural, and the supercardioid polar pattern provides superb acoustic isolation and gain before feedback, making it an ideal microphone even in high SPL sound reinforcement applications. The adjustable headband is comfortable to wear, solidly built, and includes a flexible gooseneck boom and shockmounted microphone element, making it an ideal solution for performances and presentations where rigorous activity may be involved. The detachable cable securely connects to the headband with a threaded 2.5 mm plug, and its detachable design helps avoid cable damage during storage and transportation.
The RE3-RX is a professional rack-mountable, 1/2 space diversity receiver. Designed to function as the control center for an RE3 wireless set, it features frequency scanning and synchronizing, as well as full transmitter control settings which synchronize to a mated transmitter. UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR and unbalanced 1/4" TRS outputs. The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
Electro-Voice UHF Wireless Set with HW3 Headworn Microphone Features:
- Condenser supercardioid element delivers an acoustically-isolated, full-bodied sound.
- Robust headband fits comfortably and securely.
- Flexible gooseneck section makes positioning easy.
- Vibration-absorbing shock-mounted microphone head minimizes handling noise.
- Detachable cable makes storing and transporting simple and safe.
- RE3-BPT Bodypack Transmitter features a robust metal body.
- Sync function for easy frequency setup.
- Selectable low and high output power (band specific.)
- Up to 36 MHz tuning bandwidth (band specific.)
- Unique magnetic latch and lock for easy access to batteries.
- Diversity reception minimizes dropouts.
- Frequency scanning for selecting open frequencies.
- Sync function links transmitter to receiver for easy setup.
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation.
- Easy-to-read LCD display.
Electro-Voice RE3-BPHW-5L Specifications:
5L Band Details
Bandwidth limits (MHz): 488 – 524
Tuning bandwidth: 36 MHz
Selectable frequencies: 1440
Transmit output power (mW): 10 and 50
Coverage: Global
HW3 Headworn mic with TA4F
Element type: Self-biased condenser
Frequency response: 30 Hz - 18 kHz
Polar pattern: Supercardioid
Sensitivity: open circuitvoltage. 1 kHz: 0.5 mV/Pascal (-47 dBV/PA)
Maximum SPL: 130 dB SPL
Impedance: 1000 ohms
Power requirements: 3-9 VDC
Polarity: Positive pressure on diaphragm produces positive voltage at pin 2 relative to pin 1
Electrical contact pinouts: Pin #1 - Ground, shield, Pin #2 - Audio, Pin #3 - Bias voltage, Pin #4 - N/C
Dimensions (cable length): 45.28" (1150 mm)
Dimensions (boom length): 5.83" (148 mm)
Net weight: 1.35 oz (38.4 g)
Shipping weight: 5.93 oz (168 g)
Microphone connector: 4-pin mini plug
Head finish: Non-reflecting Black
Material: Black stainless steel paintedadjustable headband frame. Moldedback facing connector joint with 2.5mm jack for detachable cable, blacktextured PU. Black painted steel 100mm x 4.5 mm flexible mic positingtube. Integrated black TPR mic shockmount. Clear soft silicone tubing atear contact points.
RE3-BPT Bodypack Transmitter
Frequency oscillation mode: Phase-locked loop (PLL)
Available band names, tuning bandwidths, and carrier frequency ranges: 5L: 36 MHz (488-524 MHz)
Sync frequency: Ultrasonic
RF power output: (Frequency band specific) 5L (488-524MHz): Low 10mW / High; 50mW
Display by: LCD + LED
Function controls: Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
RF stability: <±10kHz@Fc
Modulation frequency shift: Wideband FM ±48kHz deviation
Harmonic radiation: <−50dBc
Input jack: 4-pin mini jack
Battery: 2 x AA alkaline battery or NiMH
rechargeable battery
Charging contacts: Yes
Finish: Black polyurethane paint
Dimensions (without antenna): Height: 3.2 in. (81.5mm), Width: 2.54 in. (64.5mm), Depth: 0.98 in. (25mm)
Net weight: 6.14 oz. (0.174 kg)
Gross weight: 8.29 oz. (0.235 kg)
RE3-RX Diversity Receiver
Frequency Oscillation Mode: Phase-locked loop (PLL)
Carrier Frequency Range: 470 - 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency: Ultrasonic 40 kHz
Diversity: Antenna diversity
Bandwidth: 36MHz
Signal/Noise Ratio: >100dB(A)
Total Harmonic Distortion (Thd): <0.6%@1kHz
Receiving Sensitivity: -81dBm for -12dB SINAD
Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Antenna Type: Detachable 1/2 wave with BNC connector
Antenna Booster Power: DC12 - 15V/100mA
Function Display By: LCD
Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Audio Frequency Output Level: Ref：±22.5kHz Dev@1kHz Tone
1/4" (6.3mm) Phone Jack：-10dBV
XLR Jack：-4dBV(Line), -24dBV(MIC)
Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced)
Squelch and noise muting: Noise muting and tone code locking
Output Ports: 1 x balanced XLRM jack 1 x unbalanced 1/4" TS (6.3mm) jack
Power Supply: DC12~15V/500mA
Finish: Black polyurethane paint
Dimensions: Width: 8.27 inch (210mm)
Height: (with feet attached) 1.85 inch (47mm)
Height: (without feet attached) 1.73 inch (44mm)
Depth: (including antenna jack) 6.89 inch (175mm)
Depth: (not including antenna jack) 6.1 inch (155mm)
Net Weight: 2.71 lbs [1.23 kg]
Gross Weight: 3.28 lbs [1.49 kg]
(1) HW3 Supercardioid Headworn Microphone
(1) RE3-BPT Bodypack Transmitter
(1) RE3-RX Diversity Receiver
(2) Receiver antennas
(1) Universal power supply
(2) AA batteries
(1) Set of Receiver rack mounting hardware
(1) Owner's manual
(1) Documentation packet
(1) Declaration of conformity
