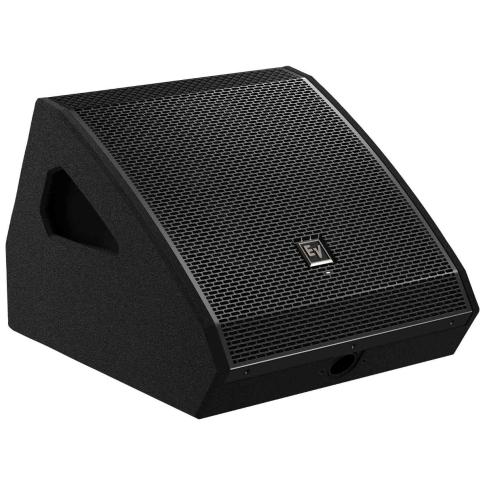

Electro-Voice PXM-12MP 12" Powered Black Coaxial Monitor - Open Box Mint
SKU #: PXM-12MP-IO1
Reg.
$959.00
Now
$858.40
Reg.
As low as $86/mo or 0% APR with
In Stock & Ready to Ship
Most orders placed by 2pm ET ship same day (business days)
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews>
30-Day Returns
Don't Like it? Return it.
The PXM-12MP is a dedicated portable loudspeaker system designed to provide musicians, DJs, and audio engineers convenient and powerful monitoring and playback functionality. By providing a symmetrical 90° x 90° coverage pattern facilitated by a 12" / 1.75" coaxial driver, users can experience solid, consistent coverage, which ensures that their mix can be heard clearly without constraining them to a limited part of the stage. The 55° monitoring angle enables users to stand as close or as far away from the system as necessary without sacrificing audio intelligibility. An integrated pole mount at the front allows for additional applications such fills, delays, or a main PA. With a dedicated subwoofer and the adjustable subwoofer matching LPFs of the PXM-12MP, a full 3-way system can be configured to create an extremely compact main PA.
The integrated mixing section provides 3 input channels: 2x XLR / ¼" combination connectors and a stereo RCA input. The DSP offers 4 EQ presets, high and low shelving, parametric midrange EQs, adjustable low-cut filters, a tunable feedback notch filter, and recallable user settings. The Class-D 700W amplifier provides enough power to satisfy the most demanding monitoring requirements, and system protection and limitation designed by Electro-Voice ensures that the PXM-12MP will play loudly and consistently even at the edge of its specifications.
The integrated mixing section provides 3 input channels: 2x XLR / ¼" combination connectors and a stereo RCA input. The DSP offers 4 EQ presets, high and low shelving, parametric midrange EQs, adjustable low-cut filters, a tunable feedback notch filter, and recallable user settings. The Class-D 700W amplifier provides enough power to satisfy the most demanding monitoring requirements, and system protection and limitation designed by Electro-Voice ensures that the PXM-12MP will play loudly and consistently even at the edge of its specifications.
Electro-Voice PXM-12MP 12" Black Monitor Features:
- Multi-functional monitoring system that is useable as a floor wedge or as a mains PA.
- Acoustically optimized 55° monitor floor angle.
- QuickSmartDSP features best-in-class processing.
- Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
- GUITARCAB setting makes it easy for guitarists to dial in their signature tone.
- 700 W Class-D power amplifier designed by Dynacord delivers up to 129 dB peak SPL utilizing transducers by EV.
- System reliability verified with over 500 hours of abuse and endurance testing.
Electro-Voice PXM-12MP Product Specifications:
| Frequency response (-3 dB) | 64 Hz - 20 kHz |
| Frequency range (-10 dB) | 53 Hz - 20 kHz |
| Monitor Angle | 55° |
| Maximum SPL | 129 dB |
| Coverage (H x V) | 90° x 90° |
| Amplifier Rating | 700 W |
| LF Channel Rating | 500 W |
| HF Channel Rating | 200 W |
| Crossover frequency | 1.6 kHz |
| Transducer | CXCA2128-1NA 12" / 1.75" 2-way coaxial |
| Connectors | 2x XLR/TRS combo input 1x Stereo RCA input 1x XLR THRU input |
| Enclosure | 15 mm Plywood |
| Grille | Steel with black powder coat |
| Color | Black |
| Dimensions (H x W x D) mm (in) | 334 mm x 409 mm x 484 mm (13.1 in x 16.1 in x 19.0 in) |
| Net weight | 13.5 kg (29.8 lb) |
| Shipping weight | 15.6 kg (34.3 lb) |
| Power consumption | 100 - 240 V AC, 50 - 60 Hz, 0.8 - 0.5 A |
Each PXM-12MP Retail Box Includes:
(1) Electro-Voice PXM-12MP 12" Powered Black Coaxial Monitor
*Please note: Customer return/Store display items are not brand new and may have minor imperfections. Due to the nature of a "Customer return item" we cannot guarantee that all box components listed, will be included. Because of this, the item is discounted accordingly and sold at close to cost or below. IDJNOW does guarantee that you will receive all pertinent components for the item to function in Its most basic form (usually just a power cord) and guarantees the item to be free from defect for 30 days from the day you receive it.
