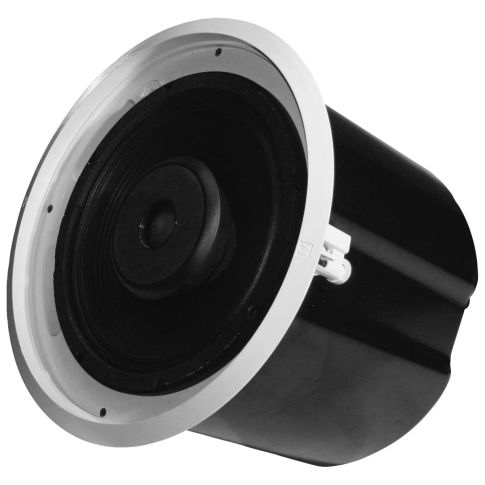

Electro-Voice EVID C12.2 12" 2-Way Coaxial Ceiling Loudspeaker
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
No matter what the installation calls for the new EVID ceiling speaker line can fill the need. Each model is unique and designed to meet the toughest "problem" job specifications. Sonically superior and esthetically pleasing, the EVID ceiling speaker line has no match. From the compact, powerful C4.2 to the exclusive waveguide coupled design of the C8.2HC (patent pending) for high ceiling environments; the EVID ceiling line will solve any installation requirement. All models meet NFPA/UL requirements for air handling spaces so they will be approved for any specification including emergency notification applications. The EVID ceiling speaker line was designed with the contractor and listener in mind. Great sound, simple installation, and exceptional value are all part of every model.
Electro-Voice EVID C12.2 12" Coaxial Ceiling Speaker Features:
- Full-range power for high ceilings, large spaces.
- High sensitivity, high power-handling.
- Integrated transformer with automatic saturation compensation for distortion free 70 V, 100 V, or 8 Ω use.
- Front-panel mode/wattage selector.
- White semi-gloss perforated grille.
- Heavy-gauge steel enclosure in black.
- 3/8-inch threaded-rod mount points for open ceilings.
- Safe, easy installation with included tile bridge and mounting ring.
- Complete package, requires no additional accessories.
Electro-Voice EVID C12.2 Product Specifications:
| HF Transducer | 1-inch (25 mm) (coax) |
| Speaker Type | Ported cabinet, internally damped two-way (passive crossover included) |
| Frequency Response (-3 dB)¹ | 65 - 20,000Hz |
| Max. SPL/1m (calc)² | 126dB (Half Space) |
| LF Transducer | 12-inch EVID 920-8B (coax) |
| System Power Handling (Continuous/Program/Peak) | 100Watts |
| Power Rating | 64W |
| Crossover Frequency | 2000Hz |
| Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel |
| Grille | Powder-coated steel |
| Available Color | White (paintable surface) (Paintable Surface) |
| Sensitivity 1 W/1 m | 100dB |
| Height | 13.11" (333mm) |
| Weight Net | 27.12lbs (12.3kg) |
| Transformer Taps (Transformer Version Only) | 4 (70 V only), 8, 16, 32, 64 W ASC protected |
| Input Formats | 8ω / 70V / 100V |
| Coverage (Nominal -6 dB) | 90 (average) |
| Mounting Systems | Integrated 3-point toggle anchors |
| Diameter (Max) | 16.3" (414mm) |
Each EVID C12.2 Retail Box Includes:
(1) Electro-Voice EVID C12.2 12" 2-Way Coaxial Ceiling Loudspeaker System
(1) Grille
(1) Owner's Manual
(1) Terminal Connector
(1) Warranty Card
(1) Ceiling Cutout Template
(1) Paint Shield
(2) Tile Rails
(1) C-Ring Support
(2) Support Ring Screws
